DISASSEMBLY and REPLACEMENT

4 - 129

(6) Release a harness from a harness clamp

and disconnect 1 connector.

(7) Remove 2 screws and take off the toner

motor assembly.

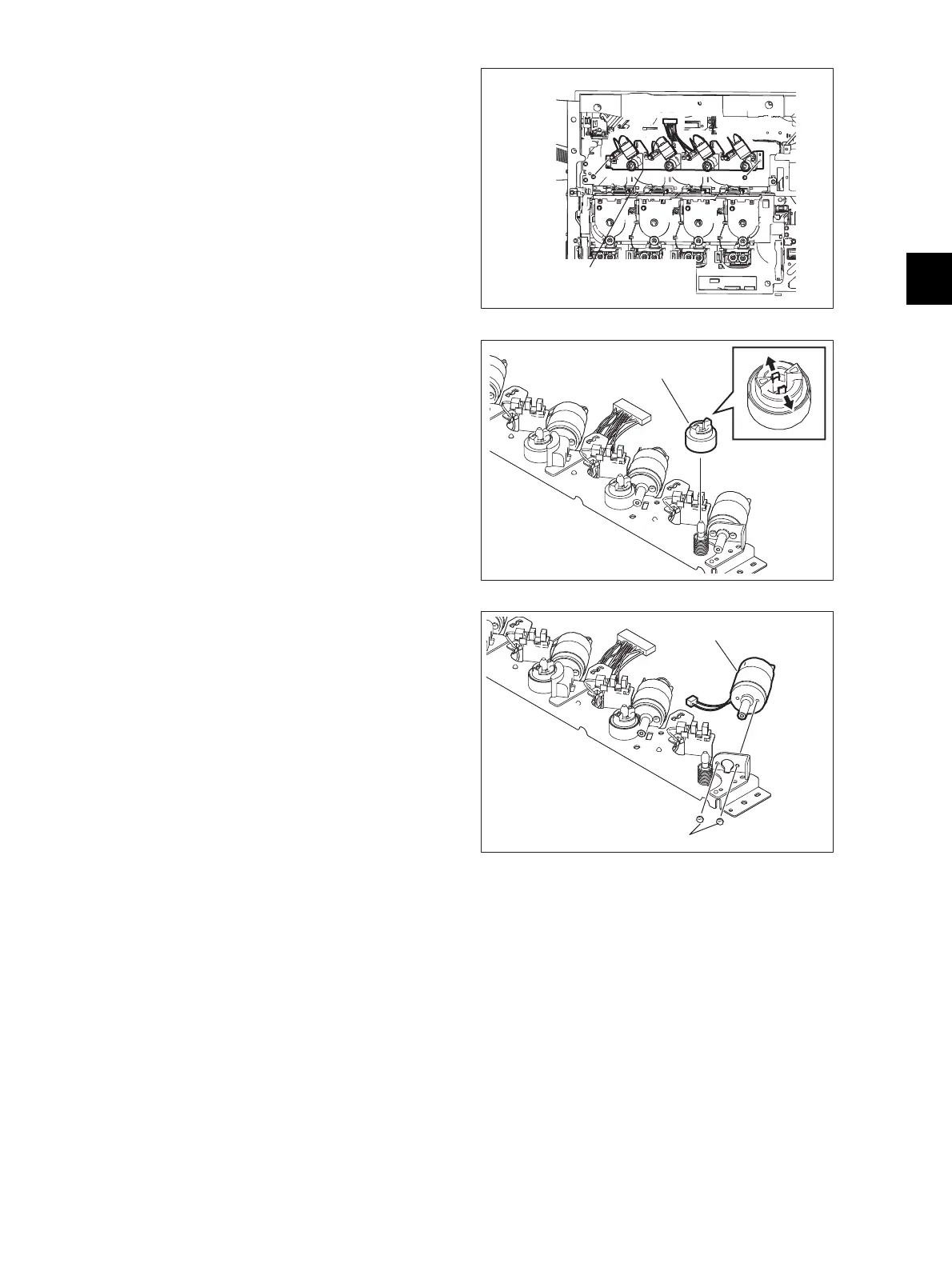

Fig. 4-377

(8) Release 2 hooks and remove the gear.

Fig. 4-378

(9) Disconnect 1 connector and remove 2

screws to take off each toner motor.

Notes:

Pay attention to the size (length) of the

screws. If incorrect ones are used, the motor

could be damaged.

Fig. 4-379

Toner motor assembly

Gear

Toner motor

Screw

Service Manual1
