DISASSEMBLY and REPLACEMENT
4 - 108

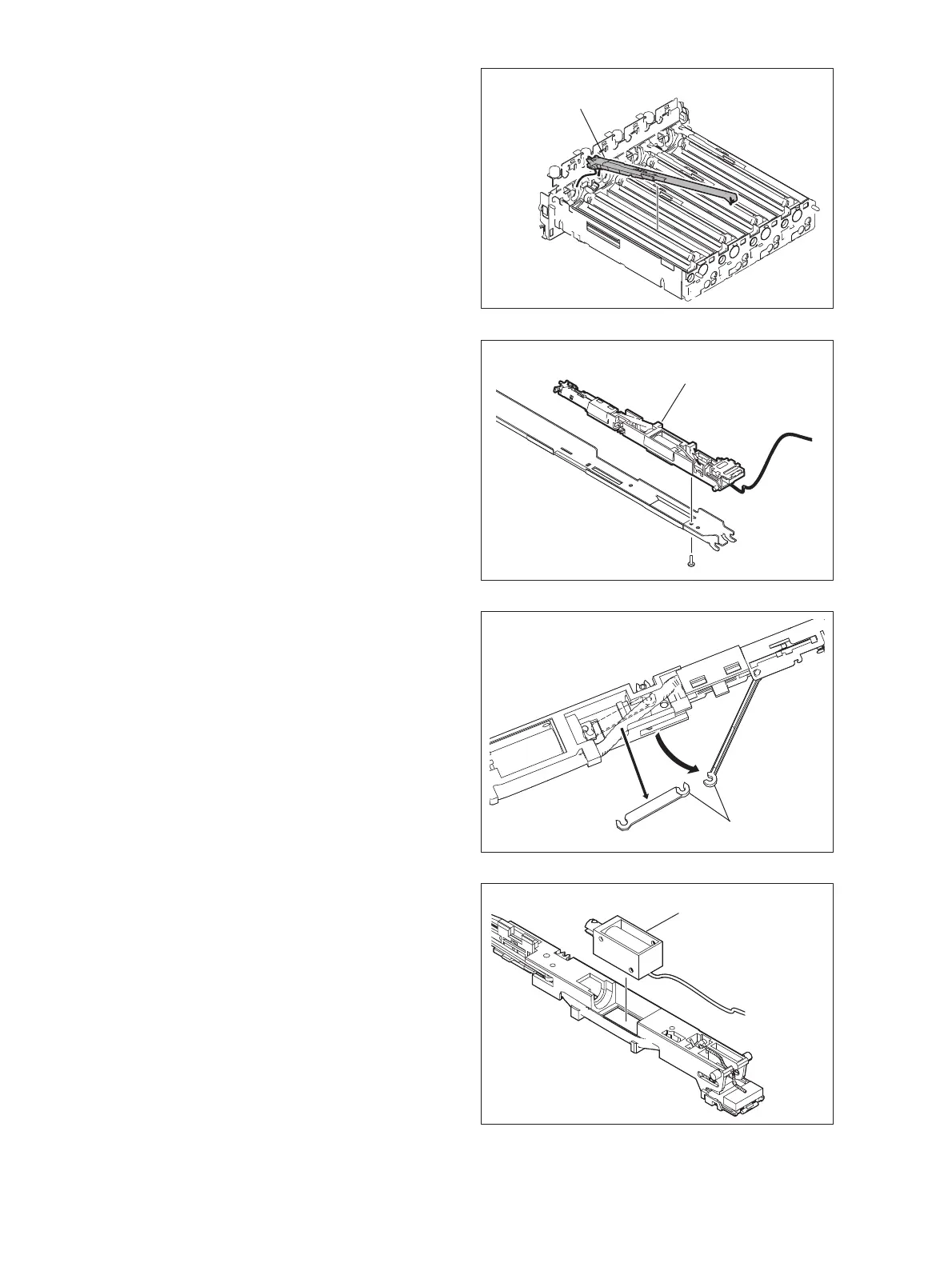

(3) Release 1 hook and remove a stay.
Notes:
Hold the upper side of the stay. Avoid
touching its shutter.
Fig. 4-314
(4) Remove 1 screw and take off the solenoid
holder by sliding it.
Fig. 4-315
(5) Disconnect the joint of the link arm and then
remove the link arm from the shutter.
Fig. 4-316
(6) Release the harness from the harness holder
and then take off the V0 sensor shutter
solenoid.
Fig. 4-317
Stay
Solenoid holder
Link arm
V0 sensor shutter solenoid
