4
© 2011 - 2015 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C
DISASSEMBLY and REPLACEMENT
4 - 181

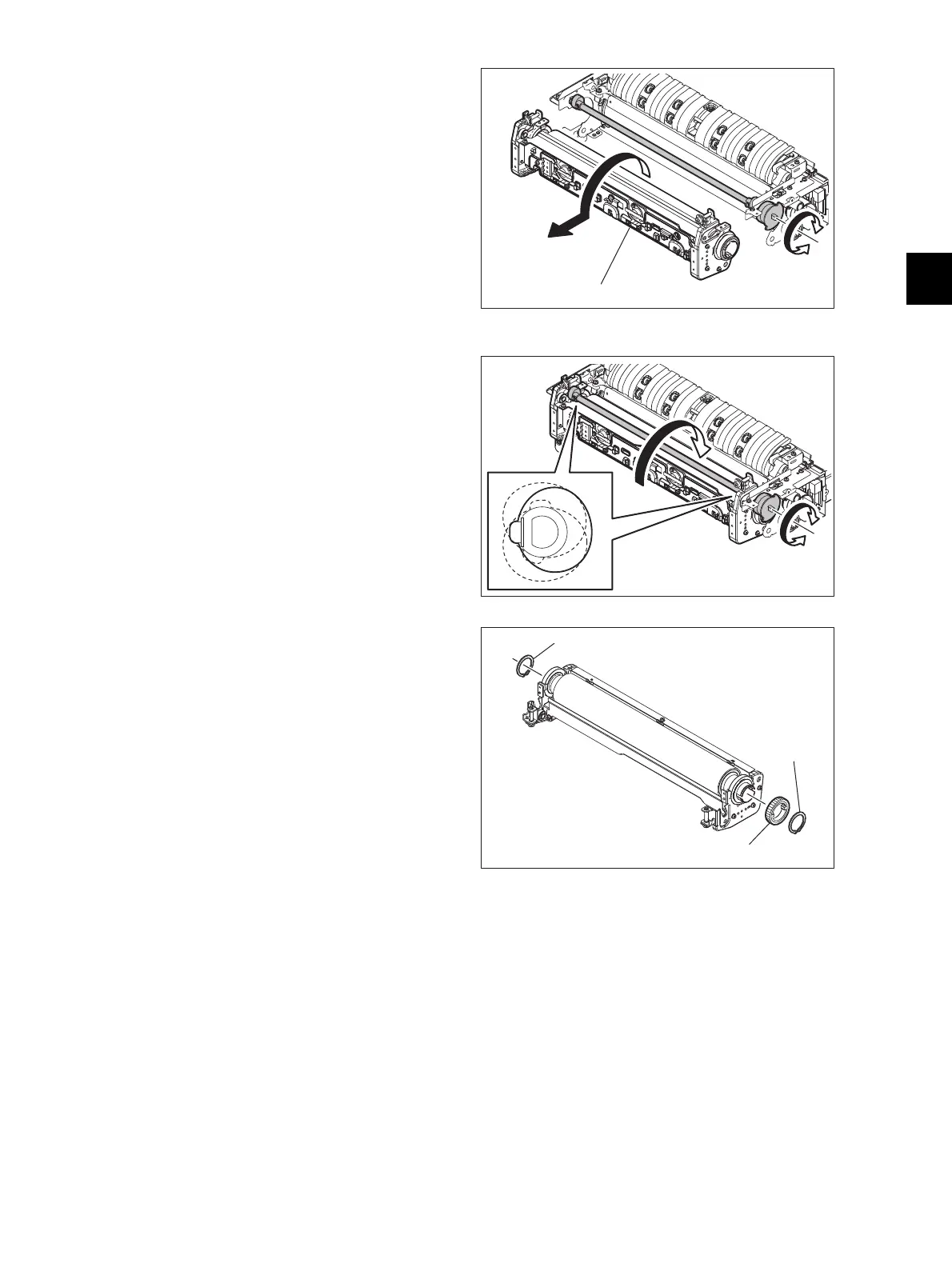

(13) Rotate the releasing cam so that the
pressure roller and the fuser belt do not
contact, and then take off the pressure roller
frame unit.
Notes:
When installing, rotate the cam as shown in
the figure and then install the pressure roller
frame unit.
Fig. 4-522
Fig. 4-523
(14) Remove the C-ring and the gear from both
sides of the pressure roller.
Fig. 4-524
Pressure roller frame unit
C-ring
Gear
C-ring
