DISASSEMBLY and REPLACEMENT

4 - 304

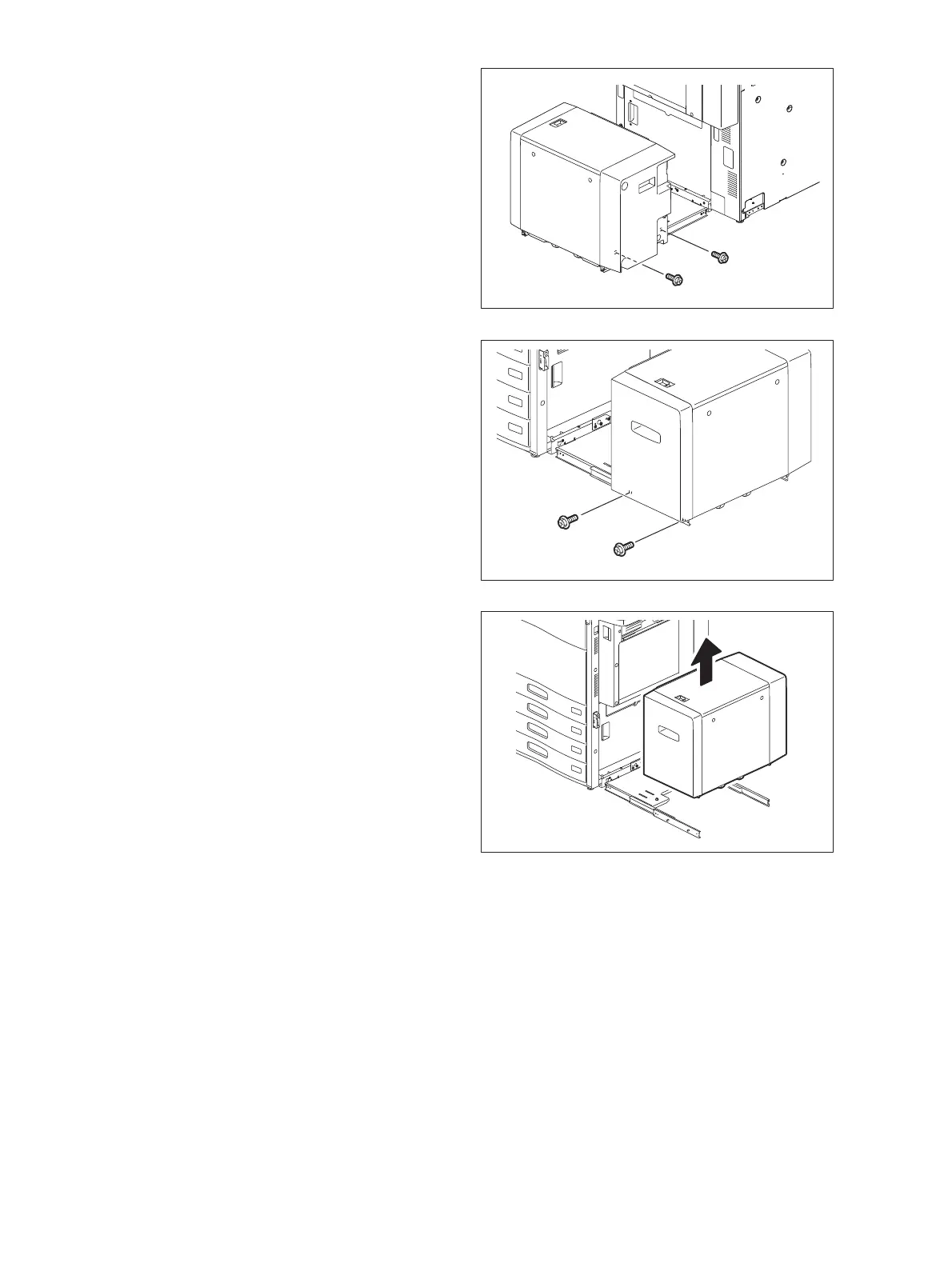

(5) Remove 2 fixing screws on the rear side.

Fig. 4-4

(6) Remove 2 fixing screws on the front side.

Fig. 4-5

(7) Lift the Large Capacity Feeder (LCF) and

take it off from the slide rail.

Fig. 4-6
