SETTING ADJUSTMENT

6 - 107

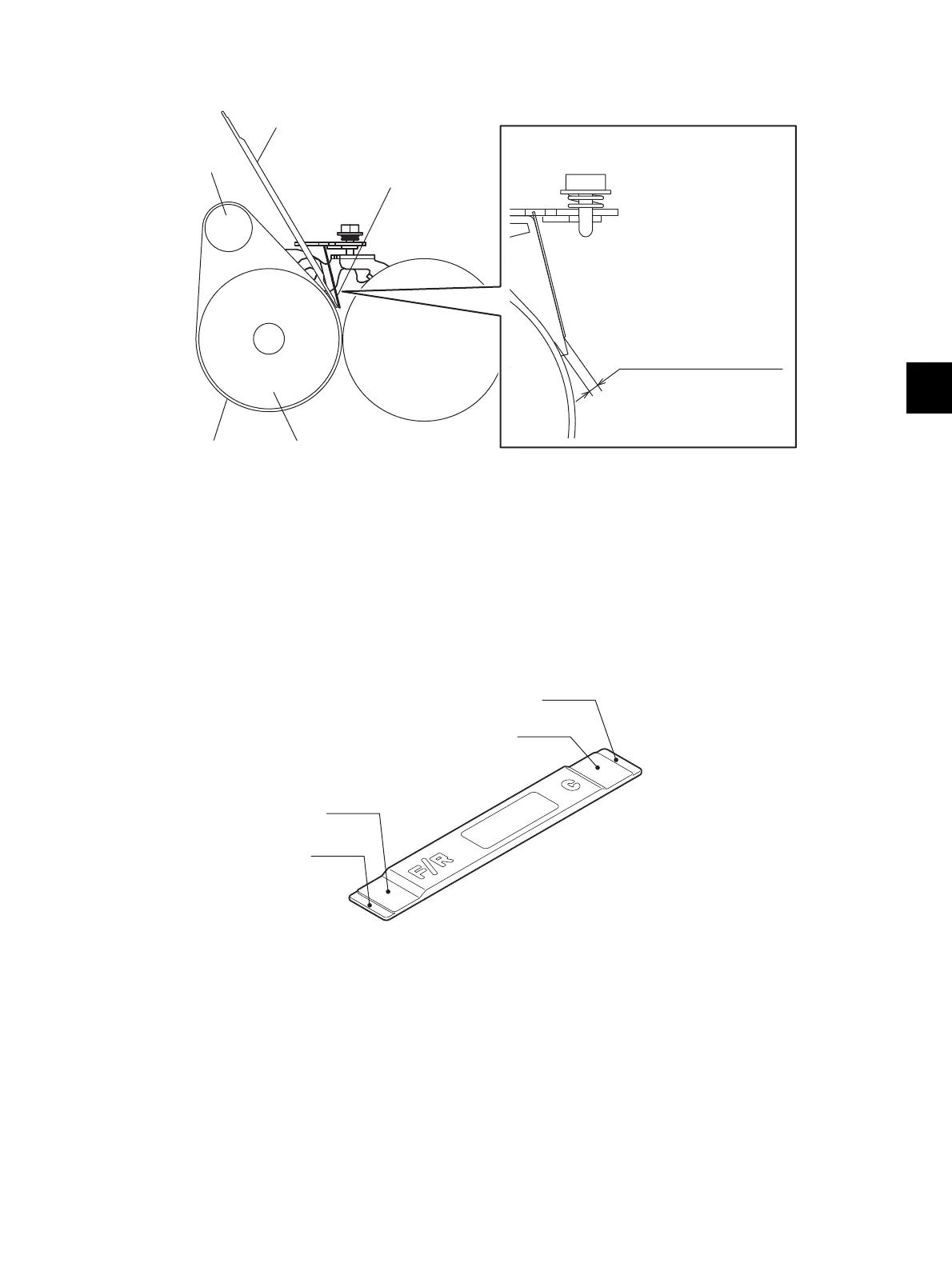

Gap to be confirmed

Fig.6-73

[1] Heat pipe roller

[2] Fuser belt

[3] Fuser roller

[4] Separation plate gap confirmation jig

[5] Separation plate

Gap confirmation jig

• Separation plate gap confirmation jig (JIG-FU-SEP-BP)

Fig.6-74

[1]

[2]

[3]

[4]

Side: 0.5 - 0.8 mm

Center: 0.7 - 1.0 mm

[5]

0.5mm

0.8mm

1.0mm

0.7mm
