Toshiba e-STUDIO 6550C e-STUDIO 5560C User Manual

7
© 2011 - 2015 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C
PREVENTIVE MAINTENANCE (PM)
7 - 51

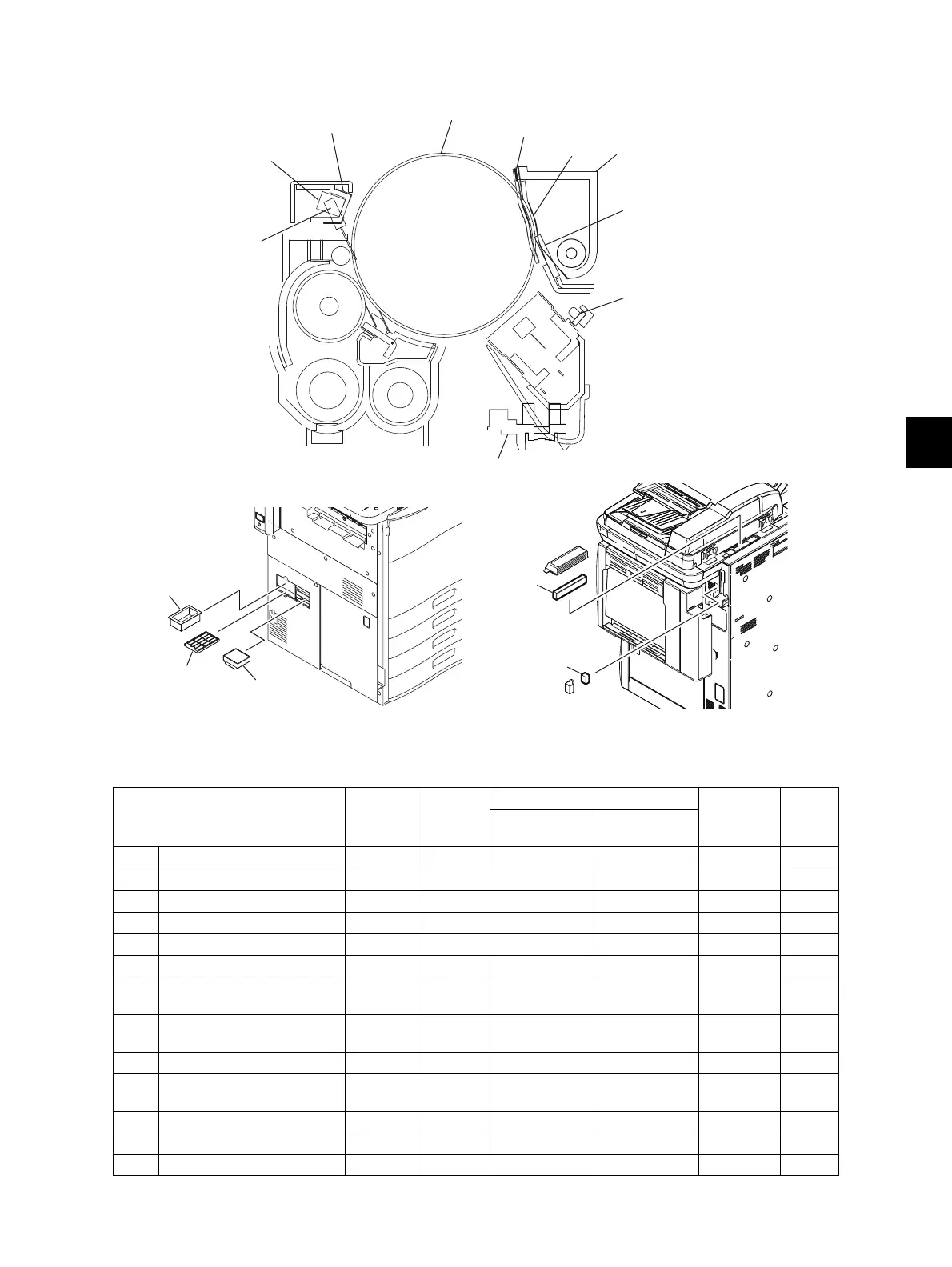

7.7.6 Drum / Cleaner unit / Filter
Fig. 7-56
Items to check Cleaning
Lubrica
tion/
Coating
Replacement
Operation
check
Parts
list
<P-I>
(x 1,000
sheets)
(x 1,000 drive
counts)
F1 Whole cleaner unit B
F2 Drum 248/275/303 314 203-1
F3 Drum cleaning blade 248/275/303 314 63-21
F4 Blade side seal R3 R3 63-23
F5 Recovery blade B R3 R3 63-25
F6 Drum thermistor B 59-27
F7 Drum surface potential
(V0) sensor
B 59-22
F8 Drum surface potential
(V0) sensor shutter
B 59-24
F9 Discharge LED B 64-20
F10 Needle electrode cleaner
detection sensor
B59-4
F11 Ozone filter-1 248/275/303 314 49-4
F12 Ozone filter-2 248/275/303 244 49-14
F13 Toner filter 248/275/303 244 49-11
F1
F7
F3
F2
F6
F8
F9
F10
F5
F4
F12
F11
F13
F14
F15
