April 2017
7-128
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
Block Schematic Diagrams (BSDs)
Launch Issue
Wiring Data

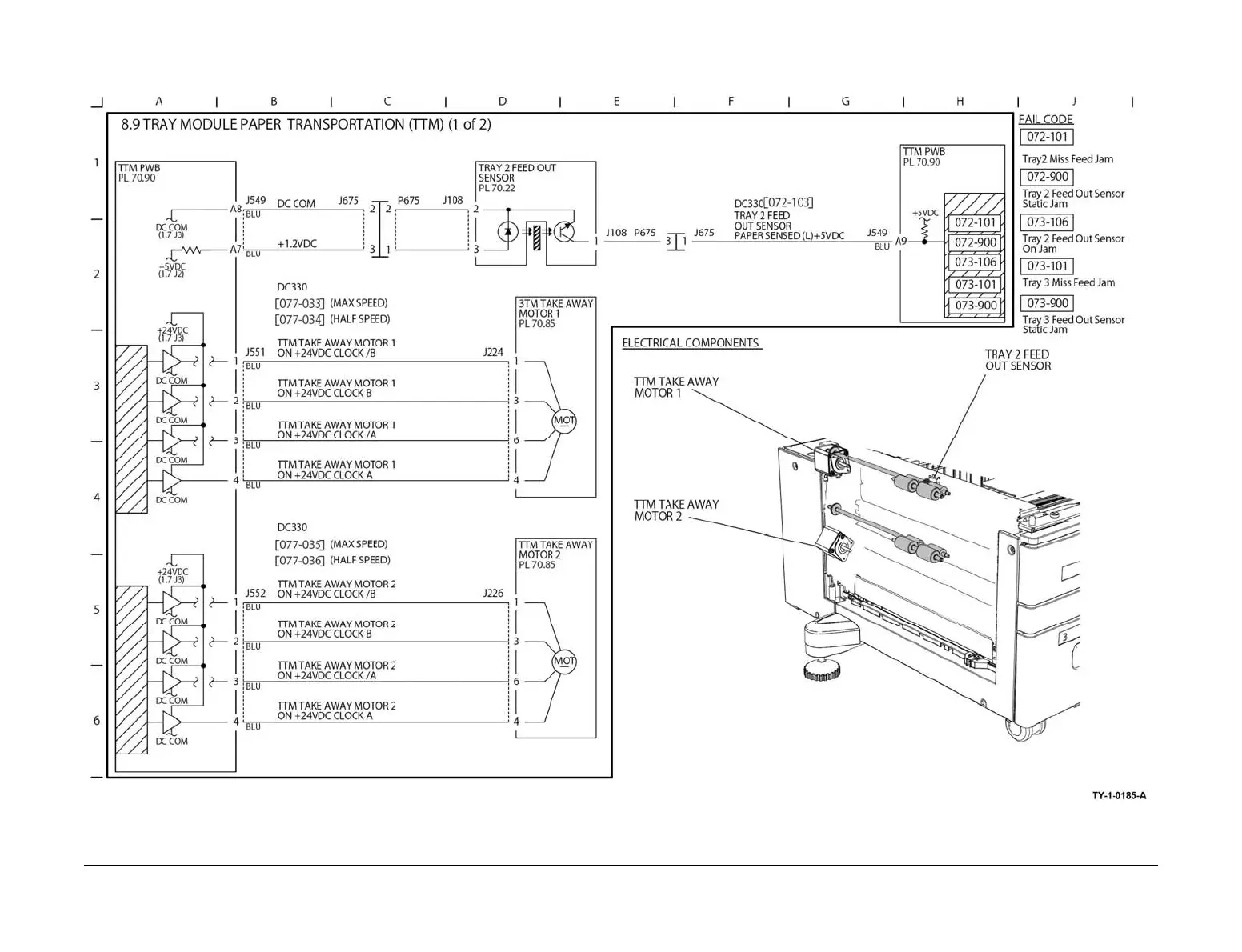

BSD 8.9 Tray Module Paper Transportation (TTM) (1 of 2)
Figure 72 BSD 8.9
