April 2017
7-134
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
Block Schematic Diagrams (BSDs)
Launch Issue
Wiring Data
BSD 9.5 Toner Dispense Control

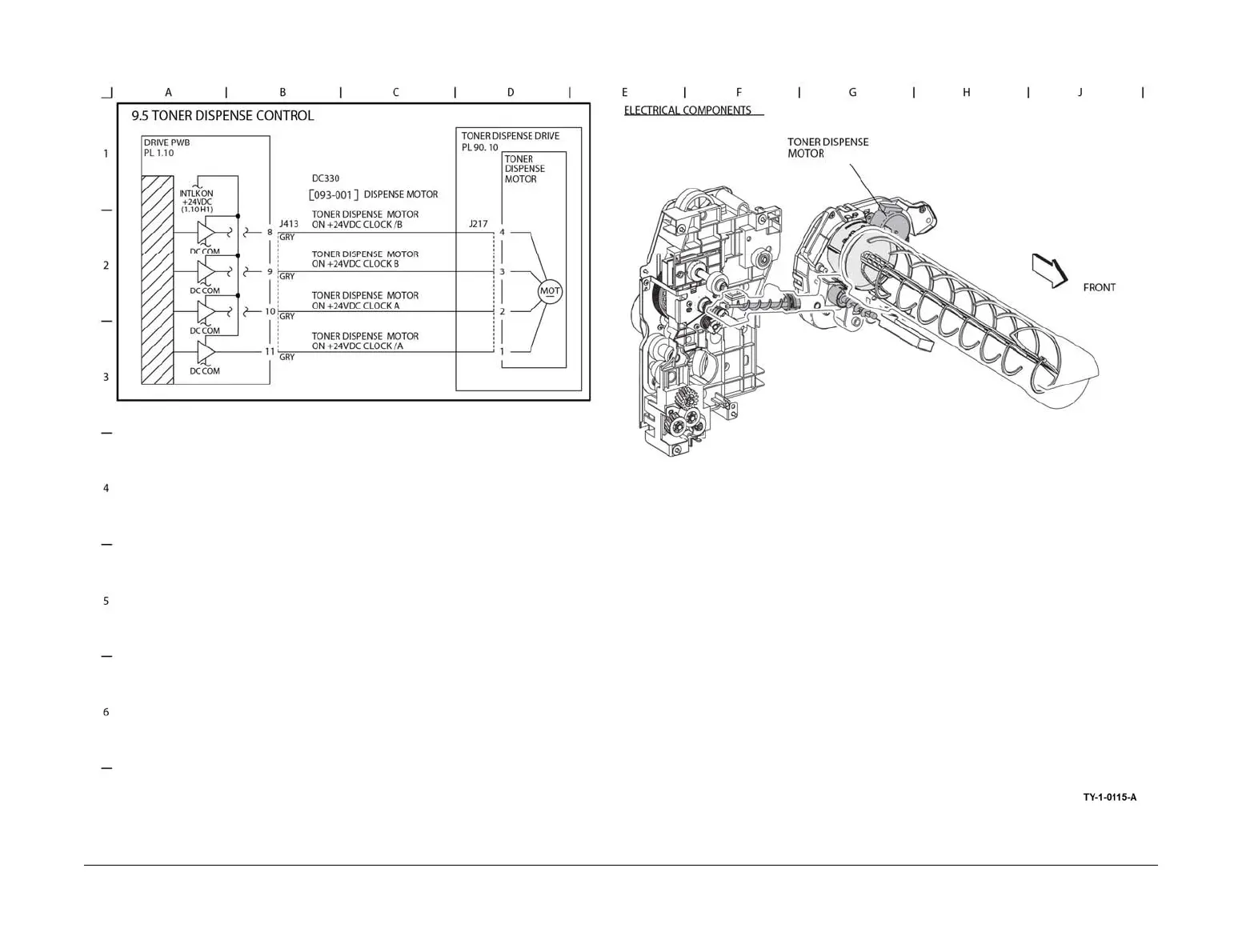

Figure 78 BSD 9.5
