April 2017
7-140
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
Block Schematic Diagrams (BSDs)
Launch Issue
Wiring Data

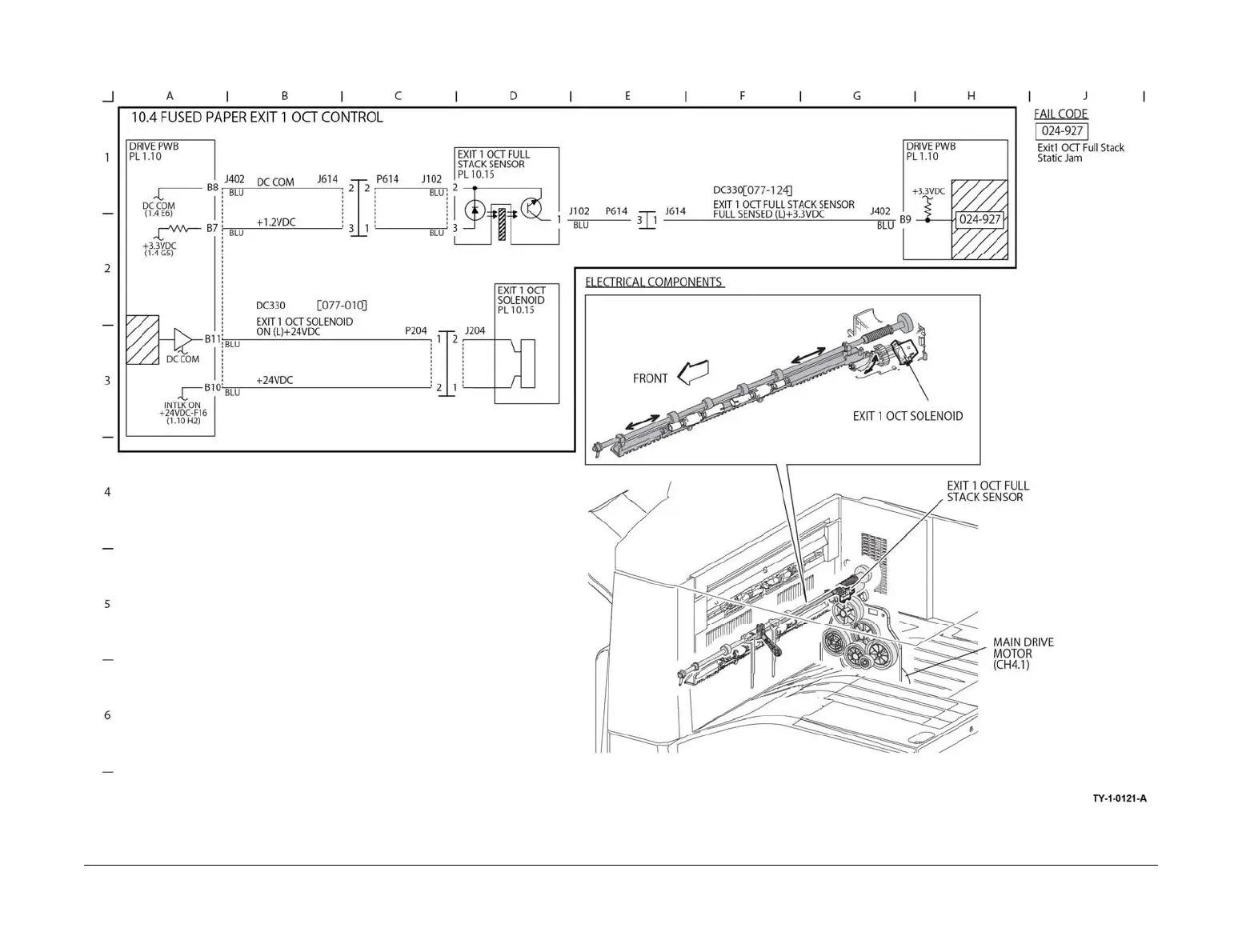

BSD 10.4 Fused Paper Exit 1 OCT Control
Figure 84 BSD 10.4
