April 2017
7-156
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
Block Schematic Diagrams (BSDs)
Launch Issue
Wiring Data

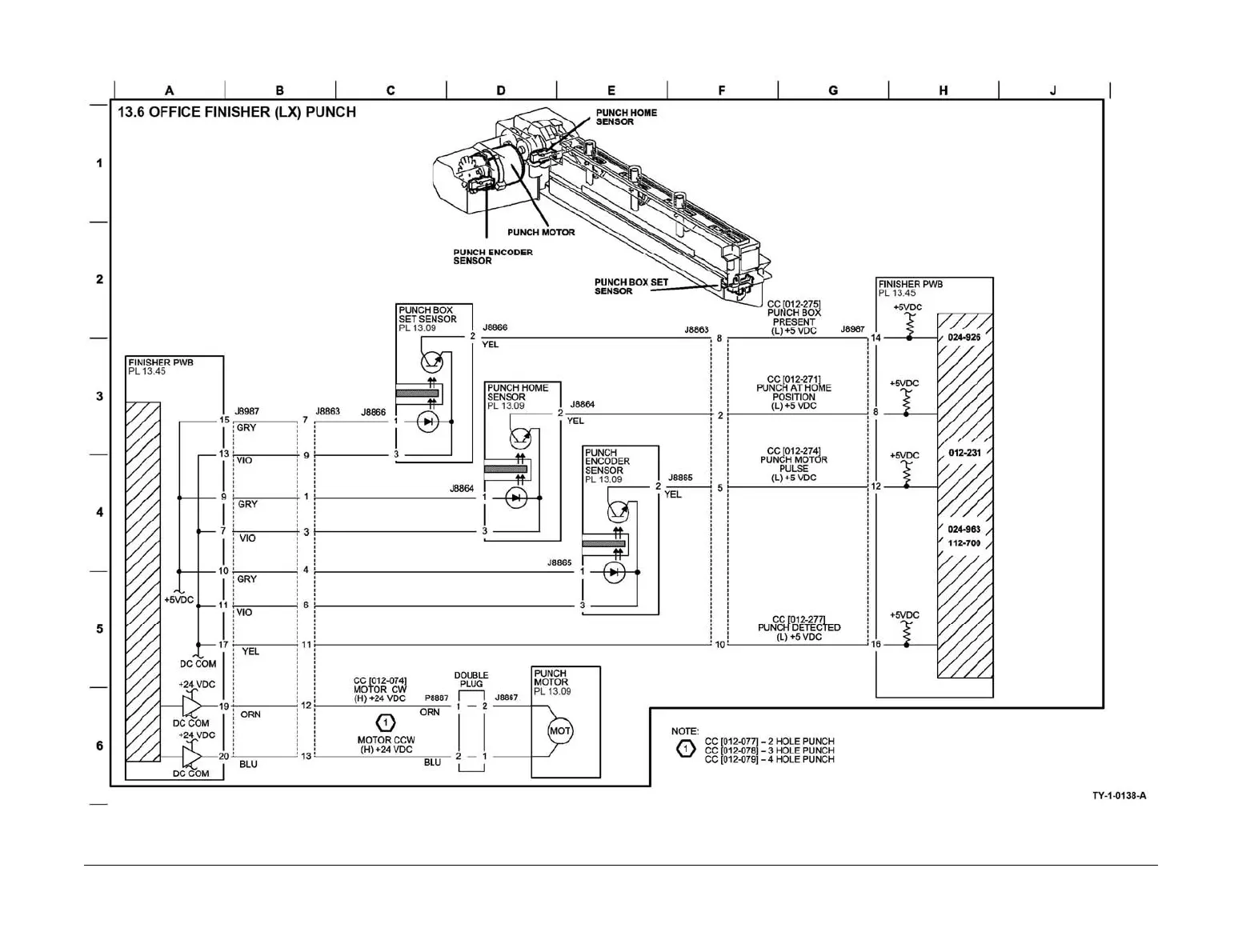

BSD 13.6 Office Finisher LX Punch
Figure 100 BSD 13.6
