April 2017
7-157
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
Block Schematic Diagrams (BSDs)
Wiring Data
Launch Issue

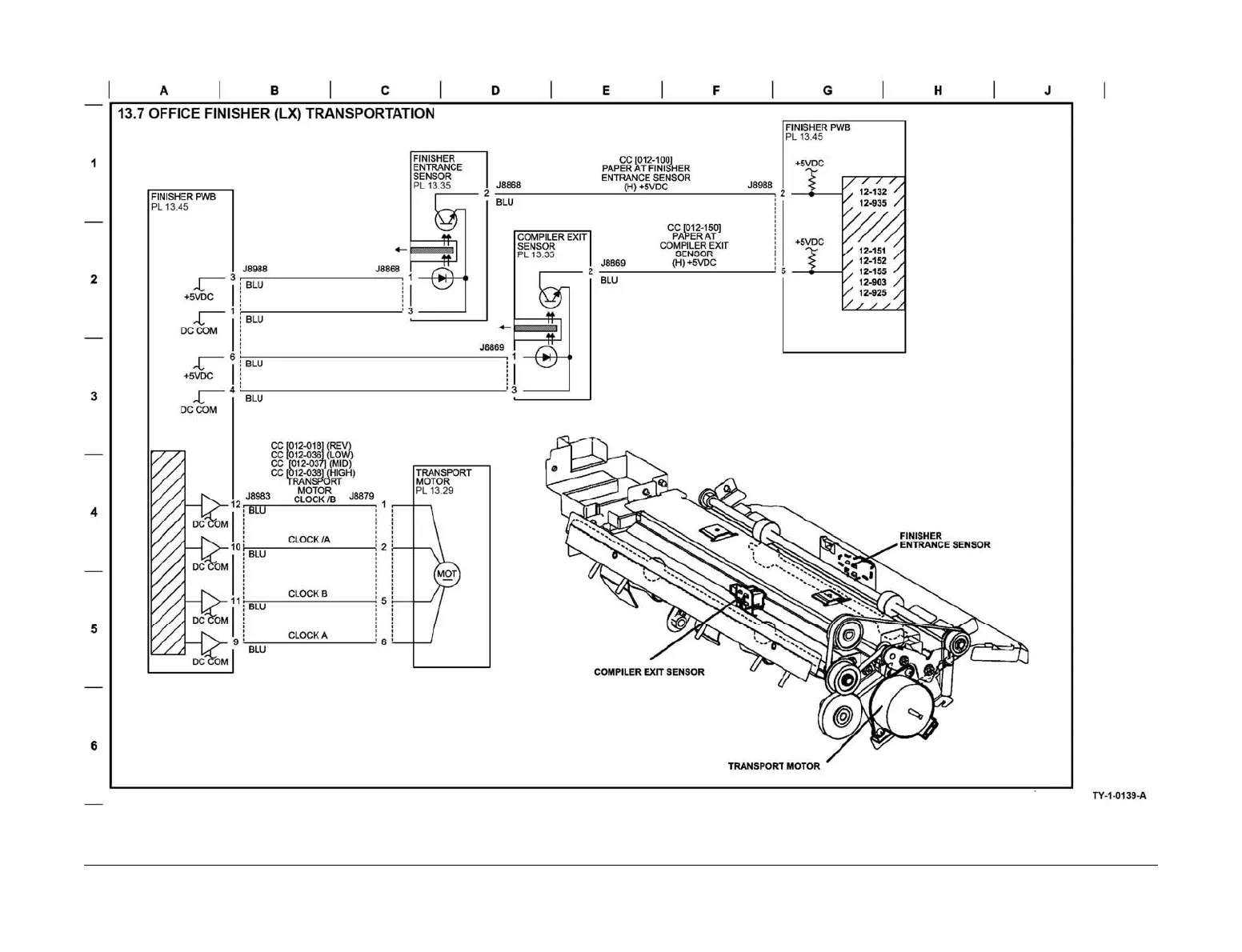

BSD 13.7 Office Finisher LX Transportation
Figure 101 BSD 13.7
