Xerox VersaLink B7025 Service Manual

April 2017
8-15
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
Product Technical Overview
Launch Issue

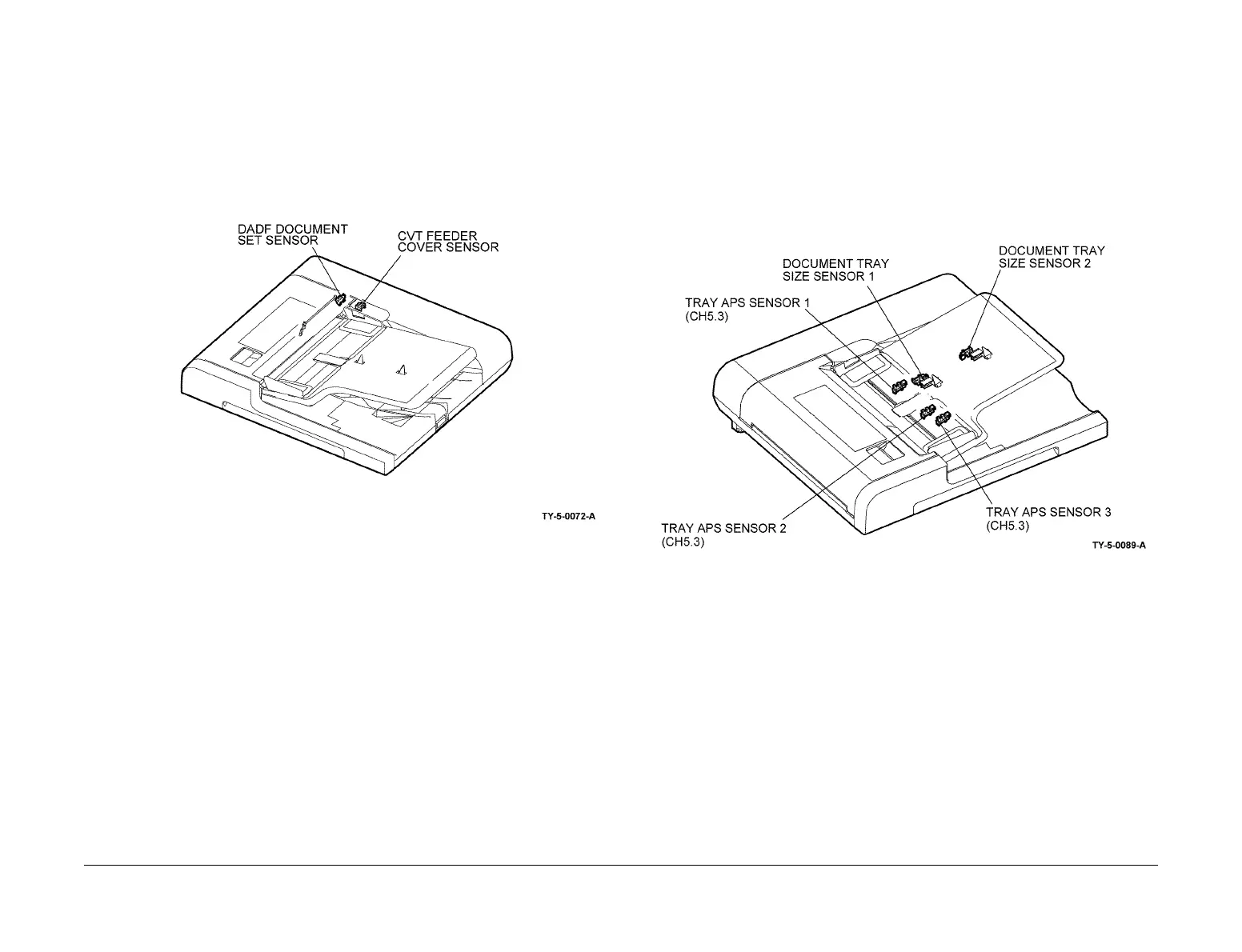

Document Set Sensing
When a document is placed in the document tray, it activates the document sensor, PL 5.30
Item 7.
The CVT feeder cover sensor detects that the upper feeder assembly, PL 5.10 Item 10, is
closed. Refer to Figure 3.
Figure 3 Document set sensor
Tray APS Sensors and Size Sensors
The document guides move a rack and gear that actuates 3 sensors (tray APS sensors 1, 2
and 3) within the DADF tray assembly. Together these sensors detect the document width (in
the cross process direction). The length of the document (in the process direction) is deter
-
mined by the on or off states of DADF tray size sensor 1 and 2. Refer to PL 5.55.
NOTE: The tray APS sensors should not be confused with the APS sensors in the paper path.
Refer to APS Sensors.
When a document stack of different sizes is set, the document size is detected according to the
combination of the maximum width and length of the documents.
Figure 4 Tray APS sensors and size sensors

Xerox VersaLink B7025 Specifications

General

Print Speed	Up to 25 ppm
Print Resolution	Up to 1200 x 1200 dpi
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Control Panel	5-inch color touchscreen
Duplex Printing	Standard
Processor	1.05 GHz
Memory	2 GB
Paper Output	250 sheets
Fax Speed	33.6 kbps
Fax Transmission Speed	3 seconds per page
Display	5-inch color touchscreen
Connectivity	Ethernet 10/100/1000 Base-T, High-speed USB 3.0
Functions	Print, Copy, Scan
Media Sizes Supported	A4, A5, A6, B5
Printer Type	Laser
Copy Speed	Up to 25 ppm
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android
