Xerox VersaLink B7025 Service Manual

April 2017
8-16
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
Launch Issue
Product Technical Overview
APS Sensors
DADF APS sensors 1, 2 and 3 detect the document width in the cross process direction, PL
5.50 Item 8. These sensors monitor the document width (cross process direction) as the docu
-
ments passes along the document path. They allow multiple sized documents to be processed
in a single job. Refer to Figure 5
NOTE: The APS sensors should not be confused with the tray APS sensors. Refer to Tray
APS Sensors and Size Sensors.

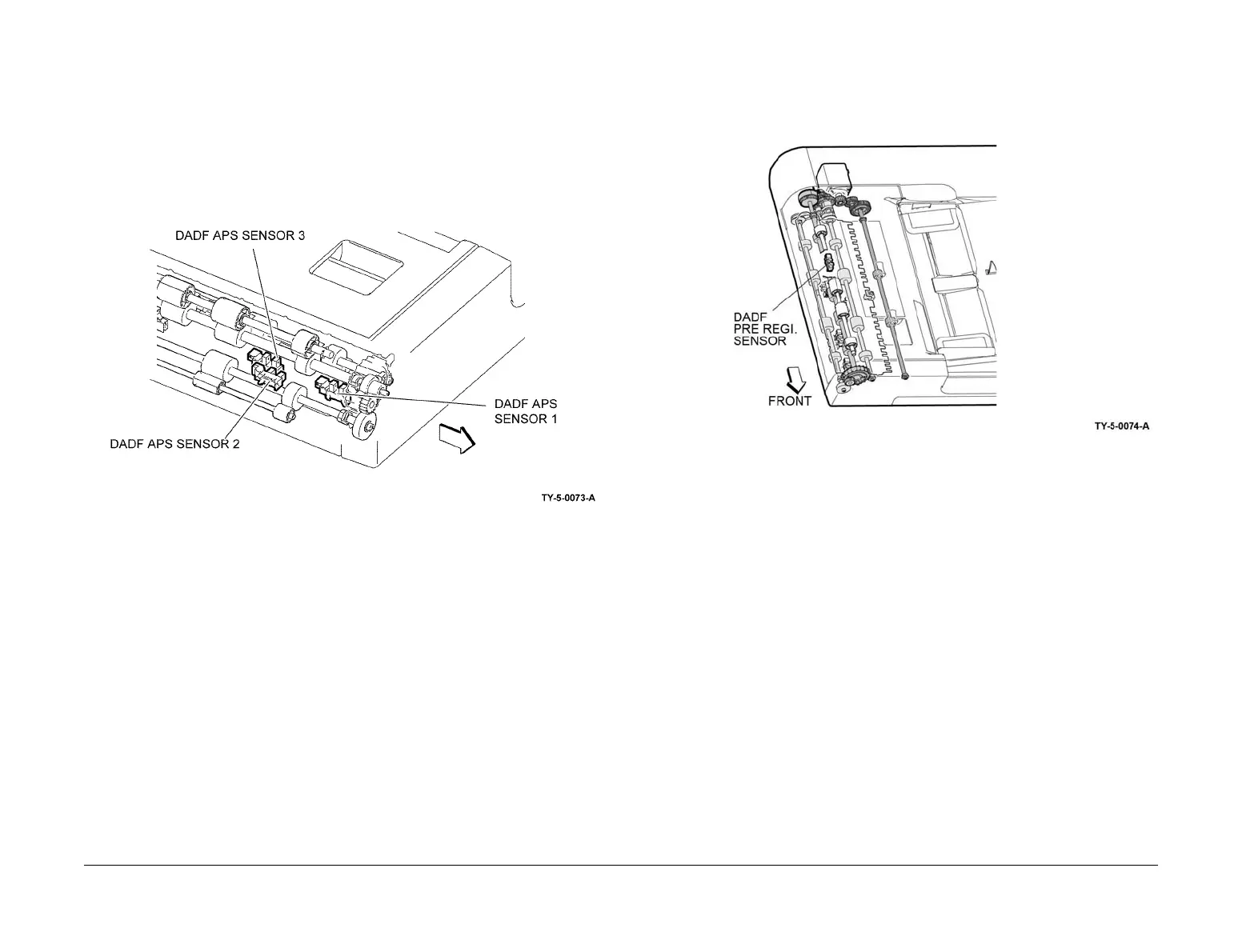

Figure 5 DADF APS sensors
Pre Registration Sensor
The DADF pre-registration sensor, PL 5.70 Item 3, is installed immediately before the take-
away roll. It detects that the preceding sheet has left the takeaway roll. Refer to Figure 6.
Figure 6 Pre-registration sensor

Xerox VersaLink B7025 Specifications

General

Print Speed	Up to 25 ppm
Print Resolution	Up to 1200 x 1200 dpi
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Control Panel	5-inch color touchscreen
Duplex Printing	Standard
Processor	1.05 GHz
Memory	2 GB
Paper Output	250 sheets
Fax Speed	33.6 kbps
Fax Transmission Speed	3 seconds per page
Display	5-inch color touchscreen
Connectivity	Ethernet 10/100/1000 Base-T, High-speed USB 3.0
Functions	Print, Copy, Scan
Media Sizes Supported	A4, A5, A6, B5
Printer Type	Laser
Copy Speed	Up to 25 ppm
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android
