Xerox VersaLink B7025 Service Manual

April 2017
8-17
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
Product Technical Overview
Launch Issue
Registration Sensor and Invert Sensor
The DADF registration sensor is installed before the registration roll. It detects that the preced-
ing sheet has left the registration roll, triggering the pre-registration of the next.
The registration sensor and the pre-registration sensor provide jam detection as the document
feeds through the document path.
The DADF invert sensor is installed immediately after the out roll. It detects the ejection of a
sheet and provides timing data for two sided jobs. Refer to Figure 7.

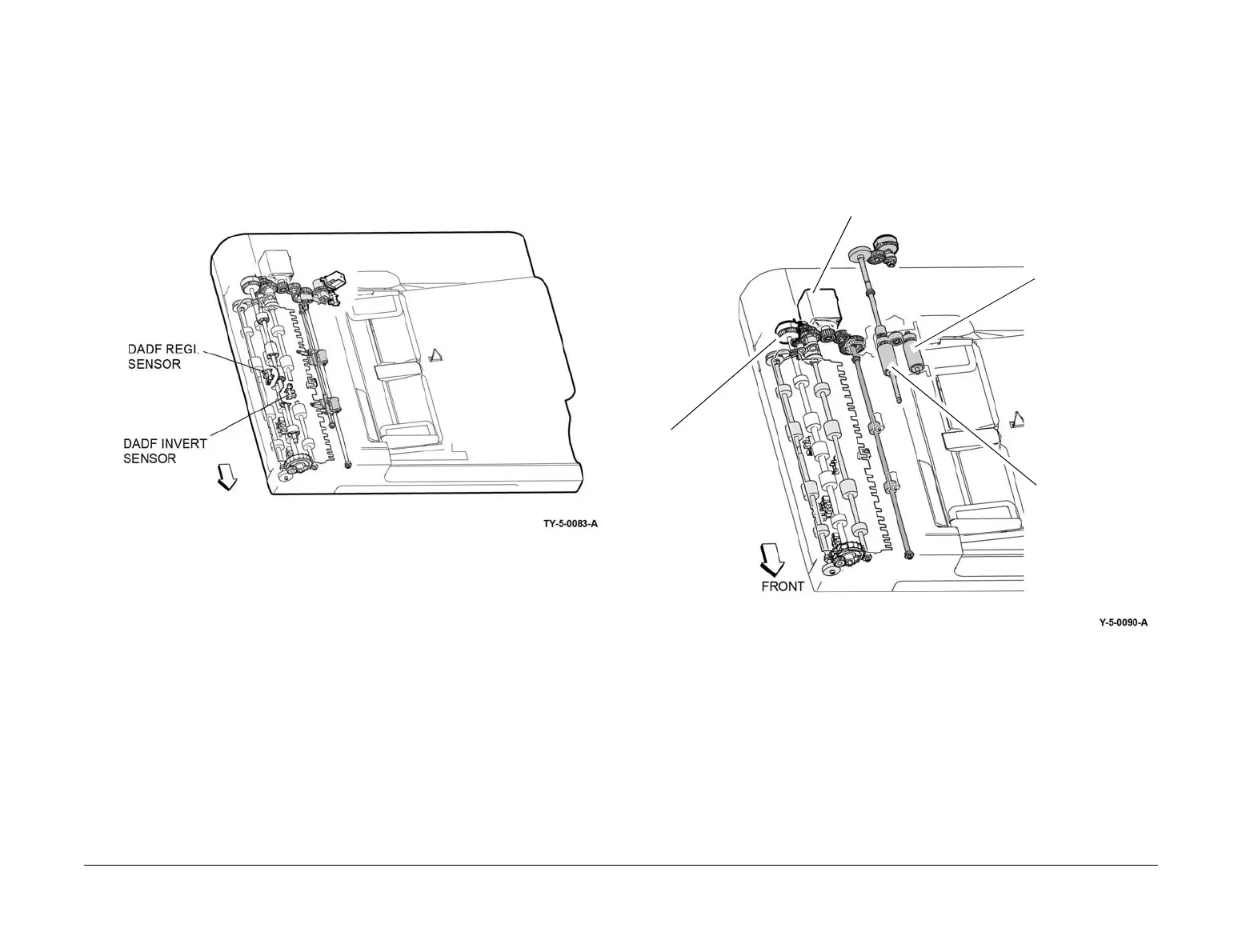

Figure 7 Registration sensor and invert sensor
Feed Motor, Nudger Roll, Feed Roll and Takeaway Roll
The DADF feed motor is a stepping motor that rotates the nudger roll and feed roll in the
reverse (CCW) direction. It also rotates the takeaway roll in the normal (CW) direction. The
takeaway roll stops when this motor rotates in the reverse direction.
The feed roll and the takeaway roll are driven through clutches that are controlled by the DADF
PWB, PL 5.10 Item 11. Refer to Figure 8.
Figure 8 Document feed mechanism
Takeaway clutch
and takeaway roll
Feed roll
Nudger roll
DADF feed motor

Xerox VersaLink B7025 Specifications

General

Print Speed	Up to 25 ppm
Print Resolution	Up to 1200 x 1200 dpi
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Control Panel	5-inch color touchscreen
Duplex Printing	Standard
Processor	1.05 GHz
Memory	2 GB
Paper Output	250 sheets
Fax Speed	33.6 kbps
Fax Transmission Speed	3 seconds per page
Display	5-inch color touchscreen
Connectivity	Ethernet 10/100/1000 Base-T, High-speed USB 3.0
Functions	Print, Copy, Scan
Media Sizes Supported	A4, A5, A6, B5
Printer Type	Laser
Copy Speed	Up to 25 ppm
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android
