Xerox VersaLink B7025 Service Manual

April 2017
8-18
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
Launch Issue
Product Technical Overview
DADF PWB
The DADF PWB, Figure 9, controls the following:
• DADF feed motor, PL 5.30 Item 3.
• DADF feed clutch, PL 5.35 Item 2.
• Takeaway clutch, PL 5.35 Item 2.
• Exit nip release solenoid, PL 5.35 Item 8.

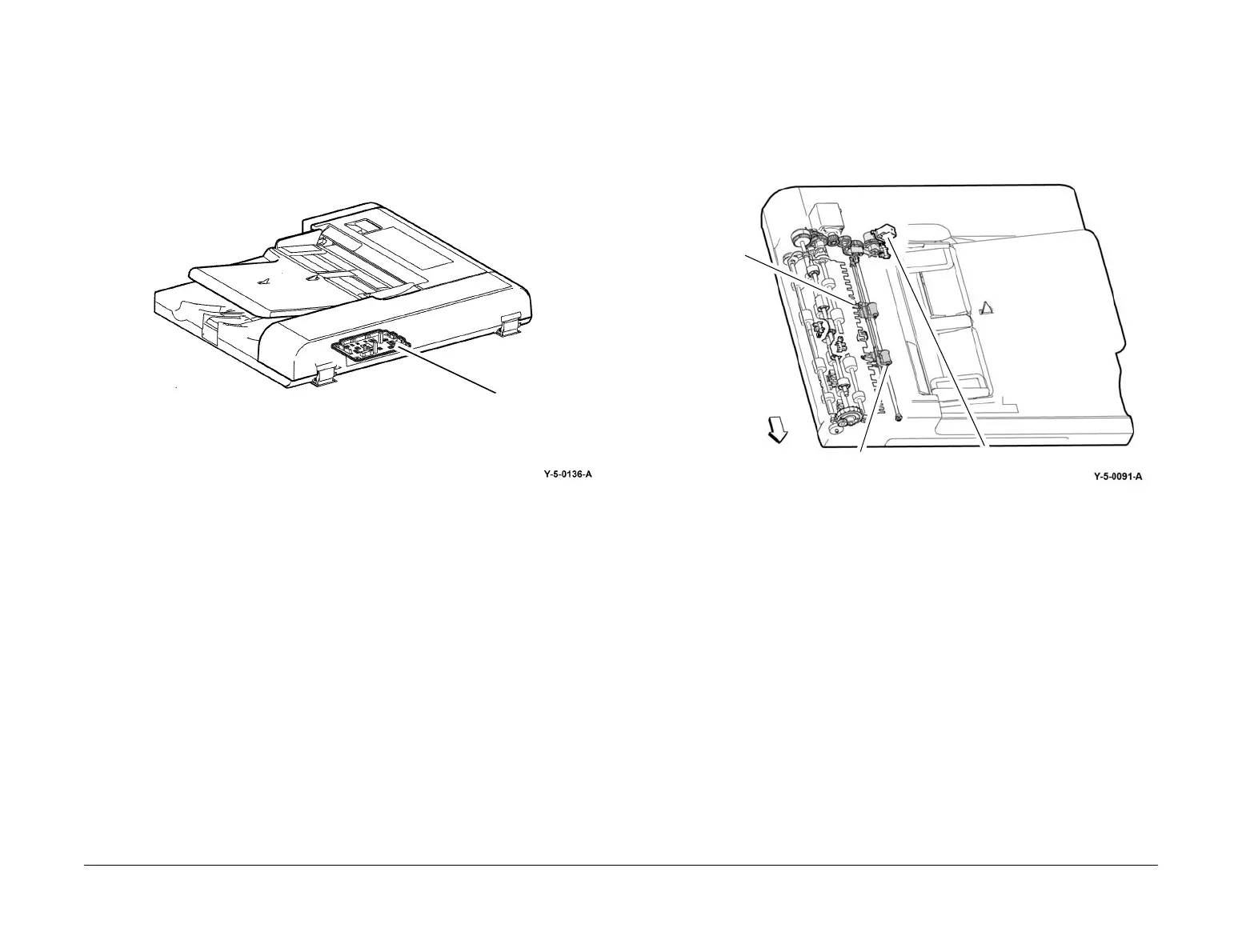

Figure 9 DADF PWB
Exit Nip Release Solenoid
The exit nip release solenoid releases the nip on the exit roll, PL 5.50 Item 3, and exit pinch
roll, PL 5.65 Item 13. The exit nip solenoid is normally off and the exit roll and pinch roll are
nipped. Springs, PL 5.65 Item 18, hold the pinch rolls against the exit roll when the 2 rolls are
nipped. When the solenoid is activated the exit roll and exit pinch roll are released. The exit roll
is drivel directly by the feed motor. Refer to Figure 10.
Figure 10 Exit roll and nip release solenoid
DADF PWB
Exit roll
Exit pinch roll
Exit nip release solenoid

Xerox VersaLink B7025 Specifications

General

Print Speed	Up to 25 ppm
Print Resolution	Up to 1200 x 1200 dpi
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Control Panel	5-inch color touchscreen
Duplex Printing	Standard
Processor	1.05 GHz
Memory	2 GB
Paper Output	250 sheets
Fax Speed	33.6 kbps
Fax Transmission Speed	3 seconds per page
Display	5-inch color touchscreen
Connectivity	Ethernet 10/100/1000 Base-T, High-speed USB 3.0
Functions	Print, Copy, Scan
Media Sizes Supported	A4, A5, A6, B5
Printer Type	Laser
Copy Speed	Up to 25 ppm
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android
