Xerox VersaLink B7025 Service Manual

April 2017
8-20
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
Launch Issue
Product Technical Overview
The full rate carriage moves the LED exposure lamp to scan the complete document on the
document glass.
The IIT scan motor, PL 60.30 Item 5 drives the full and half rate carriages via cables and pul-
leys. The carriage motor is a stepper motor that precisely controls the movement of the scan
carriages beneath the document glass.
The IIT registration sensor, PL 60.30 Item 7 is used to establish the home position of the car-
riages so that the control logic knows their locations. Refer to Figure 2.

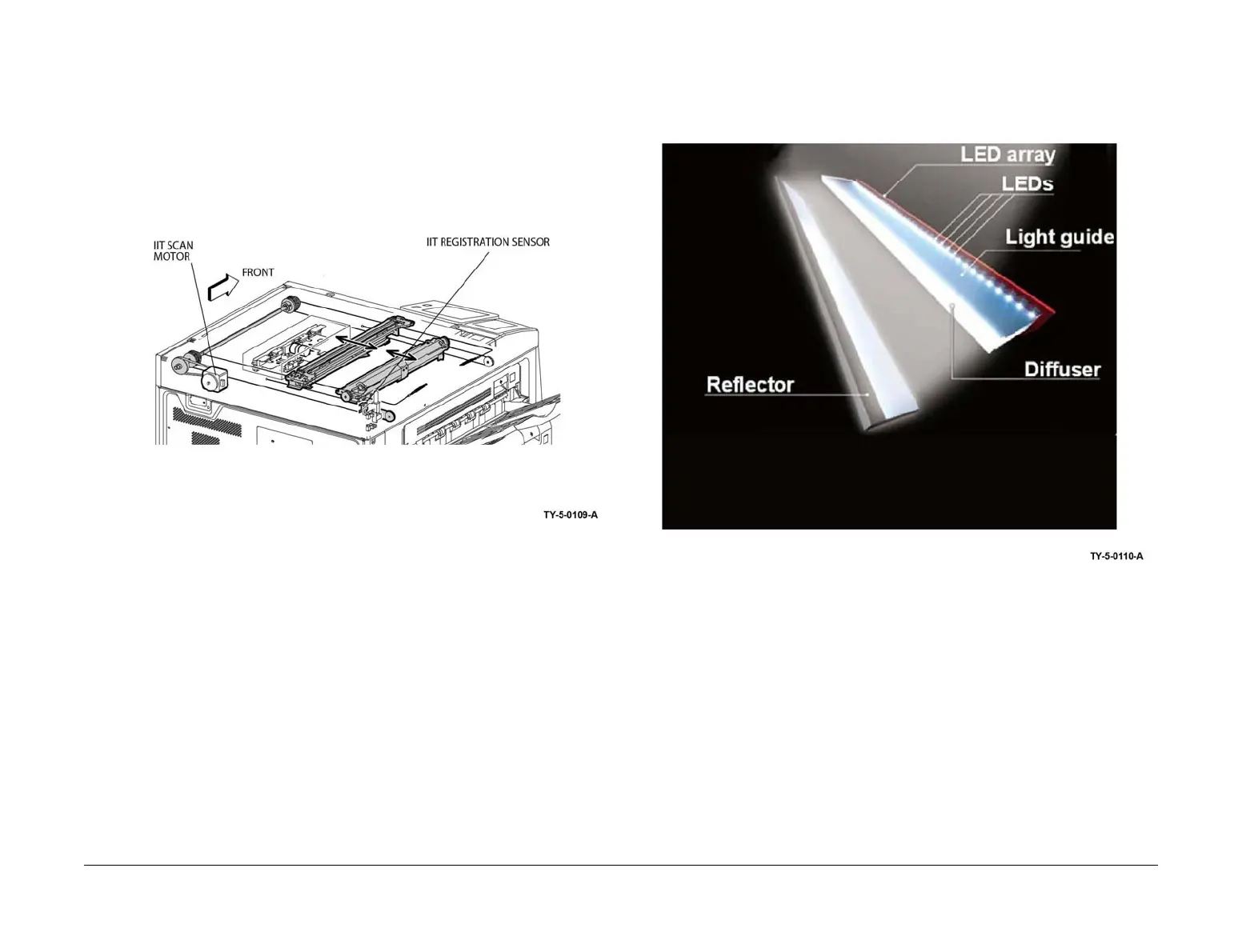

Figure 2 IIT scan motor and registration sensor
Light Guide Overview
The LED exposure lamp consists of a white LED array, a light guide, a diffuser, and a reflector.
Refer to Figure 3.
Figure 3 LED array

Xerox VersaLink B7025 Specifications

General

Print Speed	Up to 25 ppm
Print Resolution	Up to 1200 x 1200 dpi
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Control Panel	5-inch color touchscreen
Duplex Printing	Standard
Processor	1.05 GHz
Memory	2 GB
Paper Output	250 sheets
Fax Speed	33.6 kbps
Fax Transmission Speed	3 seconds per page
Display	5-inch color touchscreen
Connectivity	Ethernet 10/100/1000 Base-T, High-speed USB 3.0
Functions	Print, Copy, Scan
Media Sizes Supported	A4, A5, A6, B5
Printer Type	Laser
Copy Speed	Up to 25 ppm
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android
