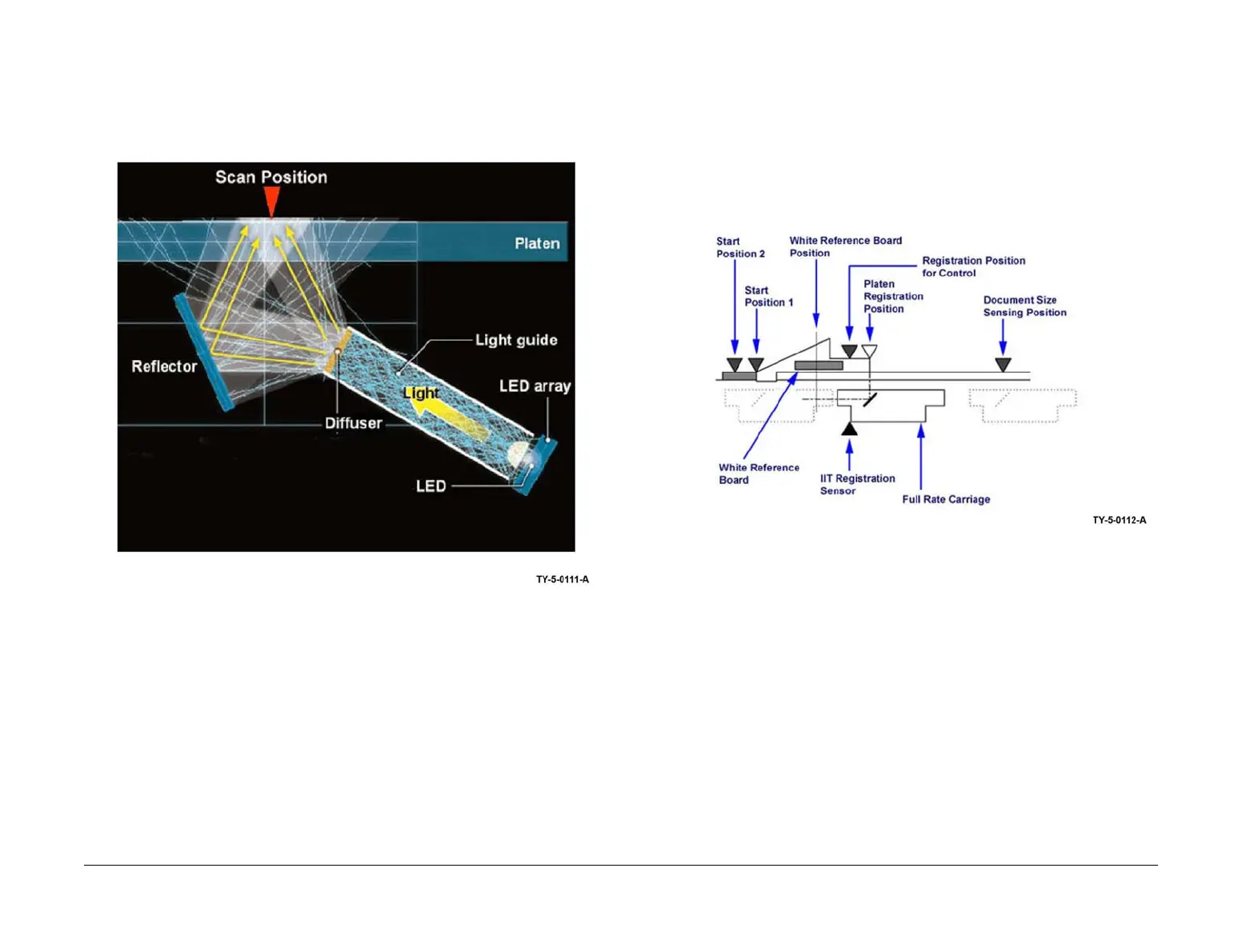

The light guide and diffuser convert the light from the LED array into a uniform pattern that
closely parallels the output from a fluorescent lamp. Refer to Figure 4.
The benefits of this design include uniform and stable light output at lower energy cost,
reduced heat output, and faster start up.
Figure 4 Light diffusion
Scanning Overview
When a document is scanned from the document glass, the scan cables that drive the full rate
and half rate carriages maintain a fixed length optical path between the document and CCD.
This is important for accurate size reproduction and focus.
The scan speed varies according to the reduction or enlargement ratio that has been selected.
A slow scan produces an enlarged image and a fast scan produces a small image. Electronic
processing is used to change the image size in the front- to-back (fast scan) direction when
reduction or enlargement is selected. Refer to Figure 5.
Figure 5 Scanning overview

Xerox VersaLink B7025 Specifications

General

Print Speed	Up to 25 ppm
Print Resolution	Up to 1200 x 1200 dpi
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Control Panel	5-inch color touchscreen
Duplex Printing	Standard
Processor	1.05 GHz
Memory	2 GB
Paper Output	250 sheets
Fax Speed	33.6 kbps
Fax Transmission Speed	3 seconds per page
Display	5-inch color touchscreen
Connectivity	Ethernet 10/100/1000 Base-T, High-speed USB 3.0
Functions	Print, Copy, Scan
Media Sizes Supported	A4, A5, A6, B5
Printer Type	Laser
Copy Speed	Up to 25 ppm
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android
