Xerox VersaLink B7025 Service Manual

April 2017
8-22
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
Launch Issue
Product Technical Overview
DADF Scanning
In the DADF mode, the carriage is positioned under the constant velocity transport (CVT)
glass. The carriage remains stationary while the document is moved across the CVT glass by
the DADF.
The stationary half rate and full rate mirrors are used in the usual way to reflect the image
through the lens to the CCD.
In all copy modes, the document is only scanned once regardless of the number of copies
required. Refer to Figure 6.

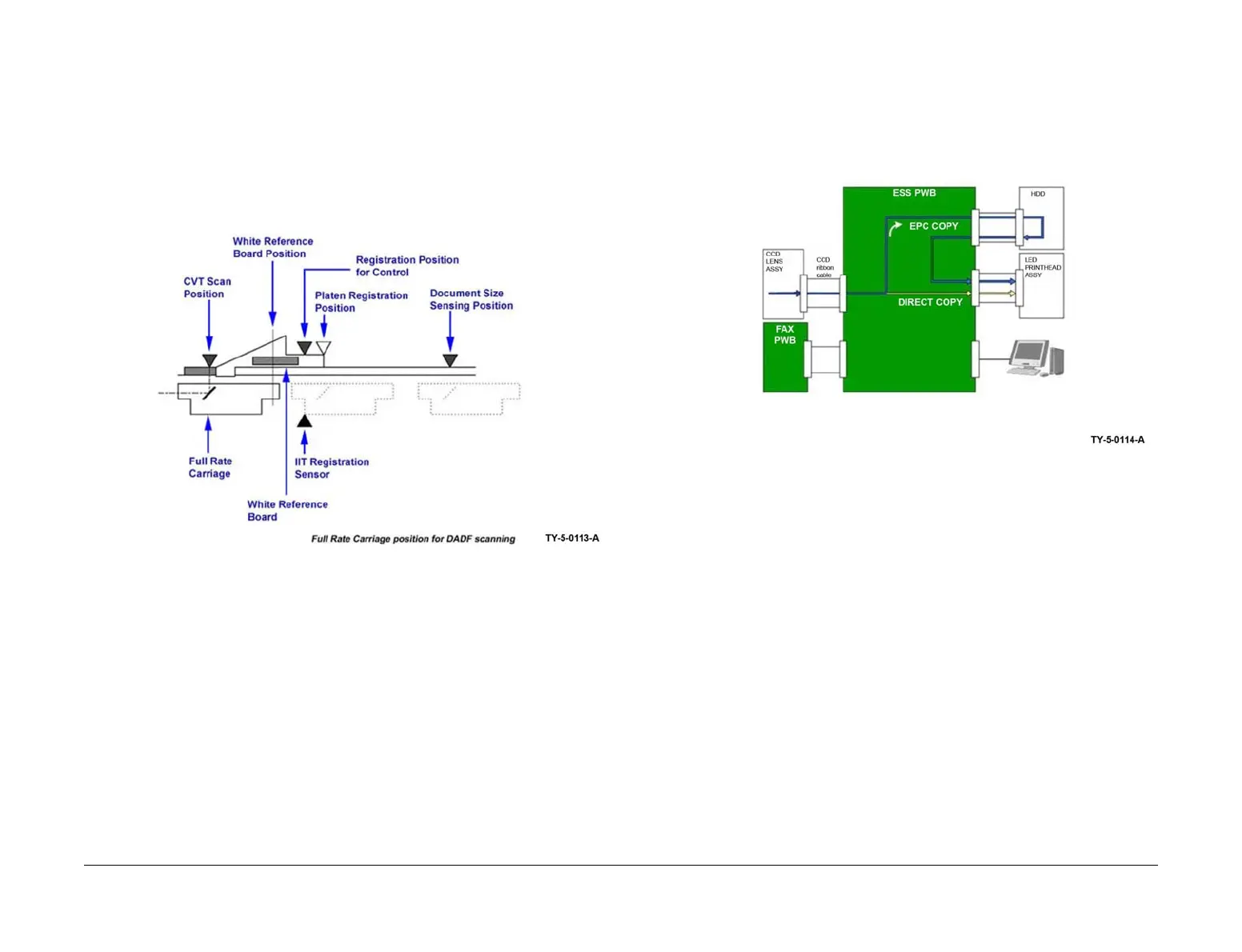

Figure 6 DADF scanning
Image Flow
The image data from the CCD image sensor are sent to the ESS PWB via the CCD ribbon
cable. Shading compensation and white and black correction are then applied to the image
data. Refer to Figure 7.
Figure 7 Image flow

Xerox VersaLink B7025 Specifications

General

Print Speed	Up to 25 ppm
Print Resolution	Up to 1200 x 1200 dpi
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Control Panel	5-inch color touchscreen
Duplex Printing	Standard
Processor	1.05 GHz
Memory	2 GB
Paper Output	250 sheets
Fax Speed	33.6 kbps
Fax Transmission Speed	3 seconds per page
Display	5-inch color touchscreen
Connectivity	Ethernet 10/100/1000 Base-T, High-speed USB 3.0
Functions	Print, Copy, Scan
Media Sizes Supported	A4, A5, A6, B5
Printer Type	Laser
Copy Speed	Up to 25 ppm
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android
