Xerox VersaLink B7025 Service Manual

April 2017
8-31
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
Product Technical Overview
Launch Issue

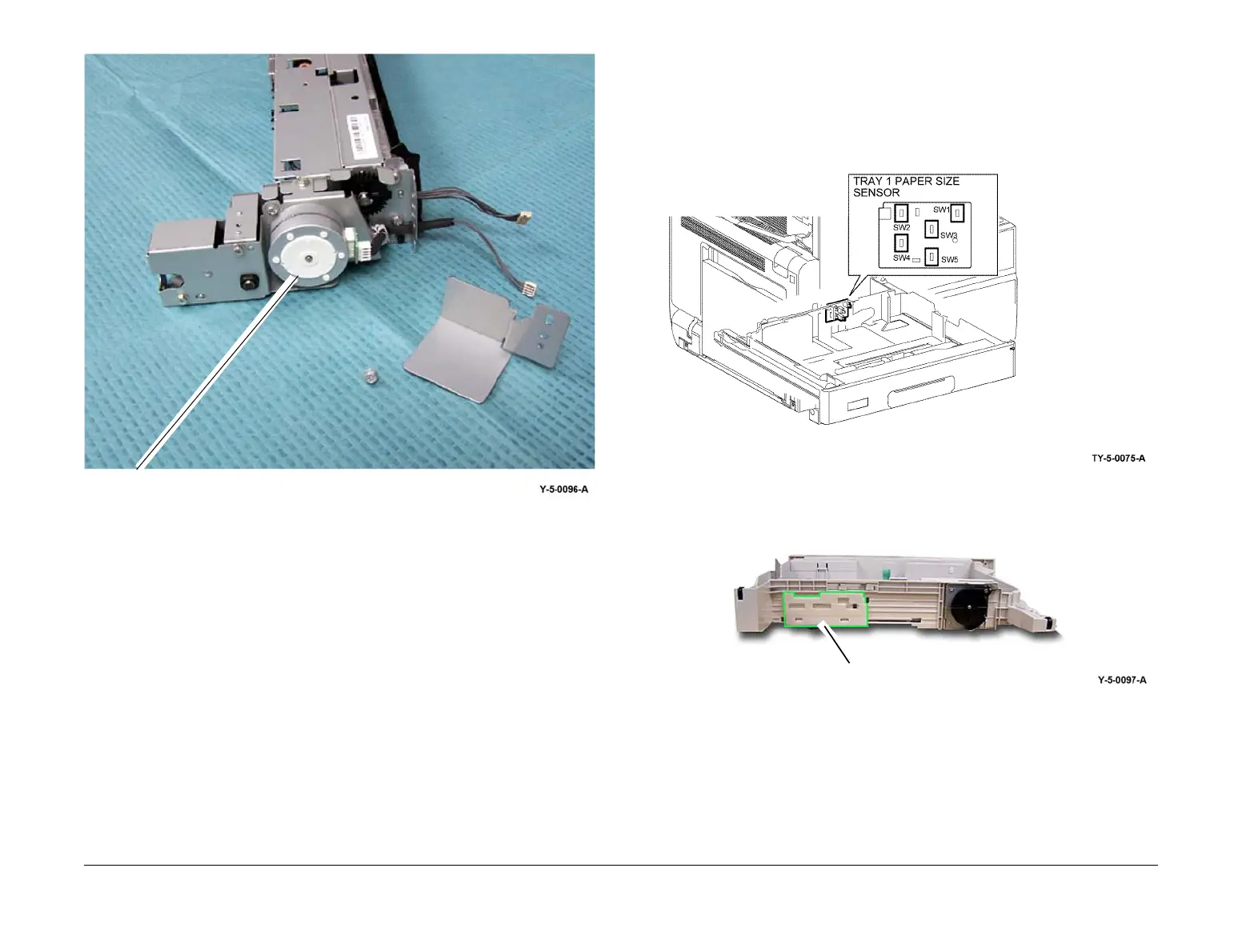

Figure 8 Feed/lift motor
Paper Size Detection: Trays 1, 2, 3 and 4
NOTE: The paper size detection system is different on HCF and trays 3 and 4 of the TTM.
Refer to the relevant sections:
• Tandem Tray Module (TTM): Tray 3 components.
• Tandem Tray Module (TTM): Tray 4 Components.
• High Capacity Feeder (HCF) (Tray 6).
Paper size detection is similar for trays 1, 2, 3 and 4. Adjustment of the paper tray front and
rear side and end guides into contact with the paper stack enables the size of the paper to be
calculated. Figure 9, An actuator located at the rear of the tray, moves with the side guides,
actuating one or more of the 5 switches which comprise the paper size switch, Figure 10. The
combination of on and off signals from the paper size switches changes its output voltage. This
output voltage is then converted from an analog to a digital value that is monitored by a PWB.
The digital value indicates the size of the paper.
Paper size detection is performed at power on and every 0.1 second thereafter. However, the
paper size sensor for a tray that has begun to feed paper is not monitored.
If a tray selected on the UI does not contain paper of the selected size, the machine will not
print using that tray. If an analog to digital value that is not appropriate for the size of paper in a
specific tray is detected the machine will not print using that tray.
NOTE: Although Figure 9 depicts the tray 1 paper size sensor, the location of the sensor in
relation to the paper tray is typical for paper trays 2, 3 and 4.
Figure 9 Paper size switch location
Figure 10 Paper size sensor actuator
No Paper Detection: trays 1, 2, 3 and 4
NOTE: The no paper detection system is different on HCF and trays 3 and 4 of the TTM.
Refer to the relevant sections:
• Tandem Tray Module (TTM): Tray 3 components.
• Tandem Tray Module (TTM): Tray 4 Components.
• High Capacity Feeder (HCF) (Tray 6).
Feed/lift motor
Size sensor actuator

Xerox VersaLink B7025 Specifications

General

Print Speed	Up to 25 ppm
Print Resolution	Up to 1200 x 1200 dpi
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Control Panel	5-inch color touchscreen
Duplex Printing	Standard
Processor	1.05 GHz
Memory	2 GB
Paper Output	250 sheets
Fax Speed	33.6 kbps
Fax Transmission Speed	3 seconds per page
Display	5-inch color touchscreen
Connectivity	Ethernet 10/100/1000 Base-T, High-speed USB 3.0
Functions	Print, Copy, Scan
Media Sizes Supported	A4, A5, A6, B5
Printer Type	Laser
Copy Speed	Up to 25 ppm
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android
