Xerox VersaLink B7025 Service Manual

April 2017
8-48
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
Launch Issue
Product Technical Overview
Drum Cartridge (Power)
The high voltages required by the drum cartridge for charge and development are provided by
the high voltage power supply (HVPS), PL 1.10 Item 2, through two high voltage contacts on
the guide assembly that supports the cartridge. Refer to Figure 7, Figure 8 and Figure 9.

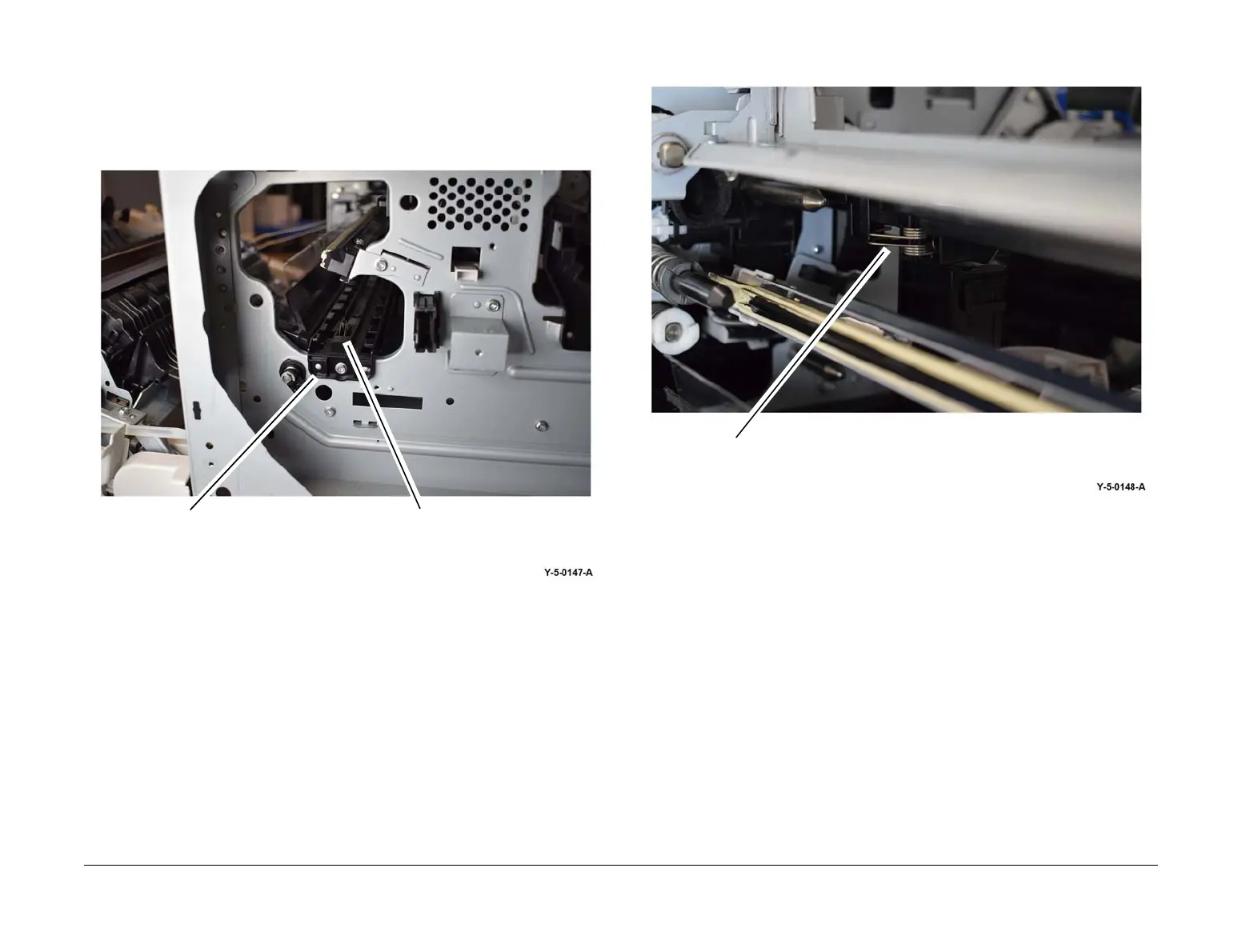

Figure 7 Drum cartridge guide electrical contacts
Figure 8 Drum cartridge guide electrical contacts
Developer bias high
voltage contact
Drum cartridge guide assem-
bly
BCR (charge) high
voltage contact
