Xerox VersaLink B7025 Service Manual

April 2017
8-49
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
Product Technical Overview
Launch Issue

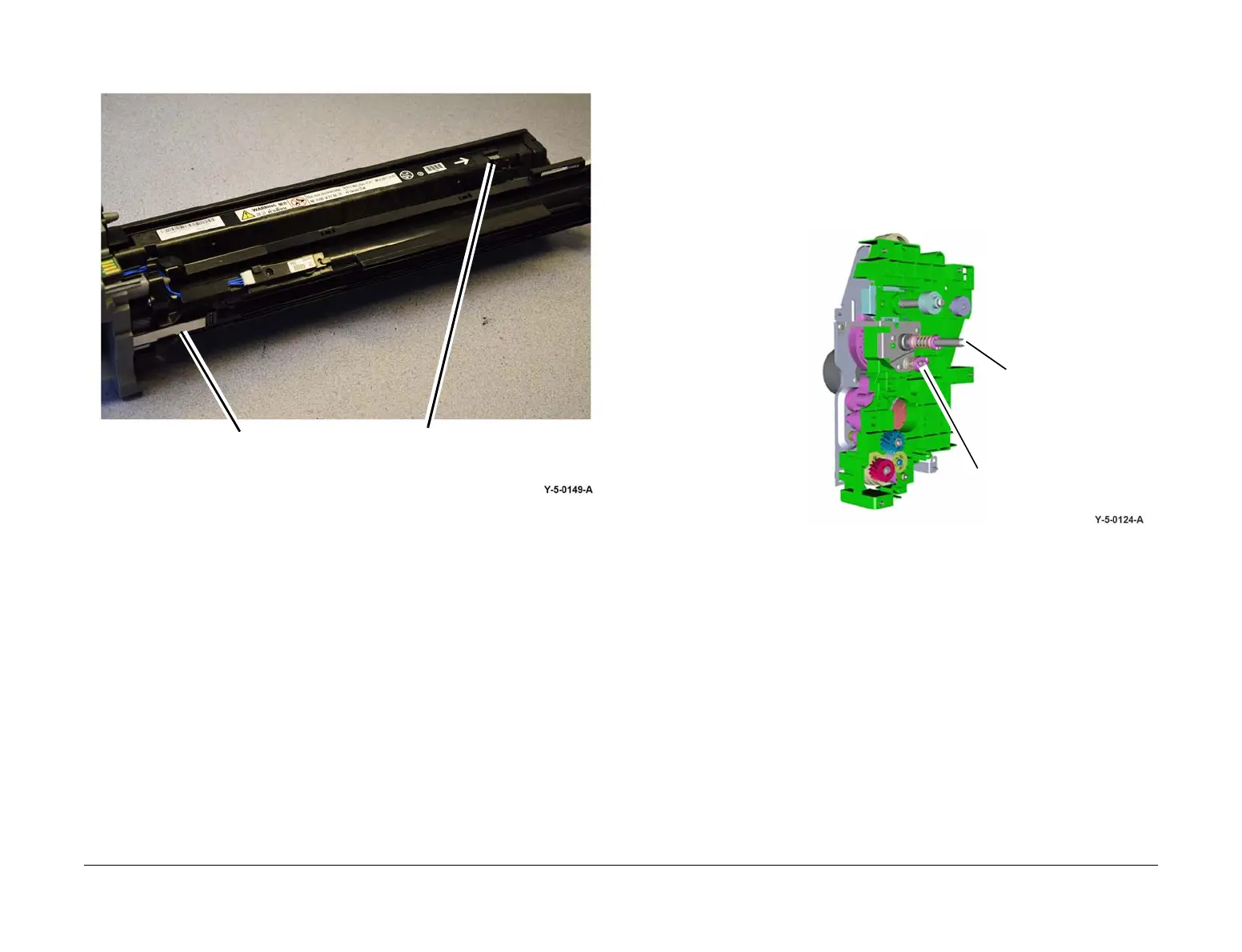

Figure 9 Drum cartridge electrical contacts
Drum Cartridge (Drive)
The mechanical drive for the photoreceptor drum and the developer roll is provided by the
drive assembly PL 40.05 Item 1. Drive to the assembly for the photoreceptor drum and devel
-
oper roll is provided by the drum motor, PL 40.10 Item 1, which is mounted next to the main
motor on the drive assembly.
The rotation of the photoreceptor drum drives the waste toner auger which returns used toner
to the drum cartridge housing. The rotation of the developer roll provides drive to the supply
auger. Refer to Figure 10.
Figure 10 Drum cartridge drive components
BCR (charge) high voltage
contact
Developer bias high voltage
contact
Drum drive coupling
Developer roll drive
coupling

Xerox VersaLink B7025 Specifications

General

Print Speed	Up to 25 ppm
Print Resolution	Up to 1200 x 1200 dpi
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Control Panel	5-inch color touchscreen
Duplex Printing	Standard
Processor	1.05 GHz
Memory	2 GB
Paper Output	250 sheets
Fax Speed	33.6 kbps
Fax Transmission Speed	3 seconds per page
Display	5-inch color touchscreen
Connectivity	Ethernet 10/100/1000 Base-T, High-speed USB 3.0
Functions	Print, Copy, Scan
Media Sizes Supported	A4, A5, A6, B5
Printer Type	Laser
Copy Speed	Up to 25 ppm
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android
