Set Ejection
Refer to Figure 10. The major set ejection components are:
Set Clamp Home Sensor - This photo sensor detects that the set clamp shaft is in the home
position. HIGH (blocked) = at home position
Set Clamp Motor - This stepper motor rotates in the reverse (CCW) direction only to drive the
set clamp shaft in the forward direction.
Eject Home Sensor - This photo sensor detects that the eject belt is in the home position. In
the home position the belt guide is moved back. LOW (not blocked) = at home
Eject Motor - This stepper motor drives the eject belt in the forward (CW) direction to transport
paper to the stack tray and rotates in reverse to move the eject belt to home.

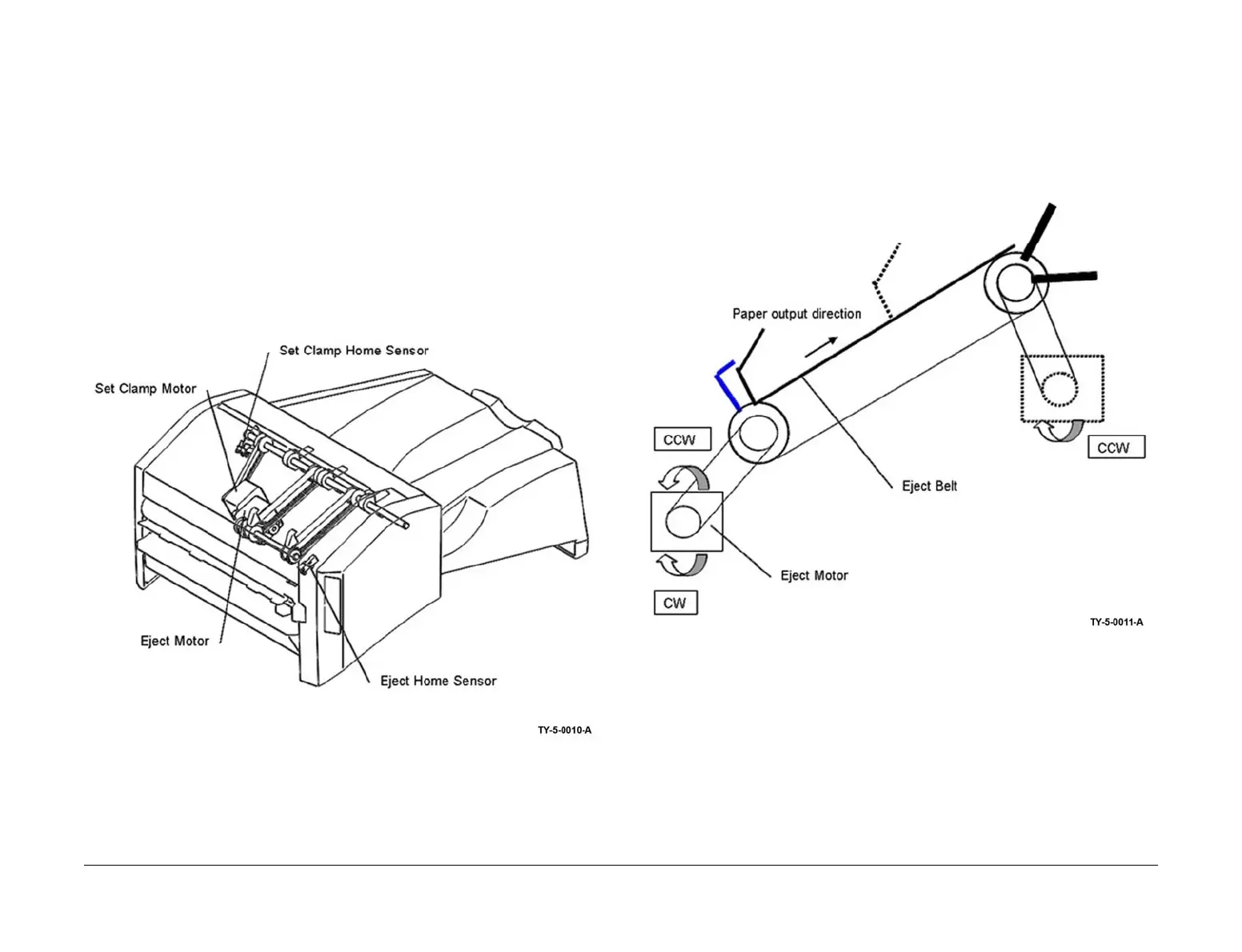

Figure 10 Set ejection
Set Ejection Operation
Once a specified number of sheets of paper have accumulated in the compile tray, the eject
motor rotates forward (CW) for a specified time to drive the eject belts and output the set onto
the stack tray.
Once the sets of paper have been output, the eject motor rotates in the reverse direction
(CCW) to return the eject belts to the home position. Refer to Figure 11.
Figure 11 Set ejection operation
