Xerox VersaLink B7025 Service Manual

April 2017
8-70
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
Launch Issue
Product Technical Overview
Set Ejection Operation Detail
When the belt eject operation has output a set, the set clamp motor rotates in the reverse
direction (CCW), which drives the set clamp shaft forward (CW). The paddles of the set clamp
shaft rotate to register and hold the sheets of paper on the stack tray.
The home position of the set clamp shaft is such that the paddles hold paper. In this position
the set clamp home sensor is not blocked. When the set clamp shaft is driven from its home
position, the set clamp home sensor is blocked and the shaft will rotate until it returns to the
home position. Refer to Figure 12.

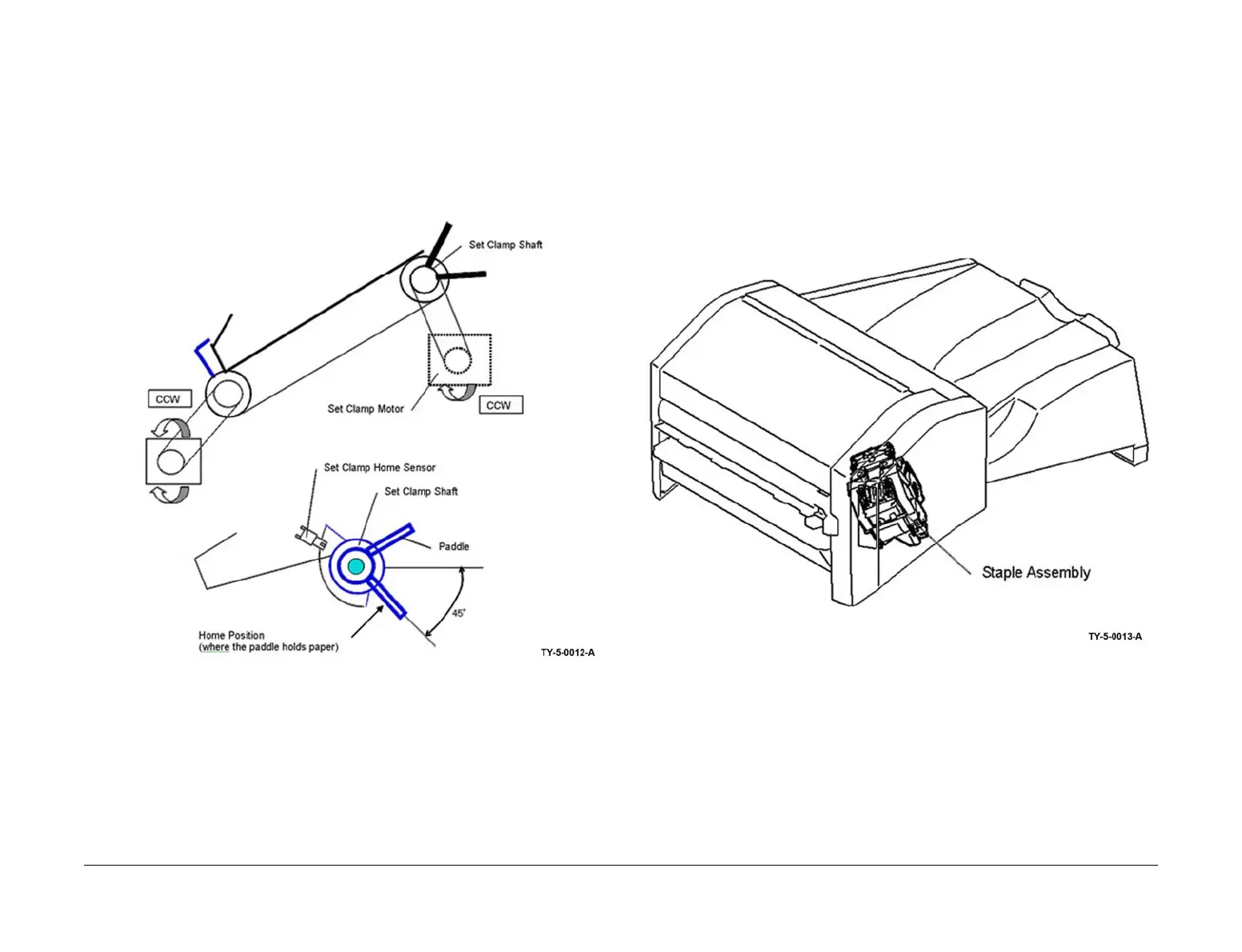

Figure 12 Set ejection operation detail
Stapler Operation
The staple assembly performs stapling. The staple motor in the staple assembly rotates in the
forward direction (CW) to close the staple head, resulting in stapling, and then returns to the
home position. If stapling fails, the staple motor reverses rotation (CCW) to near the home
position. Refer to Figure 13.
Staple assembly - The stapler unit consists of a staple head home sensor, staple motor, low
staple sensor and staple ready sensor.
Figure 13 Stapler operation
