Xerox VersaLink B7025 Service Manual

April 2017
8-71
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
Product Technical Overview
Launch Issue
Stapler Major Components

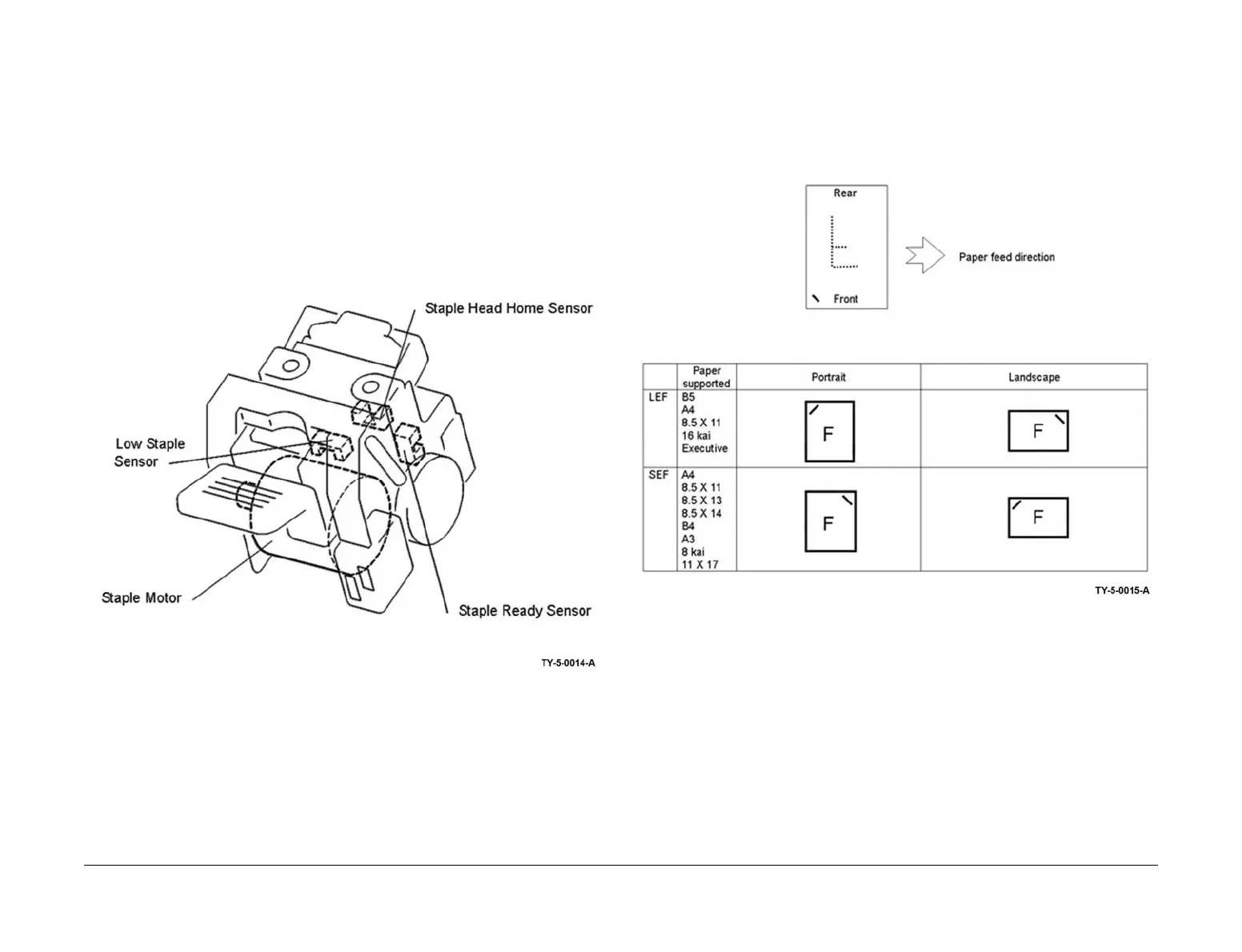

Refer to Figure 14. The major Stapler components are:
• Staple Head Home Sensor – The home sensor detects that the staple head is at the
home position.
• Staple Motor - This DC motor drives the staple head.
• Low Staple Sensor - This photo sensor detects the presence of the staple cartridge and
the quantity of staples that remain.
• Staple Ready Sensor - This photo sensor detects that a staple has reached the staple
head.
Figure 14 Stapler major components
Stapling Positions
Sheets of paper in the compile tray are stapled with only a single staple on the front corner.
Stapling positions relative to a page placed in the document handler or placed on the platen
glass are different for LEF paper and SEF paper, as shown. Refer to Figure 15.
Figure 15 Stapling positions

Xerox VersaLink B7025 Specifications

General

Print Speed	Up to 25 ppm
Print Resolution	Up to 1200 x 1200 dpi
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Control Panel	5-inch color touchscreen
Duplex Printing	Standard
Processor	1.05 GHz
Memory	2 GB
Paper Output	250 sheets
Fax Speed	33.6 kbps
Fax Transmission Speed	3 seconds per page
Display	5-inch color touchscreen
Connectivity	Ethernet 10/100/1000 Base-T, High-speed USB 3.0
Functions	Print, Copy, Scan
Media Sizes Supported	A4, A5, A6, B5
Printer Type	Laser
Copy Speed	Up to 25 ppm
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android
