Xerox VersaLink B7025 Service Manual

April 2017
8-76
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
Launch Issue
Product Technical Overview
Sensors
The movement of paper through the horizontal transport is monitored by the entrance sensor.
The entrance sensor is an optical sensor which is triggered when the light it emits is reflected
by the sheet of paper.
As paper is fed from exit 1 into the horizontal transport, the entrance sensor detects this.
If, after a preset amount of time, the entrance sensor does not de-actuate, this indicates a
paper jam and an error message is displayed on the UI. Refer to Figure 6.
NOTE: The internal components and operation of the horizontal transport shown at the right
are identical to the unit that installs on the Xerox® VersaLink® B7025/B7030/B7035 machines;
only the cover color is different.

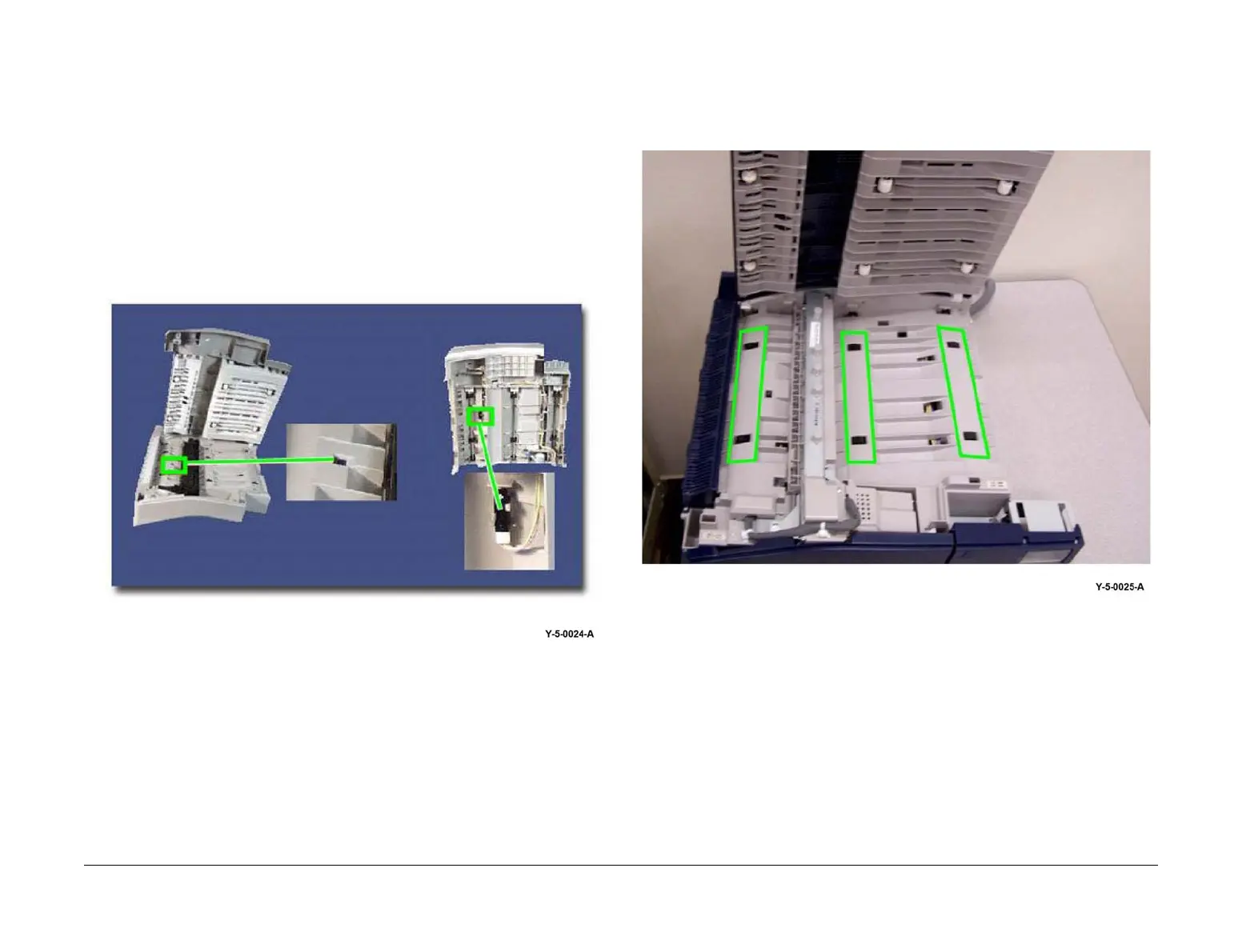

Figure 6 Entrance sensor
Rolls and Drives
The paper is moved through the horizontal transport assembly by three sets of transport rolls.
Drive is provided to the transport rolls by the transport motor through a system of gears and
belts. Refer to Figure 7.
Figure 7 Transport rolls

Xerox VersaLink B7025 Specifications

General

Print Speed	Up to 25 ppm
Print Resolution	Up to 1200 x 1200 dpi
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Control Panel	5-inch color touchscreen
Duplex Printing	Standard
Processor	1.05 GHz
Memory	2 GB
Paper Output	250 sheets
Fax Speed	33.6 kbps
Fax Transmission Speed	3 seconds per page
Display	5-inch color touchscreen
Connectivity	Ethernet 10/100/1000 Base-T, High-speed USB 3.0
Functions	Print, Copy, Scan
Media Sizes Supported	A4, A5, A6, B5
Printer Type	Laser
Copy Speed	Up to 25 ppm
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android
