April 2017
8-77
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
Product Technical Overview
Launch Issue
Power and Control
The Finisher LX contains all the electrical and mechanical components required to collate,
stack, staple, and hole punch sets of copies or prints. Sets can be output to the center tray or to
the stacker tray.
NOTE: When the Finisher LX is installed, the center tray is the top surface of the horizontal
transport.
LVPS
Power is supplied to the finisher components by the low voltage power supply (LVPS).
The LVPS receives 110/240VAC supply from the GFI via the power cord and provides +24V to
the finisher PWB. Refer to Figure 8.

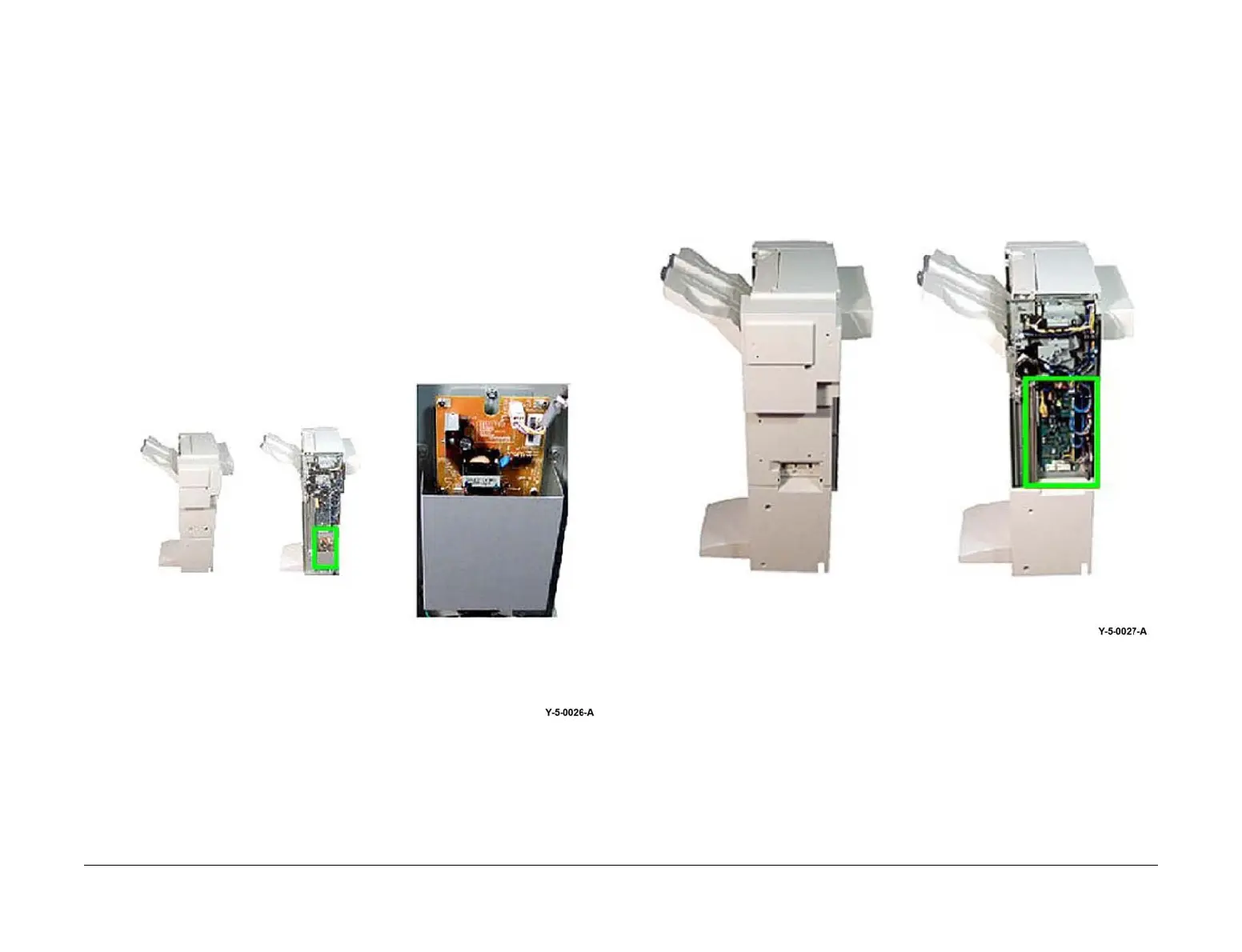

Figure 8 Low voltage power supply
Finisher PWB
All the sensors, switches, interlocks, motors, and clutches are controlled by the finisher PWB.
The finisher PWB receives +24V from the LVPS, which in turn it supplies to the motors and
clutches.
In addition to the +24V supplies, the finisher PWB also provides +5V supply for all the sensors
and switches. Refer to Figure 9.
Figure 9 Finisher PWB
