Xerox VersaLink B7025 Service Manual

April 2017
8-83
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
Product Technical Overview
Launch Issue
Exit and Stack
The exit roll, paper guides, and set clamp assembly all are driven by the eject motor through
the main exit drive gear.
Each assembly has a discrete system of gears and quadrant gears which transfer drive from
the main exit drive gear to the individual assembly. Refer to Figure 23.

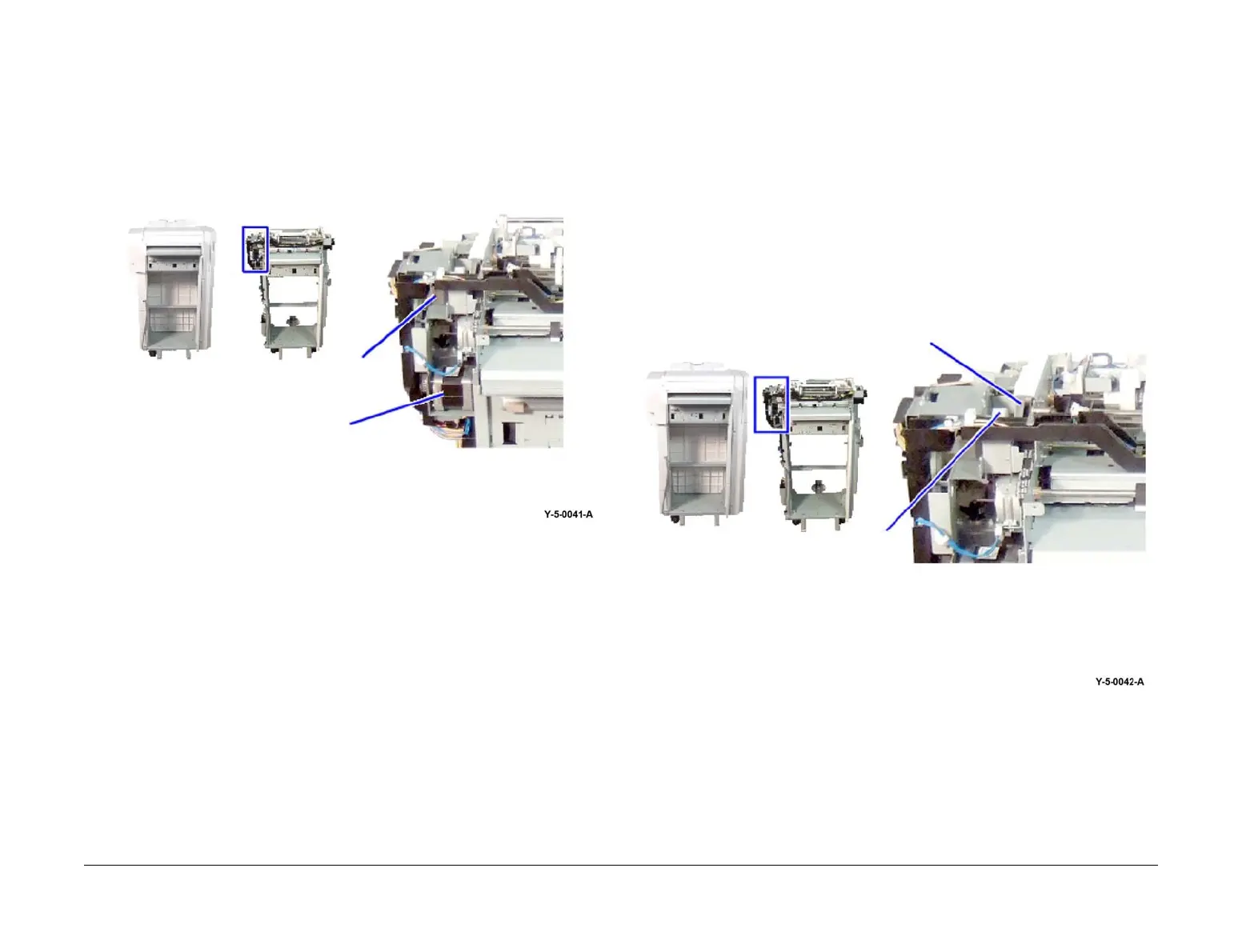

Figure 23 Main exit drive
Exit Roll Assembly
The exit roll assembly consists of exit roll gears, exit roll cam, upper exit roll, lower exit roll,
retaining chassis, and retaining chassis lever. The upper exit roll is free rotating and is main
-
tained in the raised or lowered position by the retaining chassis.
The exit cam roll, driven by the main exit drive gear, moves the retaining chassis into the raised
or lowered position by actuating the retaining chassis lever.
The lower exit roll is driven by the exit roll gears through the main exit drive gear. Paper is
moved from the compiler tray to the stacker tray when the upper exit roll is lowered onto the
lower exit roll. Refer to Figure 24.
Figure 24 Exit clamp
The eject roll is driven by the exit roll gears through the main exit drive gear.
Main exit drive gear
Eject motor
Eject clamp cam
Clamp arm
