Xerox VersaLink B7025 Service Manual

April 2017
8-84
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
Launch Issue
Product Technical Overview
Paper is moved from the compiler tray to the stacker tray when the eject pinch roll is lowered
onto the eject roll. Refer to Figure 25.

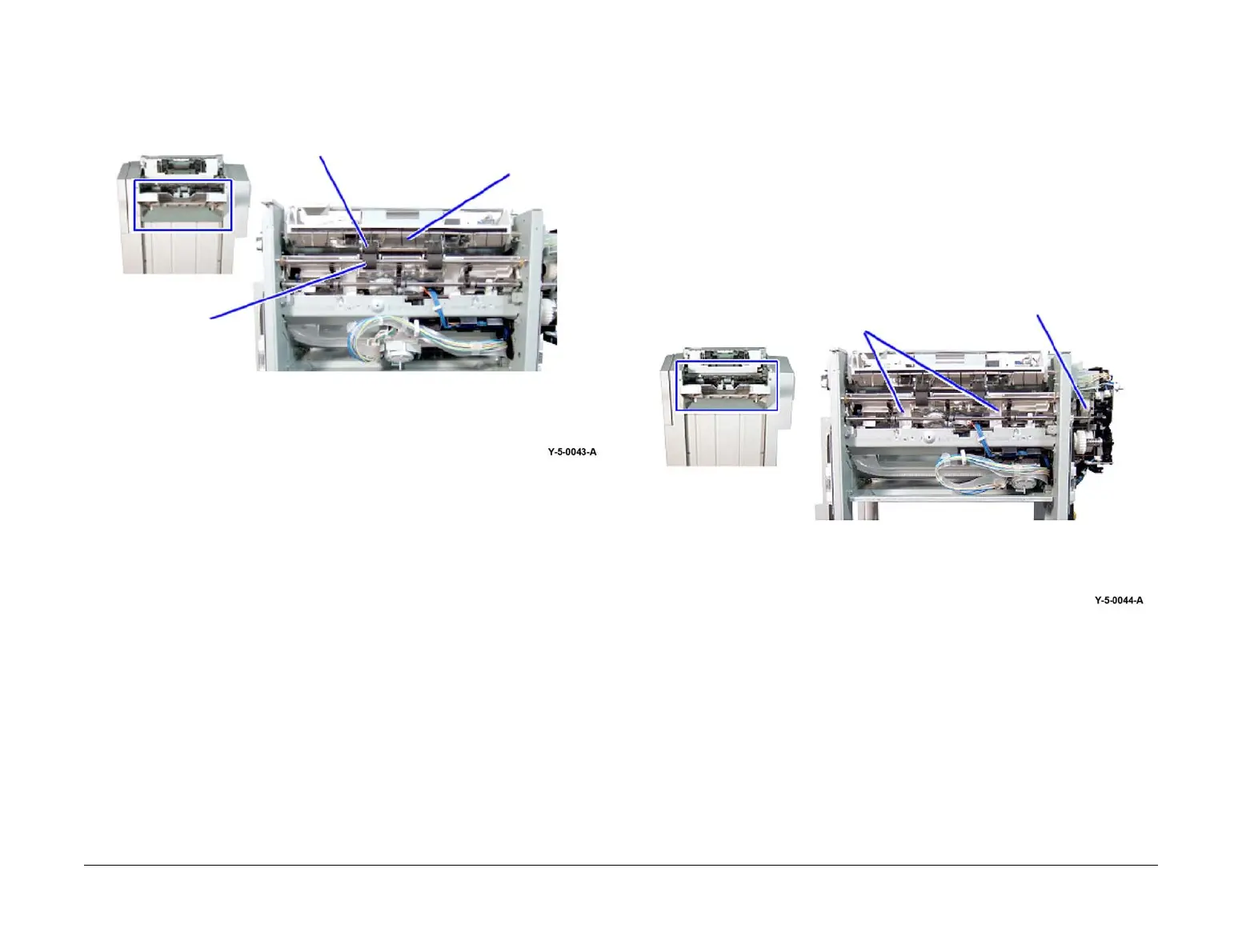

Figure 25 Exit roll assembly
Paper Support Assembly
Paper Guide
The paper guide consists of two paper guides, the eject assembly, the gear select actuator,
and an eject clamp home sensor.
Each paper guide features an integral rack which connects to the gears.
As the main exit drive gear rotates, the eject assembly also rotates, thereby extending or
retracting the paper guide.
This action is reversed by a change in direction of the main exit drive gear. Refer to Figure 26.
Figure 26 Paper guide
Eject chute
Eject roller
Eject pinch
roll
Paper guides
Paper guide gears

Xerox VersaLink B7025 Specifications

General

Print Speed	Up to 25 ppm
Print Resolution	Up to 1200 x 1200 dpi
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Control Panel	5-inch color touchscreen
Duplex Printing	Standard
Processor	1.05 GHz
Memory	2 GB
Paper Output	250 sheets
Fax Speed	33.6 kbps
Fax Transmission Speed	3 seconds per page
Display	5-inch color touchscreen
Connectivity	Ethernet 10/100/1000 Base-T, High-speed USB 3.0
Functions	Print, Copy, Scan
Media Sizes Supported	A4, A5, A6, B5
Printer Type	Laser
Copy Speed	Up to 25 ppm
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android
