Eject Assembly
The position of the paper guide is monitored by the eject clamp home sensor.
The gear select actuator is fixed to the end of one of the drive shafts for the eject assembly and
rotates to trigger the eject clamp home sensor.
The eject clamp home sensor and gear select actuator are only used to confirm that the sup-
port arms are fully extended or retracted. They do not control drive to the main exit drive gear.
Refer to Figure 27.

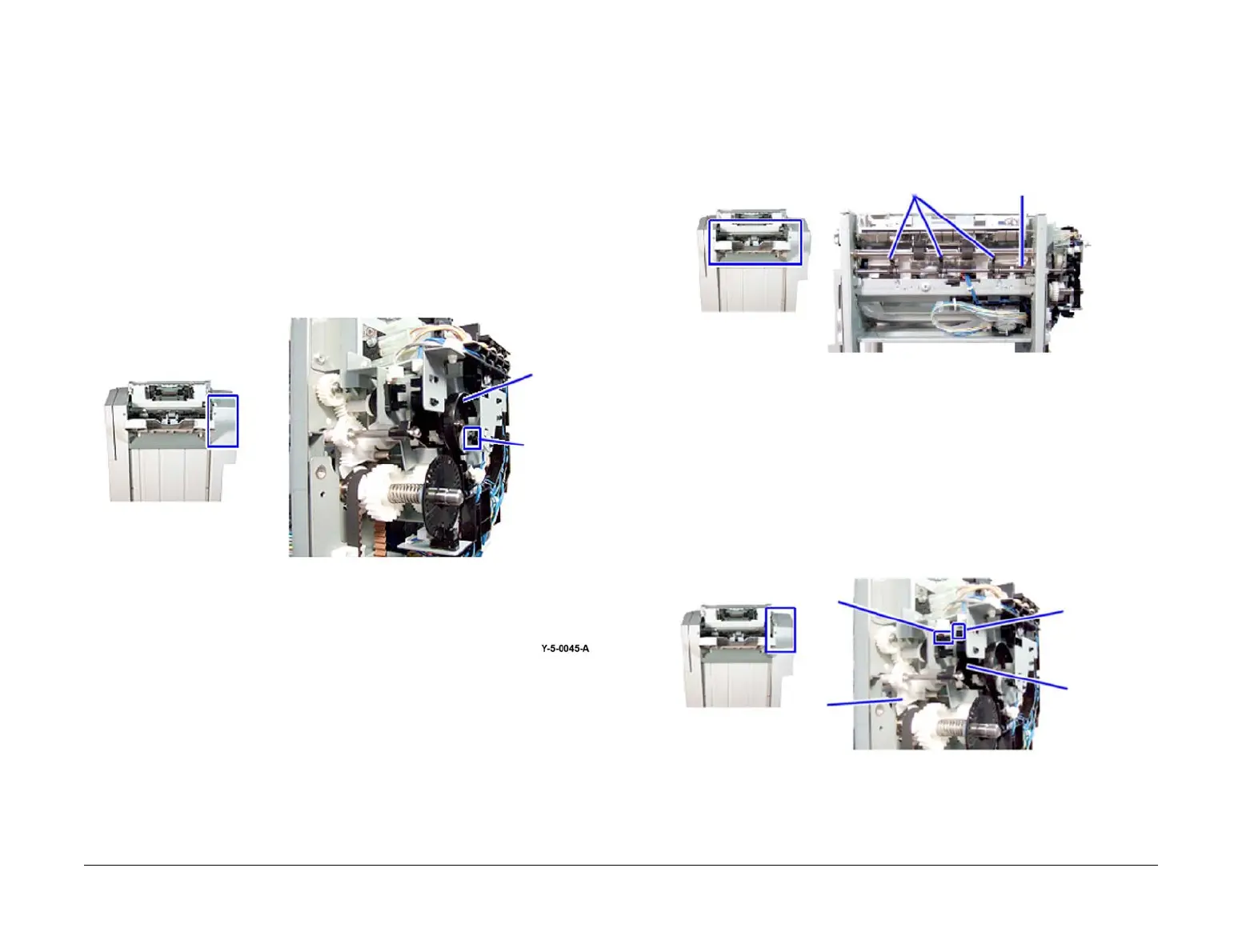

Figure 27 Eject assembly
Paper Clamp Assembly
Set Clamps
The set clamp assembly uses set clamps to hold sets of paper in position on the stacker tray.
The set clamps are fixed to the set clamp shaft which is rotated by the set clamp quadrant gear.
Drive is provided by the main exit drive gear. Refer to Figure 28.
Figure 28 Set clamps
Set Clamp Position
The position of the set clamps is monitored by two sensors. These are the upper and lower
stack height sensors. The set clamp actuator is fixed to the end of the paper clamp shaft and
triggers the sensors when the set clamps are in either the upper or lower position. The sensors
and actuator are only used to confirm that the set clamps are fully raised or lowered. They do
not control drive to the main exit drive gear. Refer to Figure 29.
Figure 29 Set clamp position
Gear
select
actuator
Eject
clamp
home sen-
sor
Set clamps
Set clamp shaft
Quadrant
gear
Set clamp
actuator
Stack height
sensor 1
Stack height
sensor 2
