Xerox VersaLink B7025 Service Manual

April 2017
8-86
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
Launch Issue
Product Technical Overview
Booklet Maker
The optional booklet maker produces pre-creased booklets with either 1 or 2 staples. The
booklet maker is supplied with a crease assembly which is installed into the Finisher LX. Refer
to Figure 30.

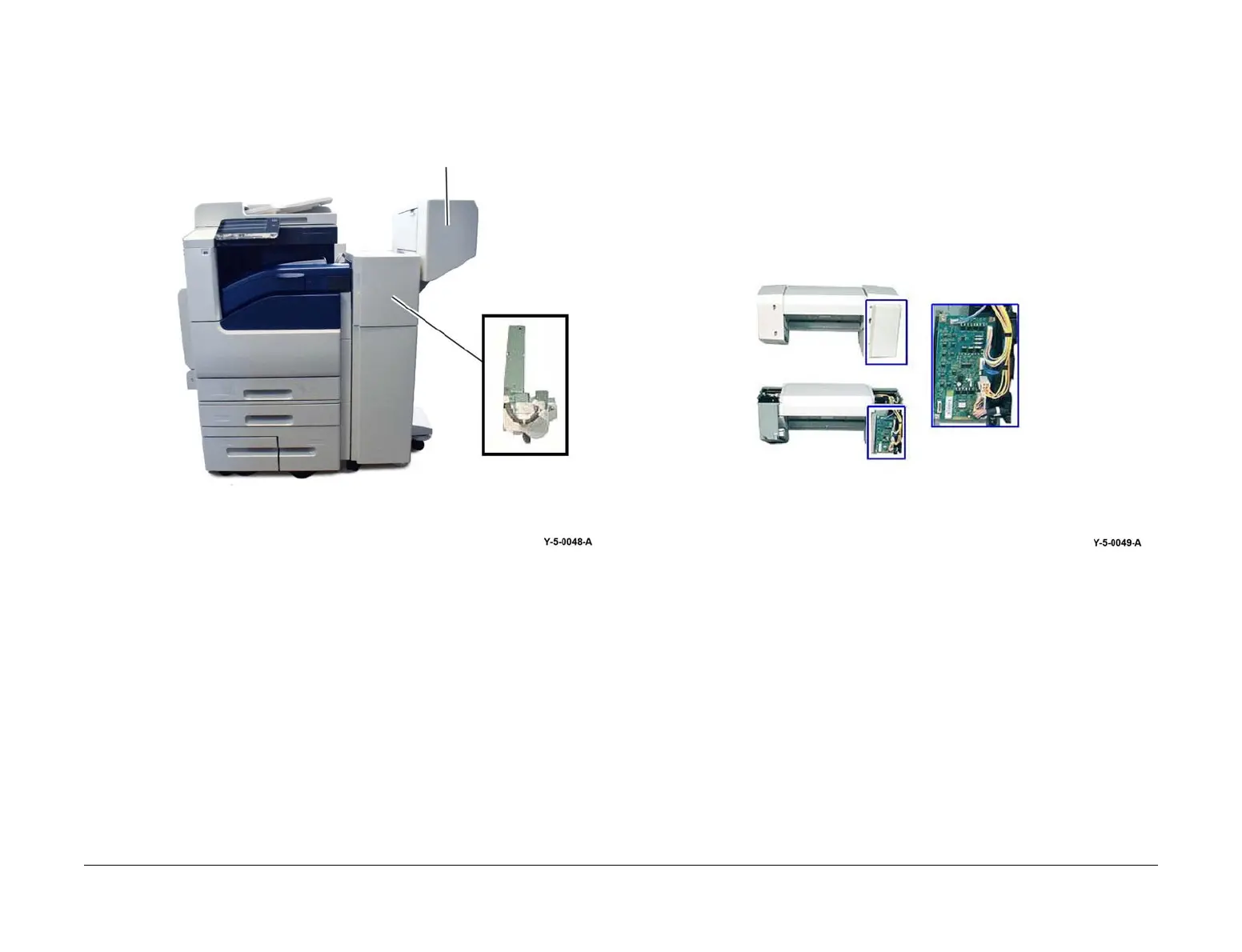

Figure 30 Booklet maker
Power and Control
The Finisher LX supplies the booklet PWB with a +24V power supply through the interconnec-
tion harness.
The booklet PWB controls all the booklet maker components and distributes the + 24V supply
to the motors and + 5V to the sensors and interlocks.
The crease assembly is powered and controlled by the finisher PWB. Refer to Figure 31.
Figure 31 Booklet maker power and control
Booklet maker
Booklet PWB
