Xerox VersaLink B7025 Service Manual

April 2017
8-87
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
Product Technical Overview
Launch Issue
Booklet Maker Interlocks
The booklet maker has three Interlocks: the booklet stapler cover switch, the front booklet sta-
pler safety switch, and rear booklet stapler safety switch.
Interlock - Booklet Stapler Cover Switch
The booklet stapler cover switch is actuated when the side cover is opened. When actuated, all
+ 24V supplies are removed from the booklet maker. Refer to Figure 32.

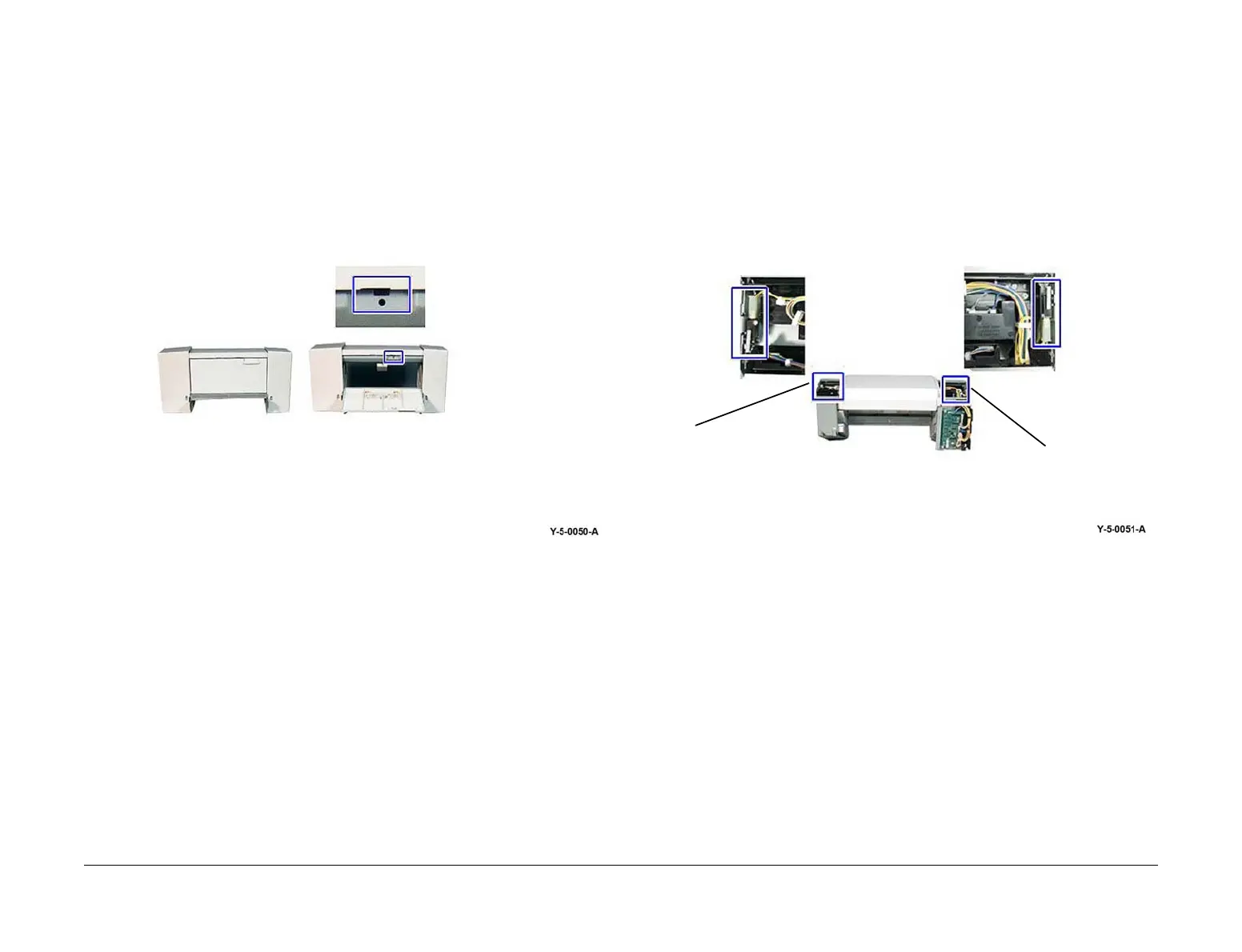

Figure 32 Booklet stapler cover switch
Interlock - Front and Rear Booklet Stapler Safety Switches
The front and rear booklet stapler safety switches are actuated when either the front or rear
covers are raised.
These Interlocks prevent the booklet maker from operating when either the front or rear covers
are obstructed, i.e., raised, or when the booklet maker is incorrectly mounted. Refer to Figure
33.
Figure 33 Front and rear safety switches
Booklet stapler
cover switch
Front booklet staple
safety switch
Rear booklet staple
r
safety switch

Xerox VersaLink B7025 Specifications

General

Print Speed	Up to 25 ppm
Print Resolution	Up to 1200 x 1200 dpi
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Control Panel	5-inch color touchscreen
Duplex Printing	Standard
Processor	1.05 GHz
Memory	2 GB
Paper Output	250 sheets
Fax Speed	33.6 kbps
Fax Transmission Speed	3 seconds per page
Display	5-inch color touchscreen
Connectivity	Ethernet 10/100/1000 Base-T, High-speed USB 3.0
Functions	Print, Copy, Scan
Media Sizes Supported	A4, A5, A6, B5
Printer Type	Laser
Copy Speed	Up to 25 ppm
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android
