Xerox VersaLink B7025 Service Manual

April 2017
8-88
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
Launch Issue
Product Technical Overview
Interlock - Finisher Side Interlock
An option switch is used to detect when the booklet maker is installed on the finisher. This
Interlock is located on the Finisher LX, not the booklet maker.
When Interlocks are open, power is removed and an error message displays on the UI. Refer
to Figure 34.

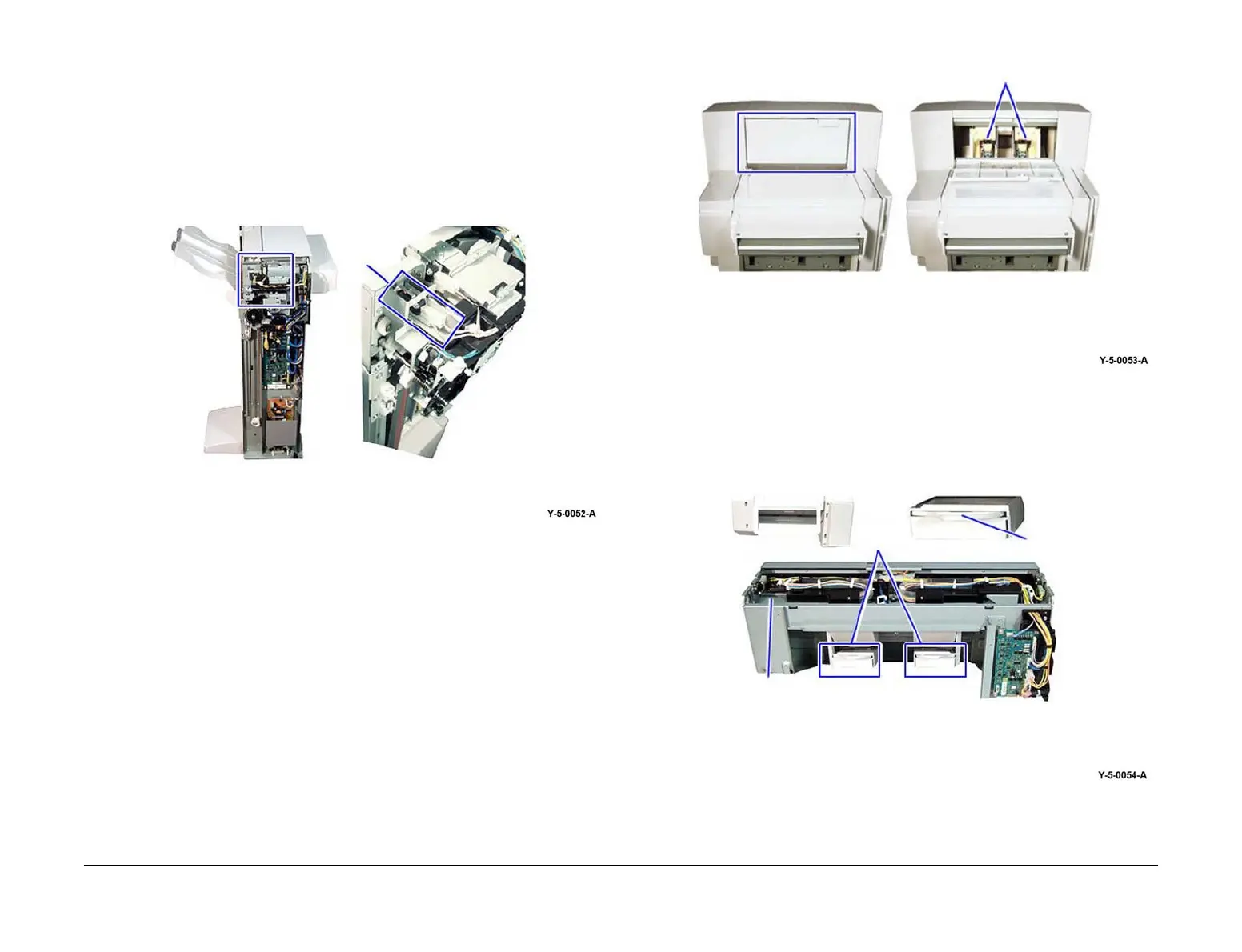

Figure 34 Finisher side interlock
Stapler Assembly
The booklet maker contains two staple assemblies which support and staple compiled booklets
prior to ejecting into the stacker tray.
Each staple assembly contains a staple module and an exit sub chute. The staple units are
mounted on a carriage rail. Refer to Figure 35.
Figure 35 Stapler assemblies
Figure 36 Components
Option
switch
Stapler assemblies
Stapler
assemblies
Exit sub-chute
Carriage rail

Xerox VersaLink B7025 Specifications

General

Print Speed	Up to 25 ppm
Print Resolution	Up to 1200 x 1200 dpi
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Control Panel	5-inch color touchscreen
Duplex Printing	Standard
Processor	1.05 GHz
Memory	2 GB
Paper Output	250 sheets
Fax Speed	33.6 kbps
Fax Transmission Speed	3 seconds per page
Display	5-inch color touchscreen
Connectivity	Ethernet 10/100/1000 Base-T, High-speed USB 3.0
Functions	Print, Copy, Scan
Media Sizes Supported	A4, A5, A6, B5
Printer Type	Laser
Copy Speed	Up to 25 ppm
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android
