Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
Product Technical Overview
Launch Issue
Stapler Mount Position
The position of the stapler mount is controlled by the stapler move position sensor.
As the stapler mount moves along the base frame, the light emitted between the two prongs of
the stapler move position sensor is interrupted by one of three positional tabs.
These are the end, front, and rear positional tabs.
The end positional tab is used to indicate the correct position along the base frame for single
stapling.
The front and rear positional tabs are used to indicate the correct position along the base frame
for double stapling. Refer to Figure 43.

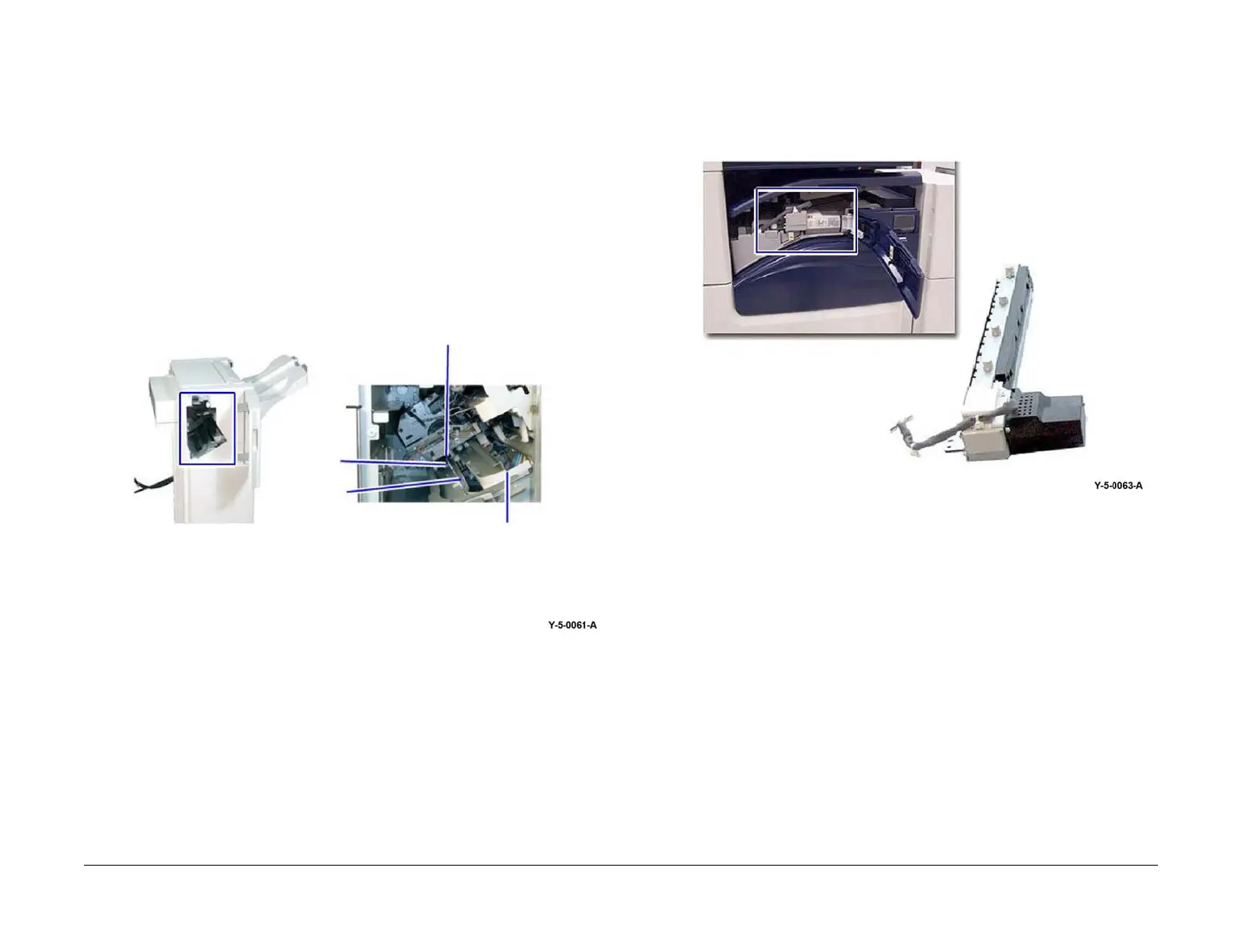

Figure 43 Stapler mount position
Stapler Cartridge
The staple units contain a staple cartridge CRU, staple clinch motor, cam and a staple drive
mechanism.
When required, the staple clinch motor is energized to drive the cam.
One full rotation of the cam causes the staple drive mechanism to drive and clinch a staple,
stored in the staple cartridge CRU, through the paper set. Refer to PL 13.20.
Hole Punch Assembly
The hole punch assembly punches either 2 or 4 holes in Europe or 2 or 3 holes in North Amer-
ica. The hole punch assembly is installed within the horizontal transport. It is controlled by the
finisher PWB. Refer to Figure 44.
Figure 44 Hole punch assembly
Stapler move position
sensor
Front positional
tab
Rear positional
tab
End positional
tab

Xerox VersaLink B7025 Specifications

General

Print Speed	Up to 25 ppm
Print Resolution	Up to 1200 x 1200 dpi
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Control Panel	5-inch color touchscreen
Duplex Printing	Standard
Processor	1.05 GHz
Memory	2 GB
Paper Output	250 sheets
Fax Speed	33.6 kbps
Fax Transmission Speed	3 seconds per page
Display	5-inch color touchscreen
Connectivity	Ethernet 10/100/1000 Base-T, High-speed USB 3.0
Functions	Print, Copy, Scan
Media Sizes Supported	A4, A5, A6, B5
Printer Type	Laser
Copy Speed	Up to 25 ppm
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android
