Xerox VersaLink B7025 Service Manual

April 2017
8-90
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
Launch Issue
Product Technical Overview
Crease Assembly Position
The action of the crease blade pressing the paper against the paper chute creates a pre-
crease in the sheet of paper.
The position of the paper within the crease assembly is monitored by the entrance and com-
piler exit sensors (part of the finisher LX).
When the paper is in the correct position within the paper chute, the paper momentarily stops
feeding and the crease blade is raised and lowered. Paper feed now resumes. Refer to Figure
40.

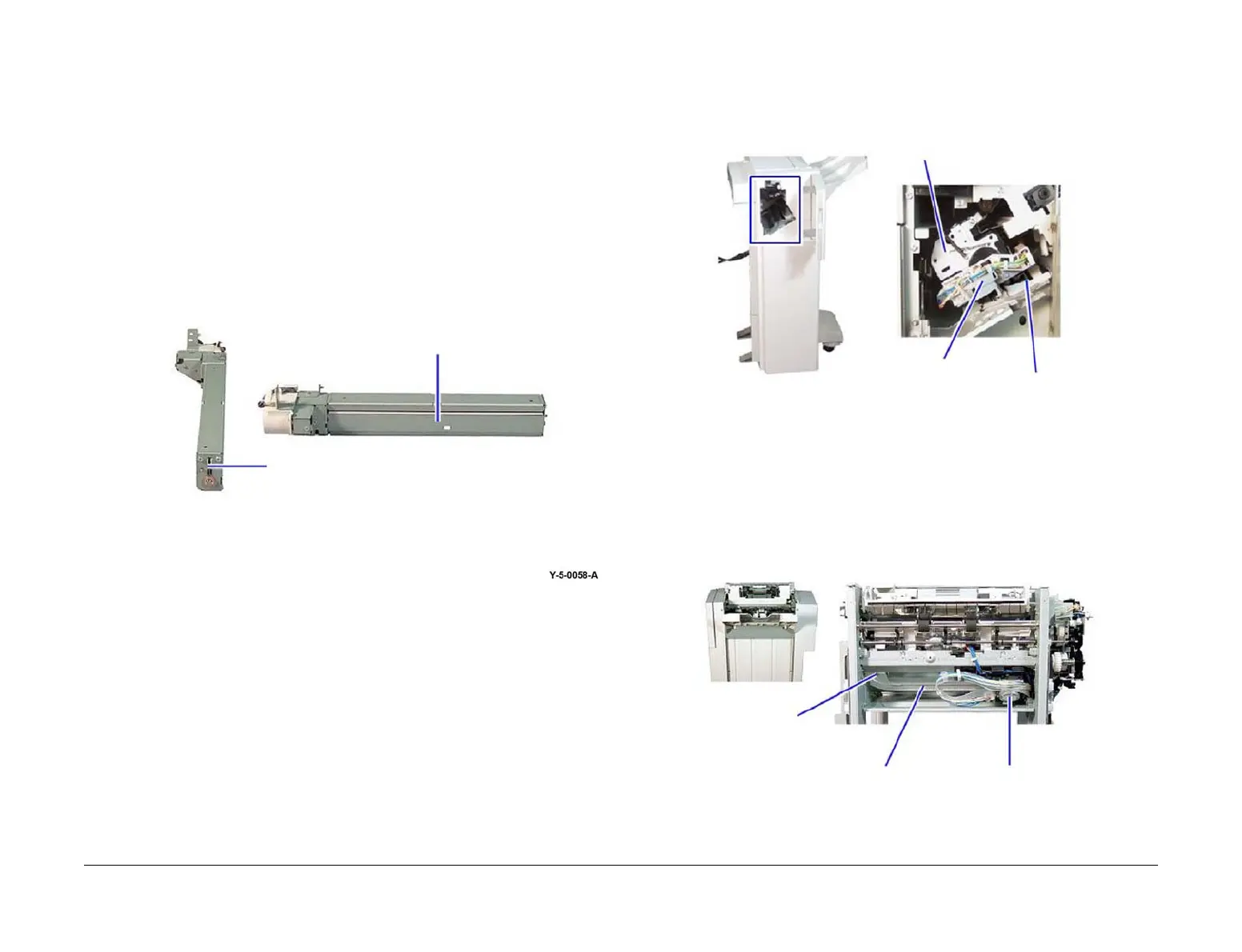

Figure 40 Crease blade and chute
Compiler Stapler
Stapler Unit
The compiler stapler has a stapler unit which is installed on a stapler mount. The stapler mount
moves the stapler unit to key stapling positions along the rail. Refer to Figure 41.
Figure 41 Stapler unit
Stapler Mount
The stapler mount is driven by the stapler move motor which is secured to the bottom of the
stapler mount.
A gear fixed to the end of the stapler move motor drives the stapler mount along the rail, which
is an integral part of the base frame. Refer to Figure 42.
Figure 42 Stapler mount movement
Chute
Crease blade
Stapler unit
Stapler mount
Rail
Stapler move motor
Base
frame
Rail

Xerox VersaLink B7025 Specifications

General

Print Speed	Up to 25 ppm
Print Resolution	Up to 1200 x 1200 dpi
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Control Panel	5-inch color touchscreen
Duplex Printing	Standard
Processor	1.05 GHz
Memory	2 GB
Paper Output	250 sheets
Fax Speed	33.6 kbps
Fax Transmission Speed	3 seconds per page
Display	5-inch color touchscreen
Connectivity	Ethernet 10/100/1000 Base-T, High-speed USB 3.0
Functions	Print, Copy, Scan
Media Sizes Supported	A4, A5, A6, B5
Printer Type	Laser
Copy Speed	Up to 25 ppm
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android
