Xerox VersaLink B7025 Service Manual

April 2017
4-113
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 13.17
Repairs and Adjustments
Launch Issue
5. Install the bushing, spring and gear onto the rear end of the set clamp shaft, Figure 13:
a. Install the bushing (1).
b. Install the spring (2).
c. Install the gear (3).
d. Install the stack height sensor flag (4) onto the rear end of the shaft as shown.

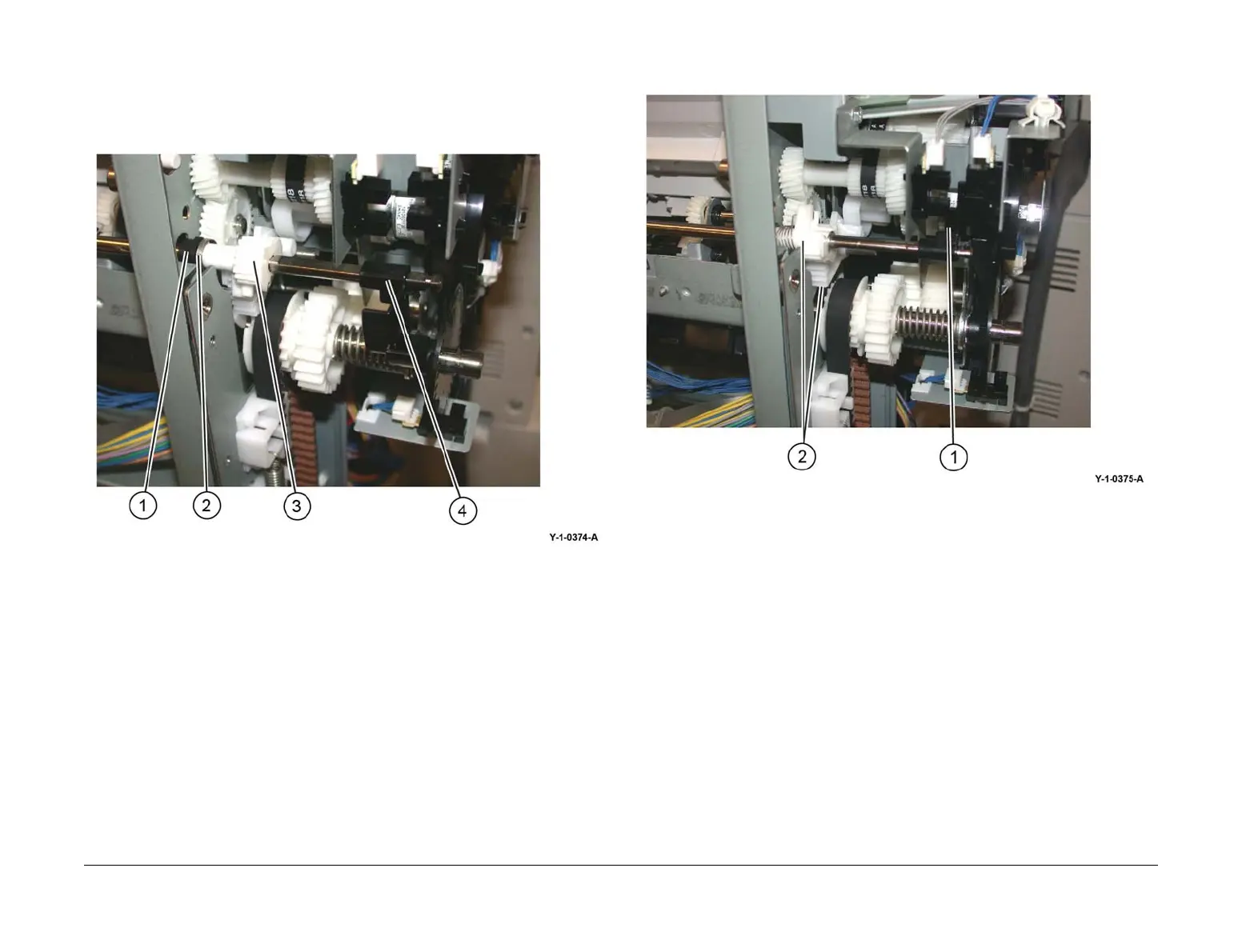

Figure 13 Bushing, spring and gear installation
6. Rotate the set clamp shaft until the stack height sensor flag (1) is in the correct position,
then correctly align both gears (2), Figure 14.
Figure 14 Sensor flag and gear alignment
7. Attach the spring to the gear and slide the gear into position.

Xerox VersaLink B7025 Specifications

General

Print Speed	Up to 25 ppm
Print Resolution	Up to 1200 x 1200 dpi
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Control Panel	5-inch color touchscreen
Duplex Printing	Standard
Processor	1.05 GHz
Memory	2 GB
Paper Output	250 sheets
Fax Speed	33.6 kbps
Fax Transmission Speed	3 seconds per page
Display	5-inch color touchscreen
Connectivity	Ethernet 10/100/1000 Base-T, High-speed USB 3.0
Functions	Print, Copy, Scan
Media Sizes Supported	A4, A5, A6, B5
Printer Type	Laser
Copy Speed	Up to 25 ppm
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android
