Xerox VersaLink B7025 Service Manual

April 2017
4-114
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 13.17
Launch Issue
Repairs and Adjustments

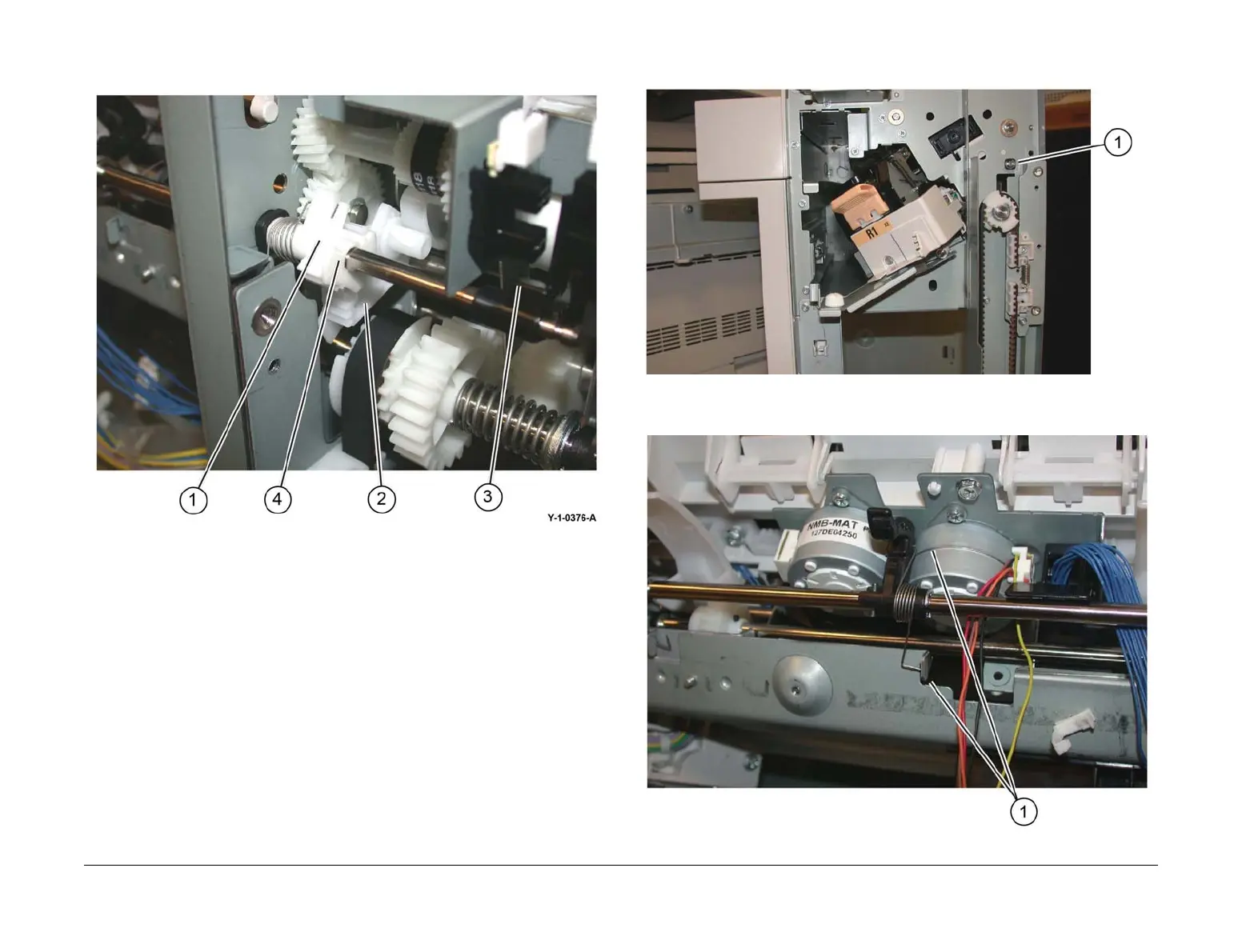

8. Ensure that the shaft gear (1), pinion gear (2) and the stack height sensor flag (3) are
position as shown in Figure 15, then install the E-ring (4).
Figure 15 Gears and stack height sensor flag
9. Install the bushing onto the front end of the set clamp shaft, then install the E-ring (1), Fig-
ure 16.
Figure 16 Bushing and E-ring
10. Ensure that the set clamp holder springs (1) are connected, Figure 17.
Figure 17 Set clamp holder springs
