Xerox VersaLink B7025 Service Manual

April 2017
4-115
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 13.17
Repairs and Adjustments
Launch Issue

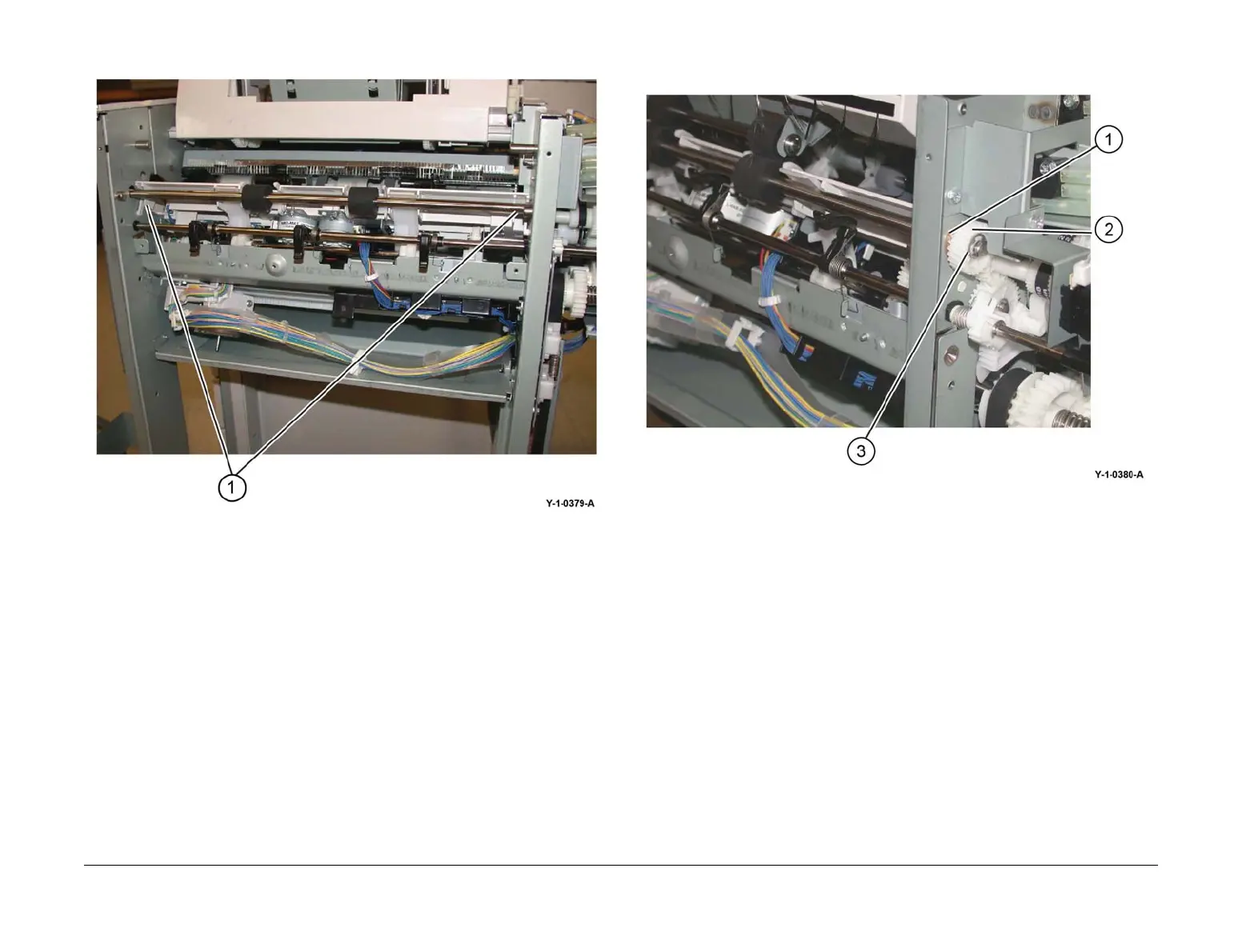

11. Install the eject roll shaft (1) into position in the front and rear frame, Figure 18.
Figure 18 Eject roll shaft installation
12. Install the brass bearing (1), gear (2) and E-ring (3) onto the rear of the eject roll shaft,
Figure 19.
Figure 19 Eject roll shaft rear components

Xerox VersaLink B7025 Specifications

General

Print Speed	Up to 25 ppm
Print Resolution	Up to 1200 x 1200 dpi
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Control Panel	5-inch color touchscreen
Duplex Printing	Standard
Processor	1.05 GHz
Memory	2 GB
Paper Output	250 sheets
Fax Speed	33.6 kbps
Fax Transmission Speed	3 seconds per page
Display	5-inch color touchscreen
Connectivity	Ethernet 10/100/1000 Base-T, High-speed USB 3.0
Functions	Print, Copy, Scan
Media Sizes Supported	A4, A5, A6, B5
Printer Type	Laser
Copy Speed	Up to 25 ppm
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android
