16.4.3. Block diagram

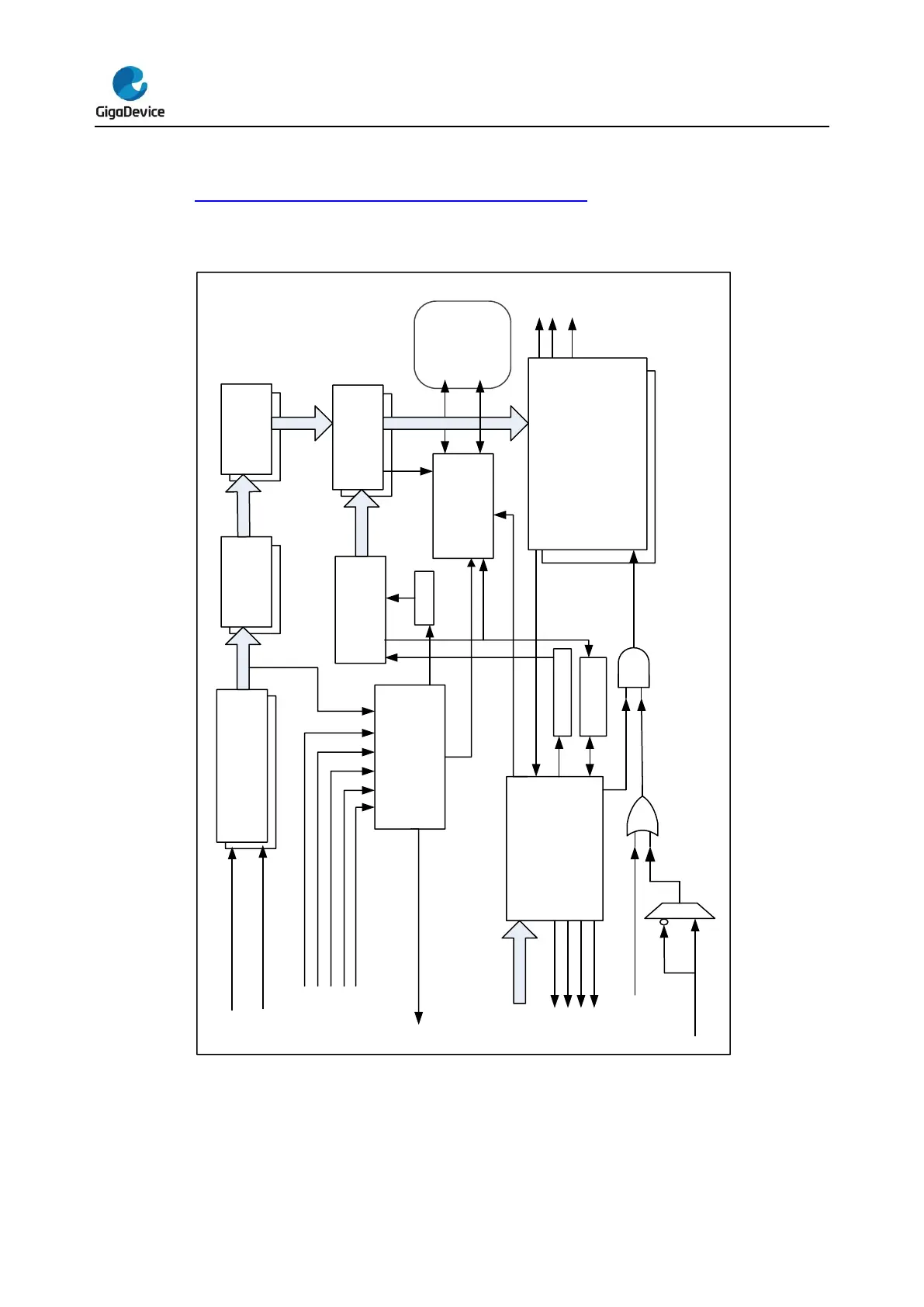

Figure 16-53. General level3 timer block diagram provides details of the internal

configuration of the general level3 timer.

Figure 16-53. General level3 timer block diagram

Input Logic

Synchronizer

&Filter

&Edge Detector

Edge selector

Prescaler

Trigger processor

Trigger Selector

&Counter

Counter

TIMERx

_CHxCV

/Interrupt

Interrupt collector and

controller

APB BUS

CK_TIMER

CH0_IN

CH1_IN

ITI0

ITI1

ITI2

ITI3

CAR

Repeater

Output Logic

generation of outputs signals in

compare

, PWM,and mixed modes

according to

initialization

complementary mode

, software

output control

, deadtime insertion

break input

, output mask

, and

polarity control

BRKEN

BRKIN

CKM

clock monitor

CH0_O

CH0_ON

DMA controller

TIMERx_TRGO

DMA REQ

/ACK

TIMERx_CH0

TIMERx_CH1

TIMERx_TG

TIMERx_UP

Interrupt

break

update

trig/ctrl

cap/com

CH1_O

req en/direct req set

PSC

PSC_CLK

TIMER_CK
