Note: IFRP_OUT has one APB clock delay from TIMER16_CH0.

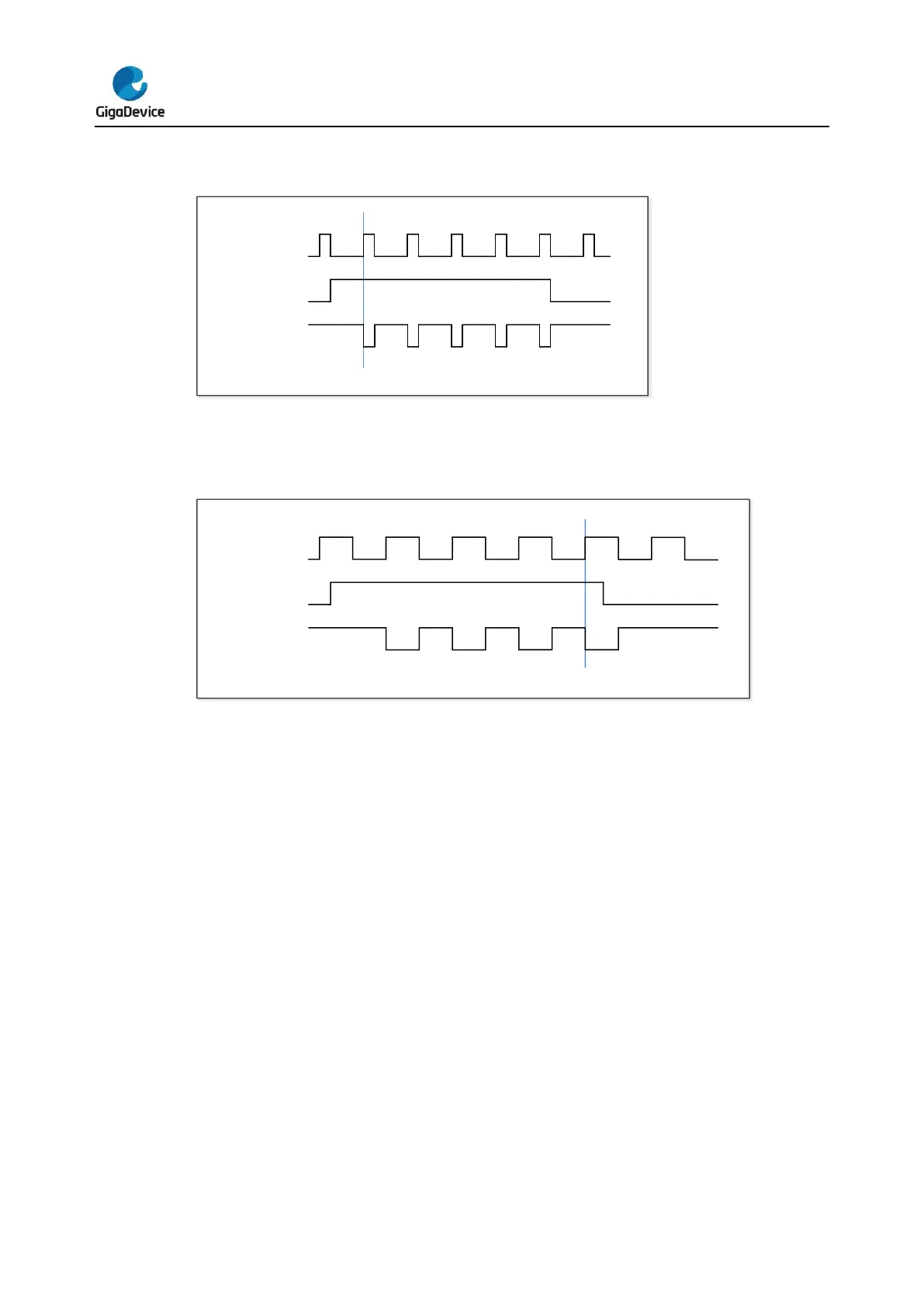

Figure 17-2. IFRP output timechart 2

TIMER16_CH0

IFRP_OUT

TIMER15_CH0

Note: Carrier (TIMER15_CH0)’s duty cycle can be changed, and IFRP_OUT has inverted

relationship with TIMER16_CH0 when TIMER15_CH0 is high.

Figure 17-3. IFRP output timechart 3

TIMER16_CH0

IFRP_OUT

TIMER15_CH0

Note: IFRP_OUT will keep the integrity of TIMER16_CH0, even if evelope signal

(TIMER15_CH0) is no active.
