GigaDevice Semiconductor GD32F3x0 - Figure 16-71. Timing Chart of up Counting Mode, PSC=0;2

To Next Page

To Previous Page

GD32F3x0 User Manual

407

Figure 16-71. Timing chart of up counting mode, PSC=0/2 show some examples of the

counter behavior for different clock prescaler factor when TIMERx_CAR=0x99.

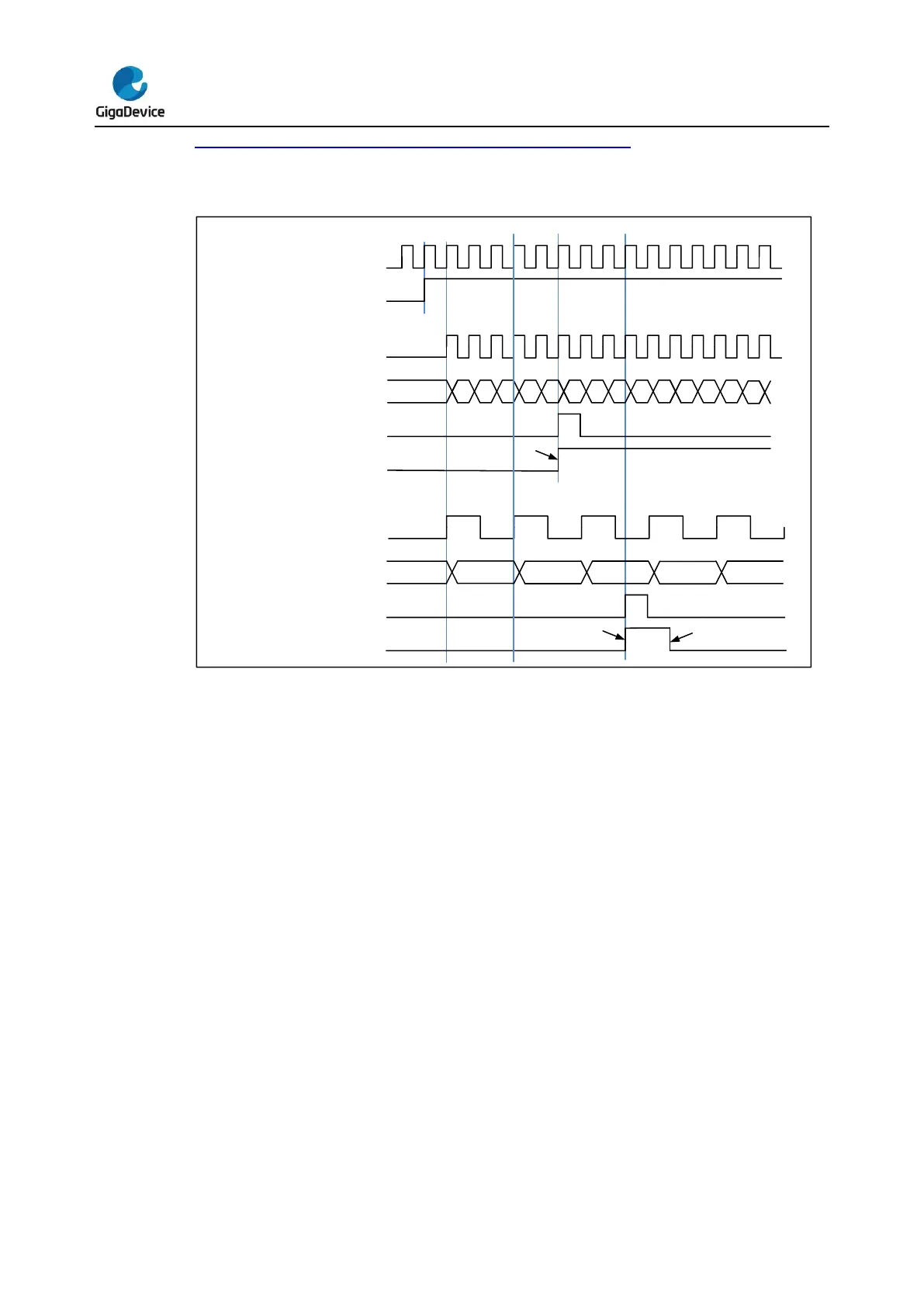

Figure 16-71. Timing chart of up counting mode, PSC=0/2

CEN

PSC_CLK

CNT_REG

94 95 96 97 98 99

0 1 2 3 4

5 6 7

Update event (UPE)

Update interrupt flag (UPIF)

CNT_REG

Update event (UPE)

Update interrupt flag (UPIF)

Hardware set

Software clear

Hardware set

PSC = 0

PSC = 2

TIMER_CK

PSC_CLK
