April 2017
7-121
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
Block Schematic Diagrams (BSDs)
Wiring Data
Launch Issue

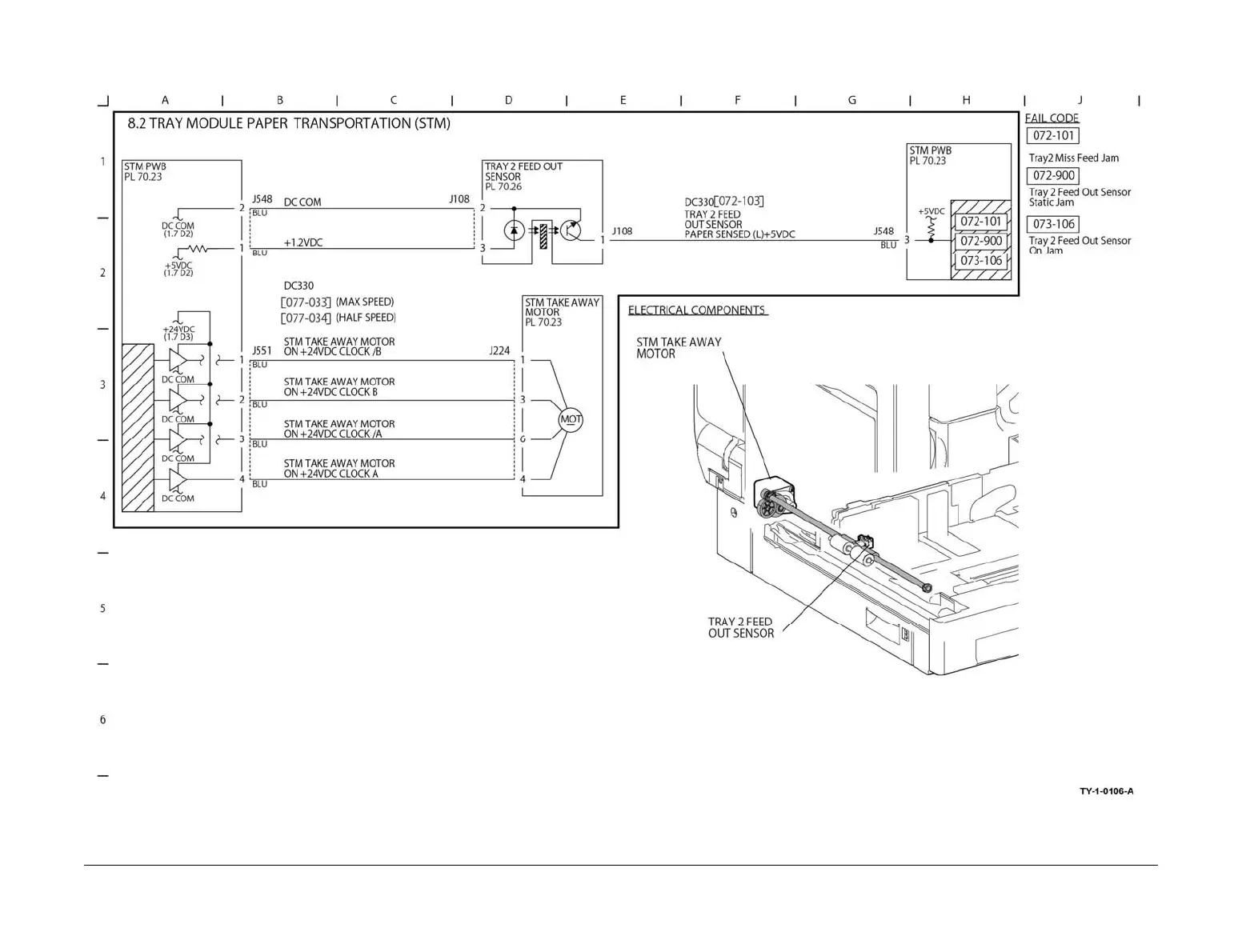

BSD 8.2 Tray Module Paper Transportation (STM)
Figure 65 BSD 8.2
