April 2017
7-122
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
Block Schematic Diagrams (BSDs)
Launch Issue
Wiring Data

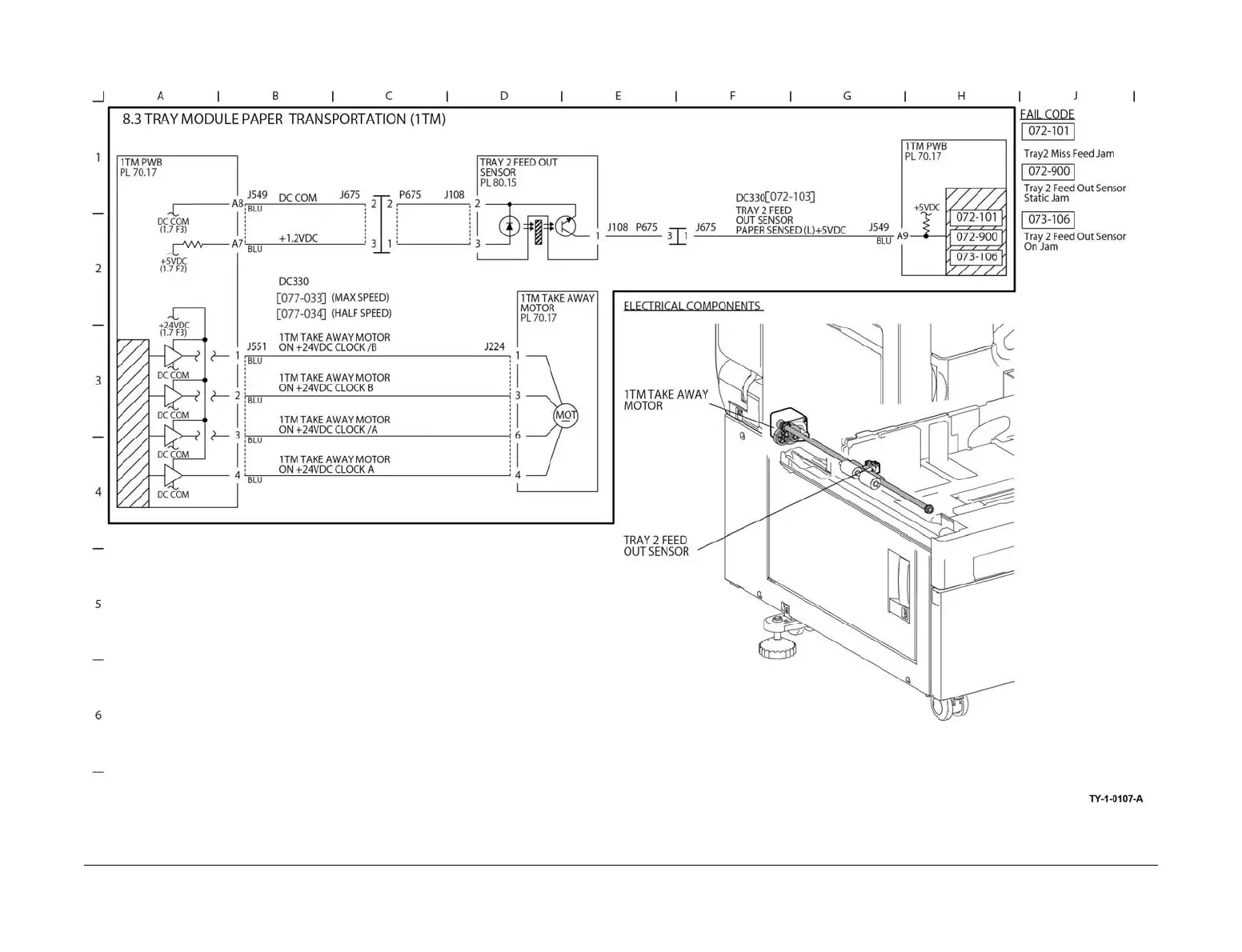

BSD 8.3 Tray Module Paper Transportation (1TM)
Figure 66 BSD 8.3
