MPC5553/MPC5554 Microcontroller Reference Manual, Rev. 5
20-44 Freescale Semiconductor
20.4.4.6.4 DSPI_D Connectivity (MPC5554 and MPC5553)

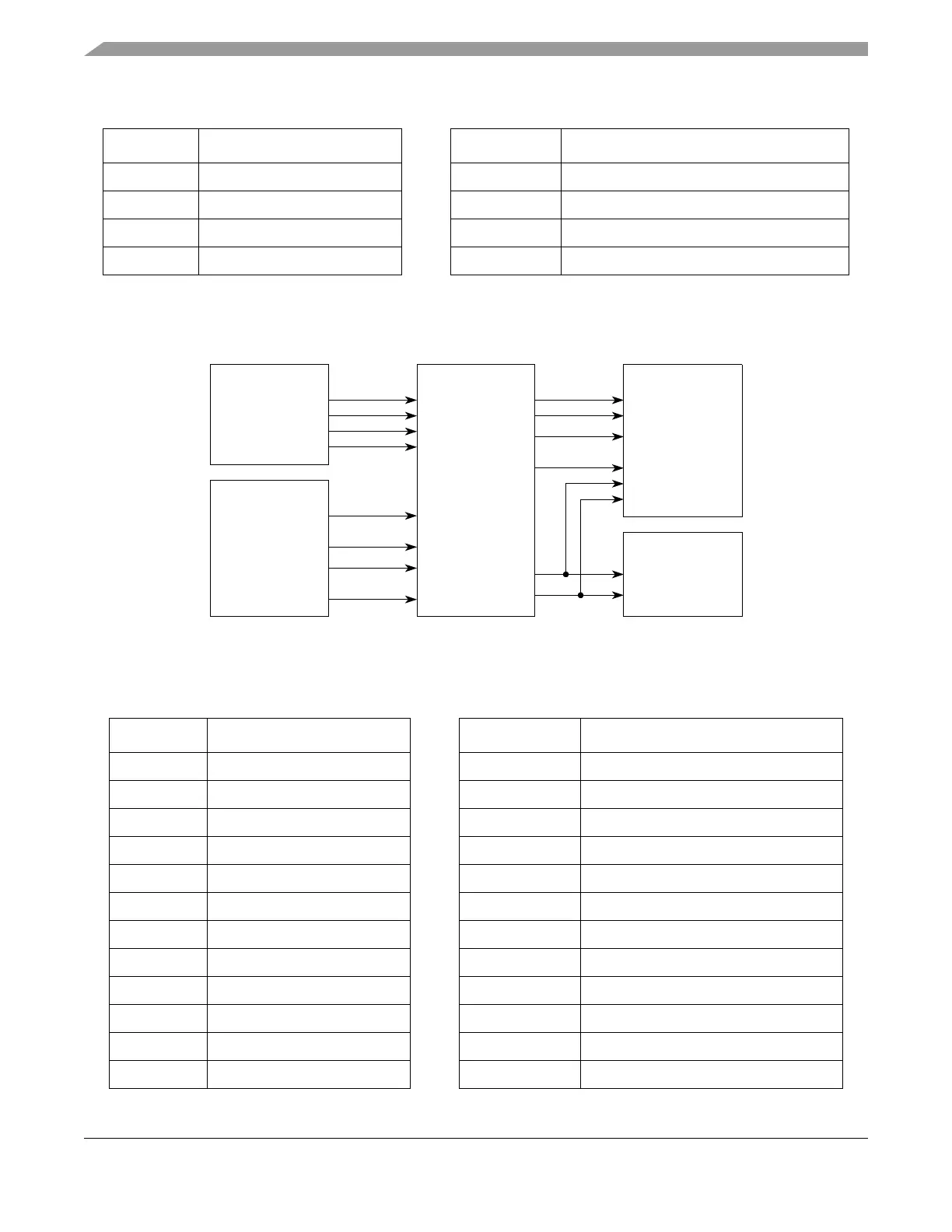

The DSPI_D connects to the eTPU_A, EMIOS and SIU as shown in Figure 20-24.
Figure 20-24. DSPI_D Connectivity
Table 20-22 lists the DSPI_D connections.
12 eTPU_A Output Channel 8 12 Input 2 on IMUX for External IRQ[11]
13 eTPU_A Output Channel 9 13 Input 2 on IMUX for External IRQ[12]
14 eTPU_A Output Channel 10 14 Input 2 on IMUX for External IRQ[13]
15 eTPU_A Output Channel 11 15 Input 2 on IMUX for External IRQ[14]
Table 20-22. DSPI_D Connectivity Table
DSPI_D IN[n] Connected to: DSPI_D OUT[n] Connected to:
0 eTPU_A Output Channel 21 0 Input 3 on IMUX for External IRQ[14]
1 eTPU_A Output Channel 20 1 Input 3 on IMUX for External IRQ15]
2 eTPU_A Output Channel 19 2 N/C
3 eTPU_A Output Channel 18 3 N/C
4 eTPU_A Output Channel 17 4 Input 3 on IMUX for External IRQ[2]
5 eTPU_A Output Channel 16 5 Input 3 on IMUX for External IRQ[3]
6 EMIOS Output Channel 11 6 Input 3 on IMUX for External IRQ[4]
7 EMIOS Output Channel 10 7 Input 3 on IMUX for External IRQ[5]
8 EMIOS Output Channel 13 8 Input 3 on IMUX for External IRQ[6]
9 EMIOS Output Channel 12 9 Input 3 on IMUX for External IRQ[7]
10 eTPU_A Output Channel 29 10 Input 3 on IMUX for External IRQ[8]
11 eTPU_A Output Channel 28 11 Input 3 on IMUX for External IRQ[9]
Table 20-21. DSPI_C Connectivity Table (Continued)
DSPI_C IN[n] Connected to: DSPI_C OUT[n] Connected to:
SIU/IMUX
IN3 IRQ[14]
IN3 IRQ[2]
IN3 IRQ[11]
•
•
IN3 IRQ[15]
IN3 IRQ[12]
IN3 IRQ[13]
DSPI_D
IN 6
IN 7
OUT 0
EMIOS
CH 11
CH 10
CH 13
CH 12
OUT 1
OUT 4
OUT 13
•
•
EMIOS
CH 15
CH 14
OUT 14
OUT 15
eTPU_A
CH 21
CH 16
•
•
CH 29
CH 24
•
•
IN 8
IN 9
•
•
•
•
•
•
IN 0
IN 5
IN 10
IN 15
•
•
•
•
