Location No. Unit
1Power supply unit (PSU)
2XSCF unit (XSCFU)
3PCIe card cassette (PCICS)
4 Crossbar unit (XBU) (*1)
5XSCF DUAL control port
6XSCF BB control port
7 Port for crossbar cable connection
*1 This unit is mounted only in the SPARC M12-2S. In the case of the SPARC M12-2, you can mount the PCICS,
which can house up to three PCIe cards.
2.1.2 Units Accessible From the Rear

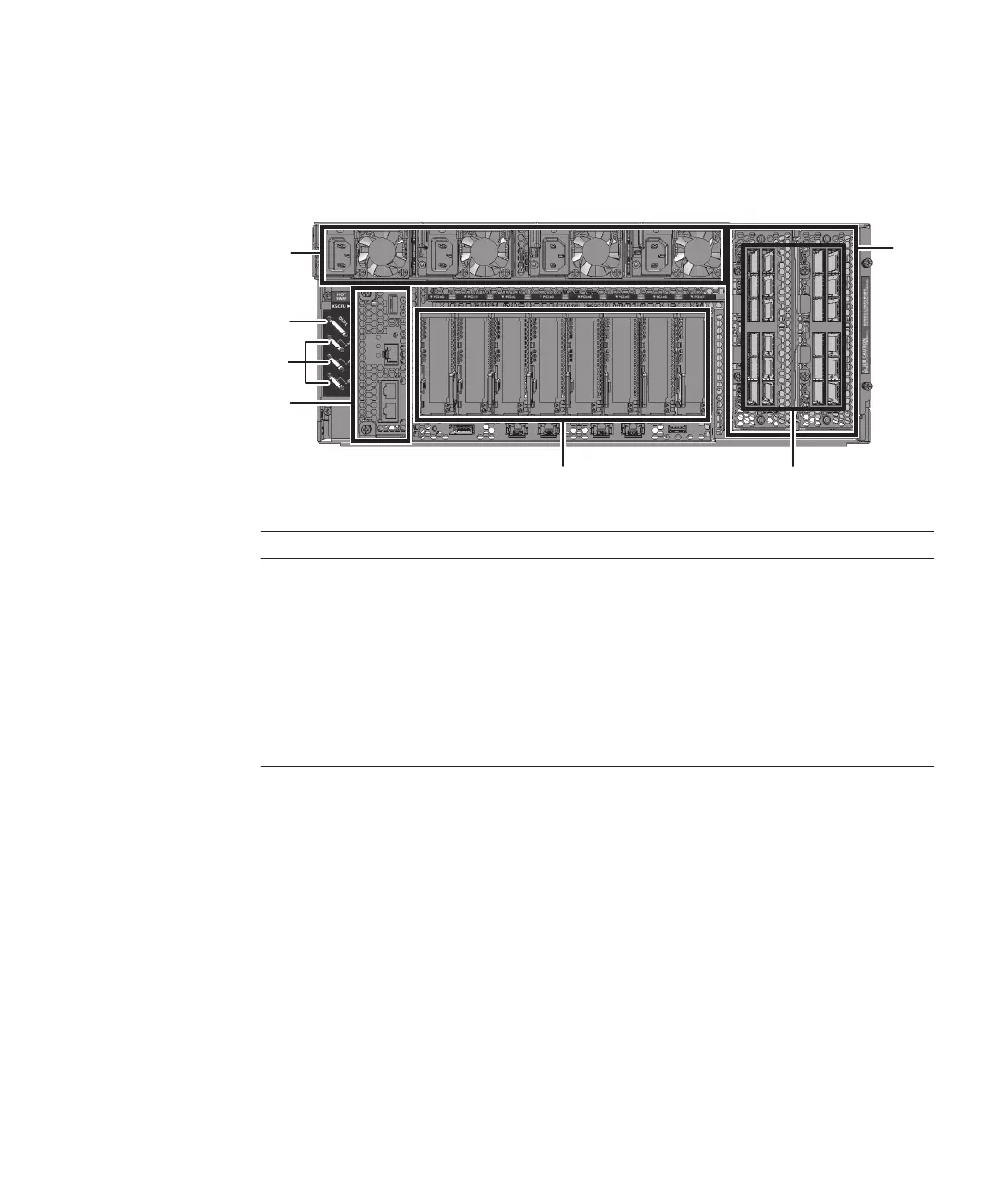

Figure 2-2 shows the types and mounting locations of units accessible from the rear.
Figure 2-2
Units Accessible From the Rear
Shown in parentheses is an abbreviated name. Hereinafter, each component is
represented by its abbreviated name.
Chapter 2 Understanding the System Units 13
