Caution -
When pulling out to remove the crossbar cable, do not hold the cable itself.
Doing so may damage the crossbar cable.

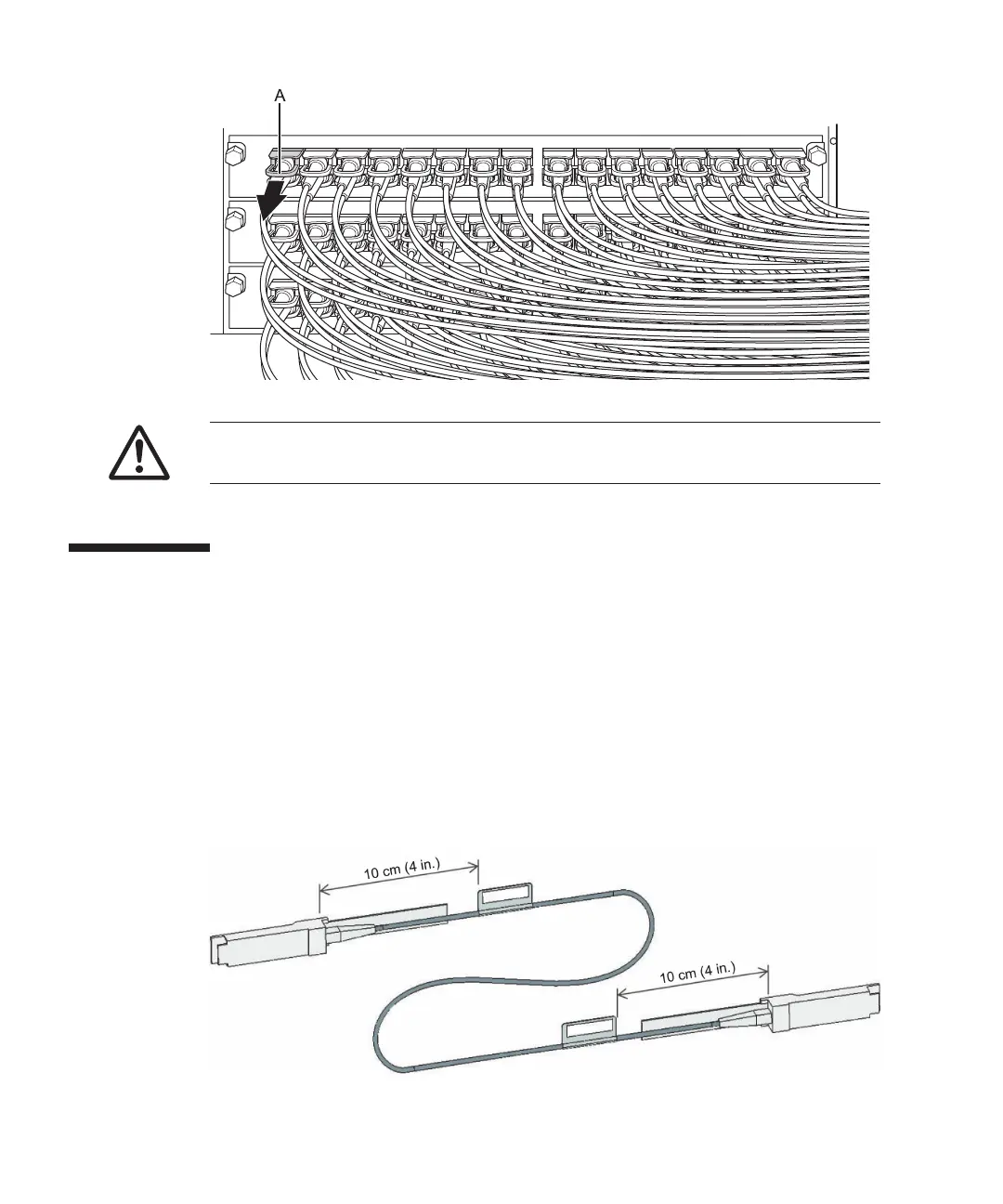

Figure 19-7
Removing the Crossbar Cable (Crossbar Box)
19.4 Installing the Crossbar Cable
This section describes the procedure for connecting the crossbar cable to XBUs.
1.
Affix labels to the crossbar cable.
Affix the labels filled out in step 2 in "19.3 Removing the Crossbar Cable" to the
replacement crossbar cable.
For a crossbar cable (optical), affix them according to Figure 19-8. For a
crossbar
cable (electrical), affix them at the same locations as on the replaced cable.
Figure 19-8
Label Affixing Positions on the Crossbar Cable
Fujitsu SPARC M12-2/M12-2S Service Manual
･
January 2023496
