Fujitsu Oracle SPARC M12-2 User Manual

Note -
Unless otherwise noted, the model used in the figures shown in the following
procedures is the SPARC M12-2S.
Note -
Perform this work with the PCIe card cover and the fixing bracket of the PCIe card
removed from the PCICS.
A
B
Note -
Install a PCIe card filler in the PCICS when you have removed a PCIe card.
12.4 Installing a PCIe Card
This section describes the procedure for installing a PCIe card.
12.4.1 Installing a PCIe Card or PCIe Card Filler
This section describes the procedure for installing a PCIe card or PCIe card filler in
the PCICS.
1.

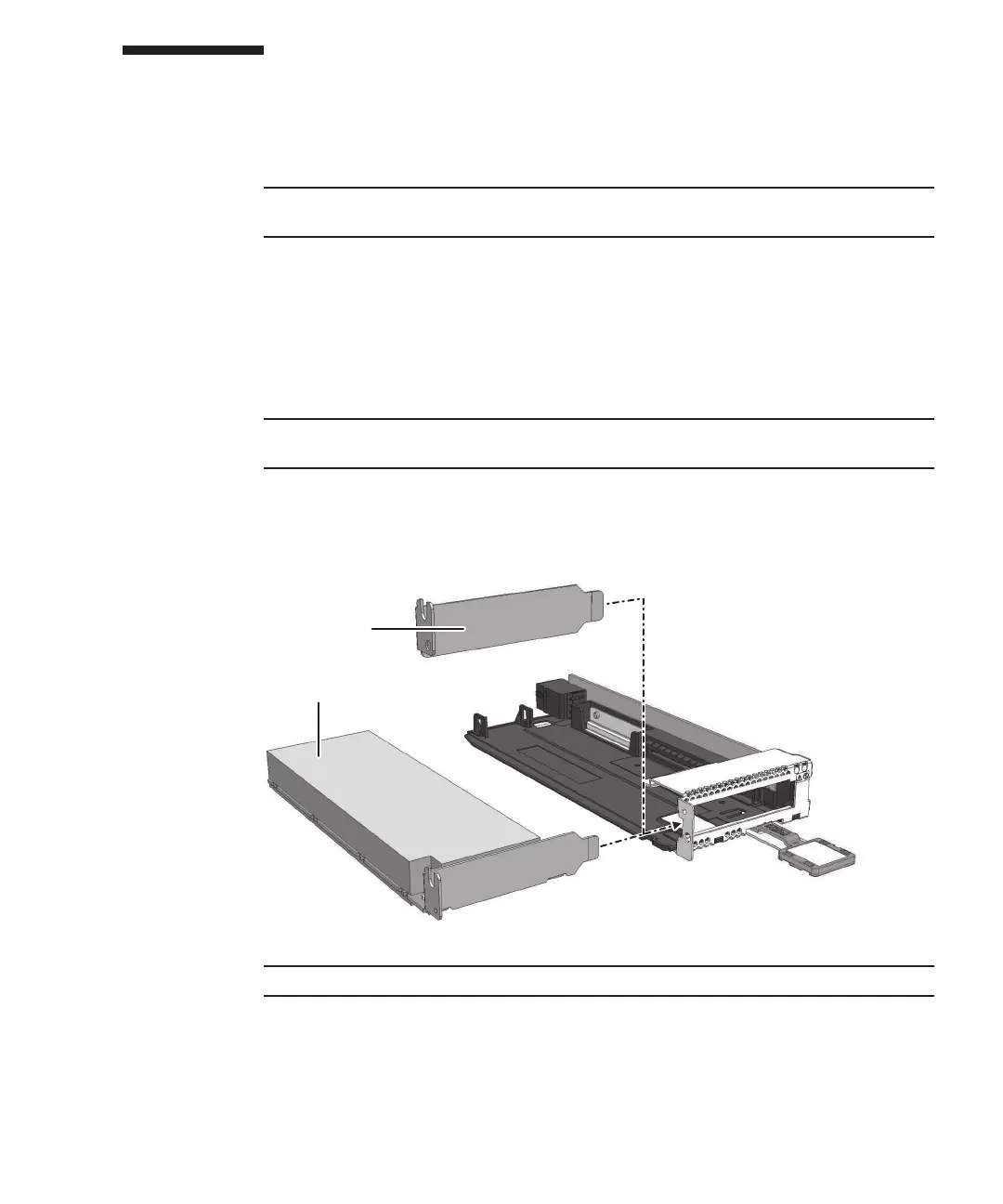

Install the PCIe card (A in Figure 12-9) or the PCIe card filler (B in Figure 12-9).
Figure 12-9
Installing a PCIe Card or PCIe Card Filler
2.
Secure the PCIe card or PCIe
card filler.
Install the fixing bracket (A in Figure 12-10) to the PCICS, and secure it with the
screw.
Chapter 12 Maintaining PCIe Cards 391
