Note -
Confirm that the lock of the PCIe card cover (A in Figure 12-11) firmly fits into the
PCICS.
Note -
Be sure to install the PCIe card cover. This cover serves as a guide when you insert the
PCICS into the server.

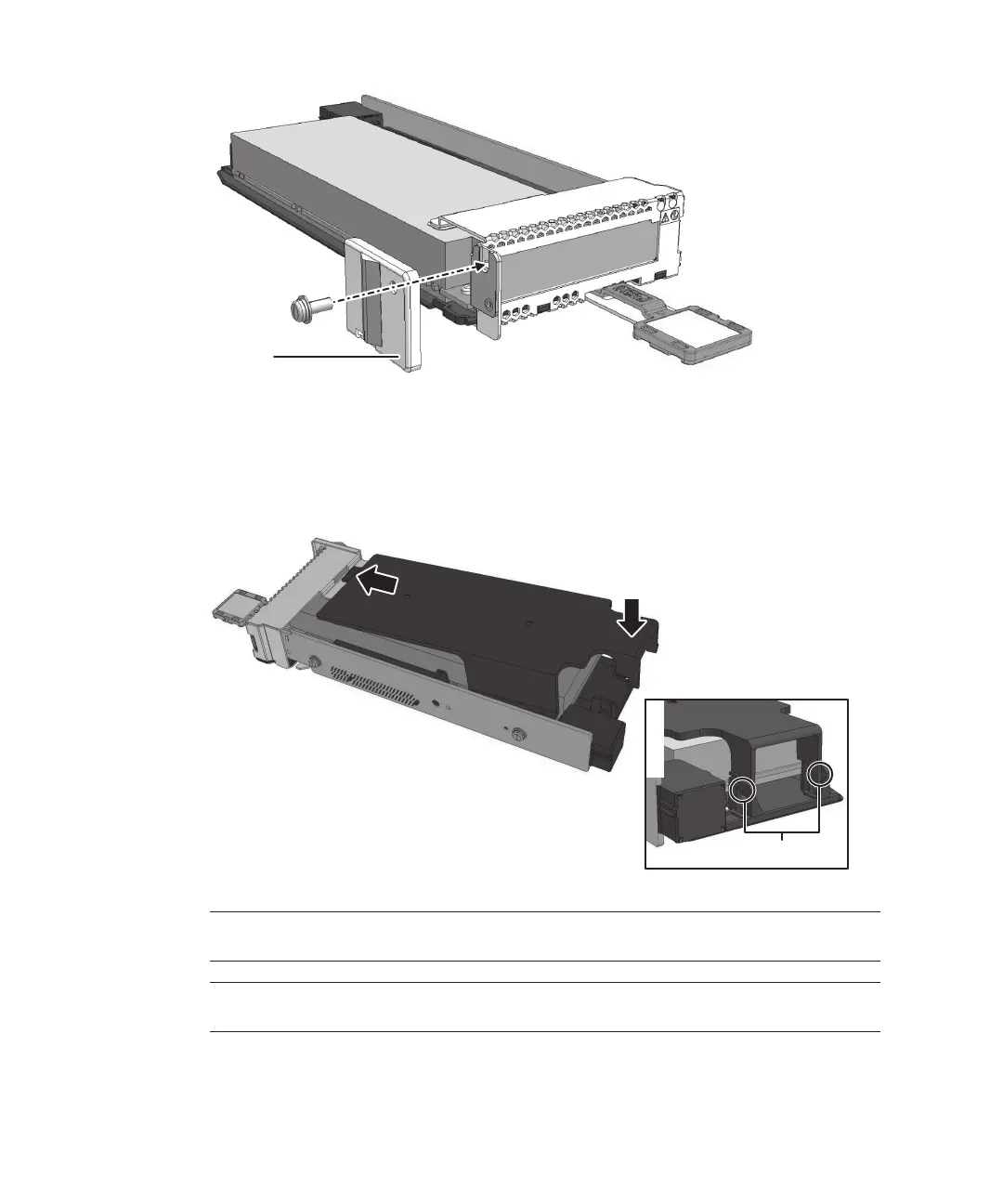

Figure 12-10
Securing the PCIe Card or PCIe Card Filler
3.
Install the PCIe card cover.
Insert the PCIe card cover into the fixing guide of the PCICS (1 in Figure 12-11),
and then push the rear part of the cover (2 in Figure 12-11) to secure it.
Figure 12-11
Installing the
PCIe Card Cover
4.
Install the PCIe card.
Insert the PCICS into the server or PCI expansion unit, with the removal lever of
the PCICS pushed up.
Fujitsu SPARC M12-2/M12-2S Service Manual
･
January 2023392
