Fujitsu Oracle SPARC M12-2 User Manual

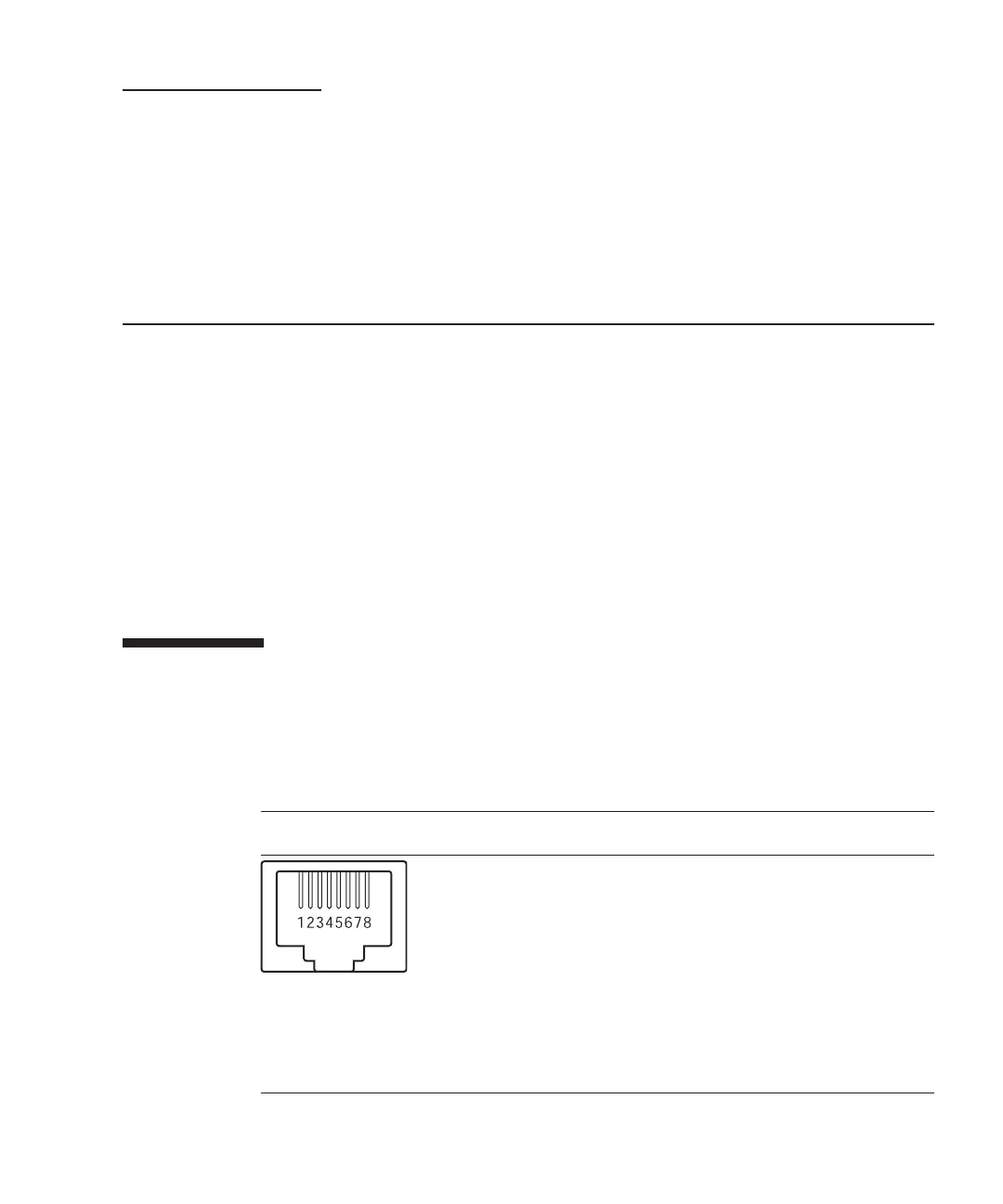

Table B-1
Serial Port
Pin Arrangement Pin
Number
Signal
Name
Input/Output Description
1 RTS Output Transmission request
2 DTR Output Data terminal ready
3 TXD Output Transmitted data
4 GND --- Ground
5 GND --- Ground
6 RXD Input Received data
7 DSR Input Data set ready
8 CTS Input Transmission possible
Appendix B
External Interface Specifications
This appendix provides the specifications of the external interface connectors and
XSCF switch mounted on the SPARC M12-2/M12-2S.
The following external interface connectors are mounted on the SPARC M12-2/
M12-2S:
■
Serial Port
■
USB Port
■
SAS Port
The following XSCF switch is mounted on the SPARC M12-2/M12-2S:
■
RESET Switch
B.1 Serial Port
Table B-1 lists the specifications of the serial port on the SPARC M12-2/M12-2S.
529
