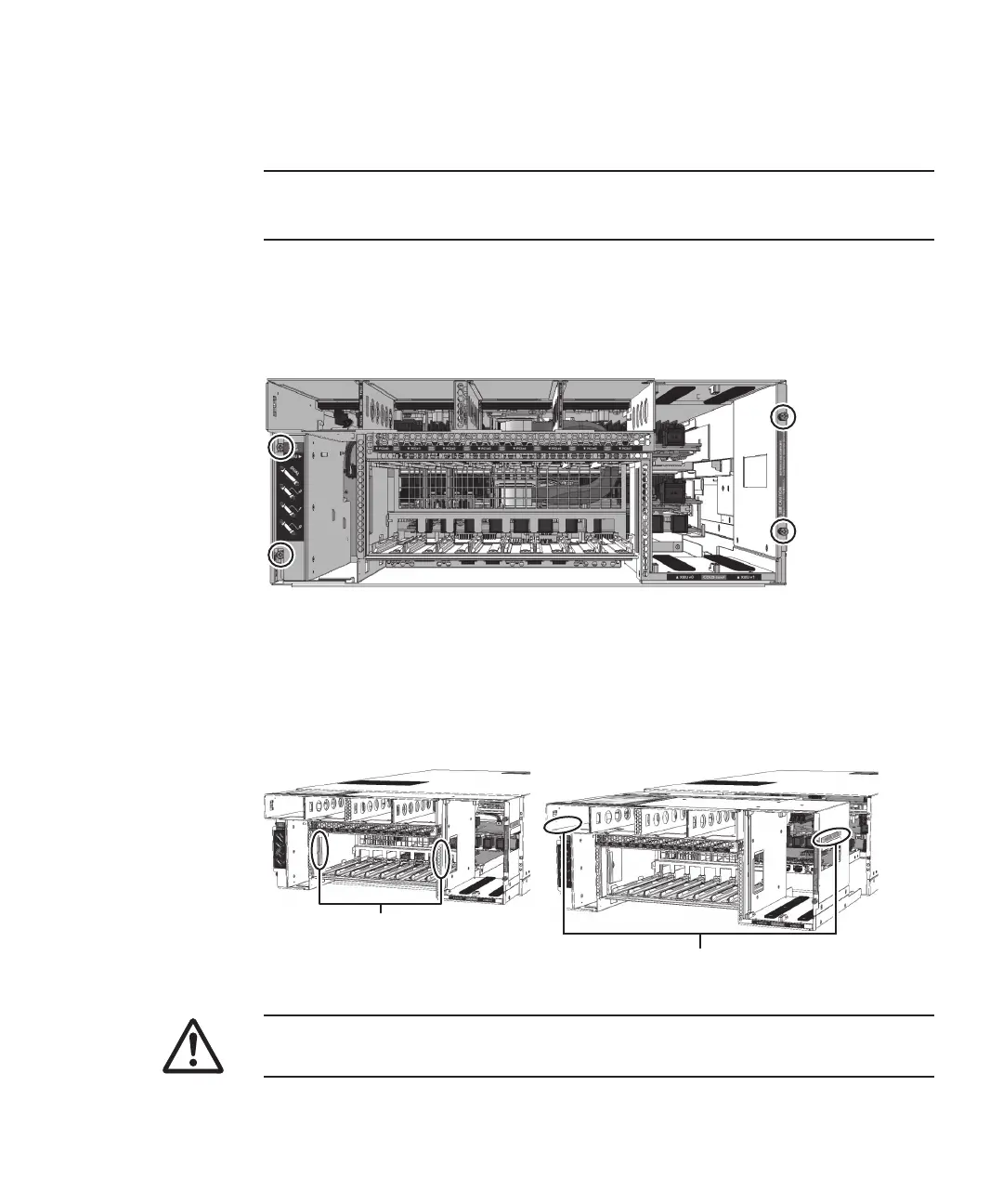

Page #493 background imageLoading...
Page #493 background image
Note
-
The
system
shown
in
the
illustrations
provided
herein
is
the
SPARC
M12-2S.
Unless
otherwise
noted,
the
locations
of
the
fixing
screws
and
other
details
are
common
to
the
SPARC
M12-2.
A
HANDLING POSITION
Caution
-
Remove
the
BPU
slowly.
Applying
great
shock
to
the
server
may
cause
the
CMU
to
fall
and
be
damaged.
18.4.2 Removing
the
BPU
This
section
describes
the
procedure
for
removing
the
BPU
from
the
server.
1.
Enable
the
removal
of
the
BPU
from
the
server.
Loosen
the
four
fixing
screws
of
the
BPU.
Figure
18-12
　　
Fixing
Screws
of
the
BPU
2.
Remove
the
BPU.
Hold
the
BPU
by
the
parts
indicated
in
A
of
Figure
18-13,
and
pull
it
out
from
the
server.
When
you
see
the
"HANDLING
POSITON"
labels
on
the
sides
of
the
BPU,
hold
the
BPU
by
its
sides
and
remove
it
from
the
server.
Figure
18-13
　　
Removing
the
BPU
Chapter
18
　
Maintaining
the
Backplane
Unit
and
PSU
Backplane
Unit 471
