Note -
If the cable support is used, remove the XBU with the cable support lowered.
Note -
Place the removed XBU on the ESD mat to ground any static electricity.
Caution -
When installing an XBU, check the connectors on the CPU memory unit
and XBU beforehand to confirm that none of the pins are bent and that all the pins
are neatly arranged in lines. If the XBU is installed with a bent pin in a connector, the
CPU memory
unit or XBU may be damaged. When installing a unit, insert it carefully
so as not to bend any pins.

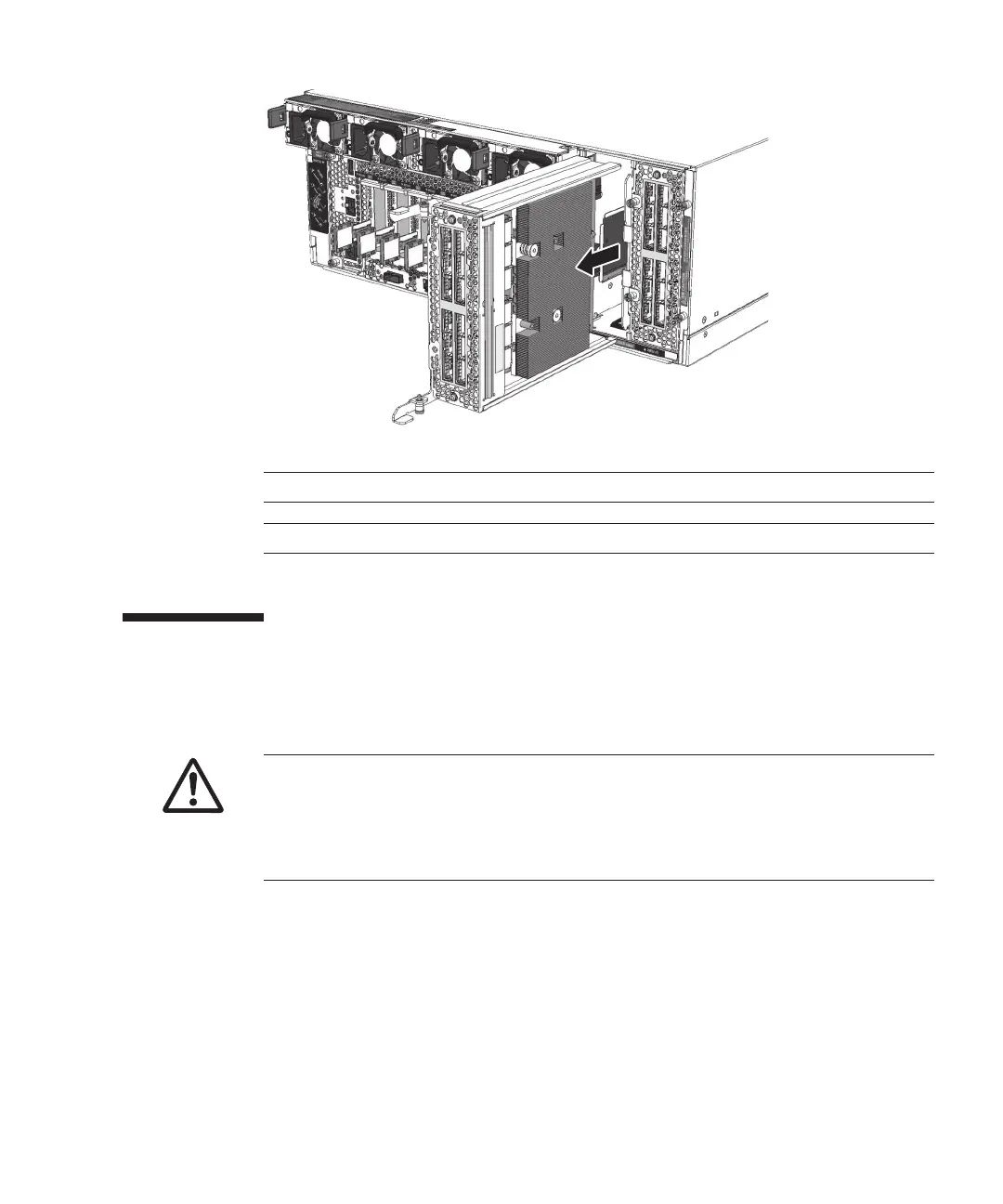

Figure 20-6
Removing the XBU
20.4 Installing an XBU
This section describes the procedure for installing an XBU.
1.
Install the XBU.
Insert the XBU into the server gently to avoid mechanical shock, with the XBU
removal levers open.
Chapter 20 Maintaining the Crossbar Unit 505
